A masterful blend of
elegance and intelligence

7”, PCAP technology, built-in graphic commands
and character set, SPI, I²C and RS-232 interface:
that's all that a modern HMI needs. With easy to use
commands the screen can be set up in memory
(FLASH) or any external µC.

A masterful blend of elegance and intelligence

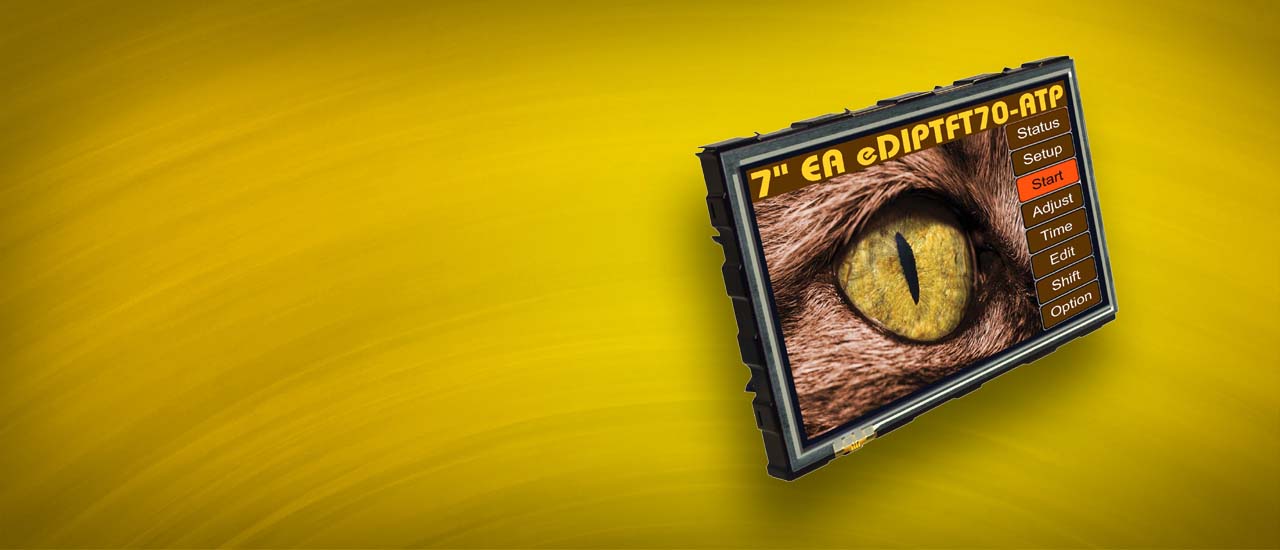

7" HMI with Touch Panel

The EA eDIPTFT70-ATP is the largest member of a HMI family, starting with 3.2". Possible interfaces are one of those 3: SPI, I²C and RS-232. Various built-in fonts and graphics capabilities dramatically reduce the cost of programming. The embedded FLASH memory is able to take typical content and graphic objects.
ELECTRONIC ASSEMBLY provides a version with a resitive and with a capacitive touch panel.

Here's the link to the data sheet. Also a development kit is available. More information for the whole display family.
