LCD/OLED displays (panels) with USB, RS-232, text and graphics

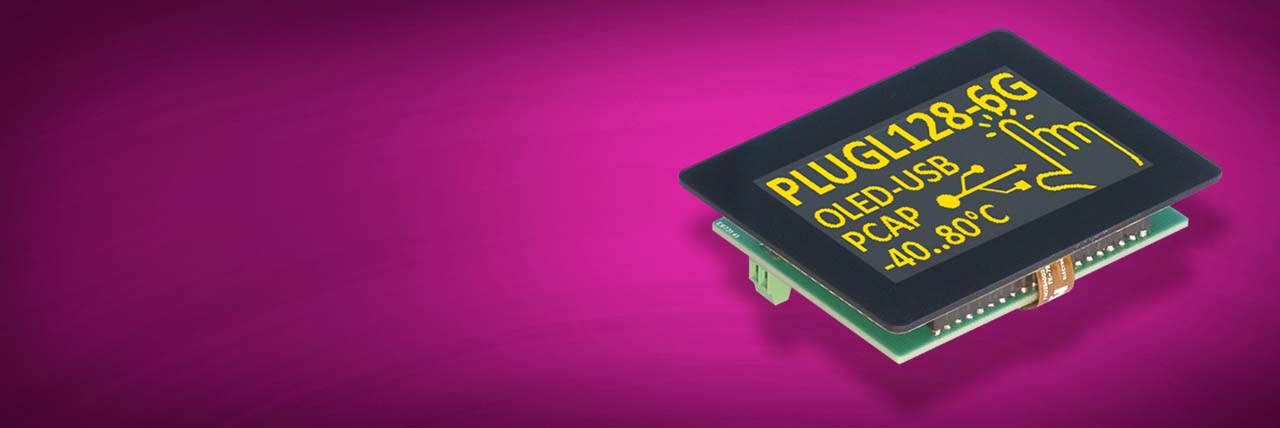

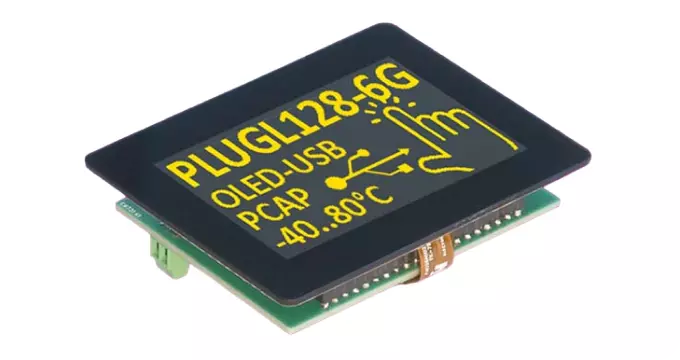

Graphics HMI with USB and OLED Display
Brand new are our graphic capability OLED displays with USB connection and integrated touchpanel. They are good for wholesome control unit or as a display only.
In addition to some serial interfaces like RS-232, SPI and I²C there are some digital and analoge in- and outputs also. With the use of those some simple control actions with fixed display content can be realized. Currently there are 2 sizes available with 2.9" and 82x67x21mm same as 1.7" with 55x54x21mm.
EA PLUGL128-6GTC OLED with USB and ZIFF connector for FPC
EA PLUGL128-6GTCZ OLED with USB and ZIFF incl. screw terminals and 26-pin IDC connector for I/O's
EA PLUGS102-6GTC OLED with USB and ZIFF connector for FPC
EA PLUGS102-6GTCZ OLED with USB and ZIFF incl. screw terminals and 26-pin IDC connector for I/O's
Assembly is very easy with a simple put-into frontal plate and mount via self-adhesive stripes - portrait mode and landscape. Datasheet.

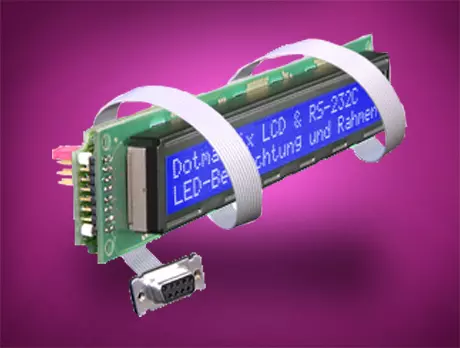

Serial devices with RS-232/RS-422
Our serial devices are a dot-matrix LCD series of products that are ready for operation with a driver and a bezel or a snap-in housing. They are connected to a standard RS-232C interface (or, optionally, an RS-422). The data transmission rate can be set to 300, 1,200, 2,400 or 9,600 bps. All cursor control (line feed etc.) is automatic. The displays are equipped with LED lighting that can be switched off by software means.
All displays except for 8- and 16-line displays are available for a 5V or 9-35V supply.
Addressing: Thanks to selectable addresses, up to 64 displays can be addressed separately at a serial interface (EA OPT-DIP6).
Prices as of 25 items begin at 78.22 euros*). Smaller quantities can also be delivered at short notice. You will find more information in our flyer and the data sheet.
*) Prices quoted are inclusive of 19% sales tax.
Seriel Displays - Table
| Serial displays with RS-232C/RS-422 and LED lighting | ||||||
| Product | Lines x characters | Character height | Module size WxHxD | Viewing area WxH | Including bezel | Power (typically) |
| 1-line displays | ||||||
| EA SER081-92NLED | 1 x 8 | 11.48 mm | 77x54x26 | 56.5x22 | Snap-in housing | 120 mA |
| EA SER081-CNLED | 1 x 8 | 10.8 mm | 84x44x26 | 61x15.8 | 017-2UKE | 30 mA |
| EA SER161-DNLED | 1 x 16 | 6.56 mm | 80x36x27 | 64.5x13.8 | 017-1UKE | 100 mA |
| EA SER161-ENLED | 1 x 16 | 9.66 mm | 122x33x27 | 99x13 | 017-6UKE | 170 mA |
| 2-line displays | ||||||
| EA SER082-CNLED | 2 x 8 | 11.44 mm | 84x44x27.5 | 63x25 | 017-8UKE | 90 mA |
| EA SER162-N3LW blue | 2 x 16 | 5.55 mm | 80x36x27 | 61x15.8 | 017-2UKE | 40 mA |
| EA SER162-CNLED | 2 x 16 | 4.35 mm | 80x36x27 | 64.5x13.8 | 017-1UKE | 90 mA |
| EA SER162-NLED | 2 x 16 | 5.55 mm | 84x44x27 | 61x15.8 | 017-2UKE | 120 mA |
| EA SER162-NLW blue | 2 x 16 | 5.55 mm | 84x44x27 | 64.5x16 | 017-2UKE | 40 mA |
| EA SER162-92NLED | 2 x 16 | 6.68 mm | 77x54x26 | 56.5x22 | Snap-in housing | 120 mA |
| EA SER162-BNLED | 2 x 16 | 9.66 mm | 122x44x29 | 99x24 | 017-12UKE | 360 mA |
| EA SER162-BNLW blue | 2 x 16 | 9.66 mm | 122x44x29 | 99x24 | 017-12UKE | 65 mA |
| EA SER202-NLED | 2 x 20 | 5.55 mm | 116.5x39x29 | 85x18.6 | 017-7UKE | 210 mA |
| EA SER202-NLW blue | 2 x 20 | 5.55 mm | 116.5x39x26 | 85x18.6 | 017-7UKE | 40 mA |
| EA SER202-BHNLED | 2 x 20 | 9.20 mm | 146x43x27 | 123x23 | --- | 270 mA |
| EA SER242-NLED | 2 x 24 | 5.55 mm | 118x36x27 | 93.5x15.8 | 017-14UKE | 150 mA |
| EA SER242-BNLED | 2 x 24 | 9.66 mm | 208x40x29 | 178x23 | --- | 190 mA |
| EA SER402-NLED | 2 x 40 | 5.55 mm | 182x33.5x29 | 154.1x15.3 | 017-4UKE | 150 mA |
| EA SER402-NLW blue | 2 x 40 | 5.55 mm | 182x33.5x27 | 154.1x15.3 | 017-4UKE | 40 mA |
| 4-line displays | ||||||
| EA SER164-NLED | 4 x 16 | 4.75 mm | 87x60x27 | 61.8x25.4 | 017-8UKE | 220 mA |
| EA SER204-92NLED | 4 x 20 | 3.72 mm | 77x54x26 | 56.5x22 | Snap-in housing | 120 mA |
| EA SER204-4NLED | 4 x 20 | 4.03 mm | 80.5x47x29 | 60x22 | --- | 90 mA |
| EA SER204-NLED | 4 x 20 | 4.75 mm | 98x60x29 | 76x25.2 | 017-9UKE | 260 mA |
| EA SER204-NLW blue | 4 x 20 | 4.75 mm | 98x60x29 | 76x25.2 | 017-9UKE | 45 mA |
| EA SER204-BNLED | 4 x 20 | 9.2 mm | 146x62.5x27 | 123x42.5 | 017-25KE | 810 mA |
| EA SER404-HNLED | 4 x 40 | 4.89 mm | 190x54x29 | 147x29.5 | 017-13UKE | 440 mA |
| EA SER404-NLW blue | 4 x 40 | 4.89 mm | 190x54x29 | 147x29.5 | 017-13UKE | 75 mA |
| 8-line displays | ||||||
| EA SER408-NLED | 8 x 40 | 4.2 mm | 180x65x27 | 134x40 | 017-10UKE | 300 mA |
| 16-line displays | ||||||
| EA SER4016-NLED | 16 x 40 | 3.6 mm | 144x104x27 | 114x64 | --- | 700 mA |

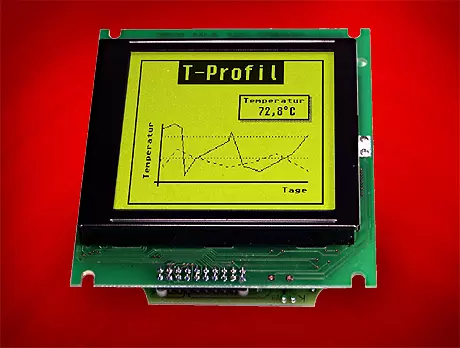

Graphics units EA GE128-7KV24
LCD graphics units are intelligent graphics displays with a serial RS-232 interface. Two or three integrated character sets and a wide range of graphics functions permit the time- and cost-saving use of the latest LCD graphics displays. Apart from a supply voltage of +5V and RS-232 data, no further signals are required. No additional software or special drivers are required for their operation. All the graphics routines are integrated in the display's in-built high-level graphics controller. This permits the creation of a clear and attractive display using only a few commands. All functions are positioned with pixel accuracy by means of x/y coordinates (e.g. draw straight line: G x1 y1 x2 y2).
Prices for all graphics units if you order 25 are between 70.25 and 212.23 euros*). You will find more information in the relevant data sheets in PDF format.
*) Prices quoted are inclusive of 19% sales tax.
Grafic units - Tabelle
| Product | Resolution | Dimensions | Fonts | Option | Notes | Data sheet | Photo |
| EA GE120-5NV24 | 120x32 | 68x39x13 | 2 + zoom | LED lighting | GE120 |  | |
| EA GE128-6N9V24 | 128x64 | 57x46x7.5(15) | 5 + zoom | EL lighting | GE128-69 |  | |
| EA GE128-6N3V24 | 128x64 | 84x60x24 | 3 + zoom | DIP6 | LED lighting | GE128-6 |  |
| EA GE240-6KV24 | 240x64 | 180x65x28 | 3 + zoom | DIP6 | LED lighting | GE6963 |  |
| EA GE240-6KCV24 | 240x64 | 189x65x36 | 3 + zoom | DIP6 | Negative FSTN blue, CFL lighting |  | |
| EA GE240-7KV24 | 240x128 | 144x104x28 | 3 + zoom | DIP6 | LED lighting |  | |
| EA GE240-7KCV24 | 240x128 | 151x104x36 | 3 + zoom | DIP6 | Negative FSTN blue, CFL lighting |  | |
| EA GE240-7K2CV24 | 240x128 | 170x105x36 | 3 + zoom | DIP6 | Negative FSTN black/white,CFL lighting |  |

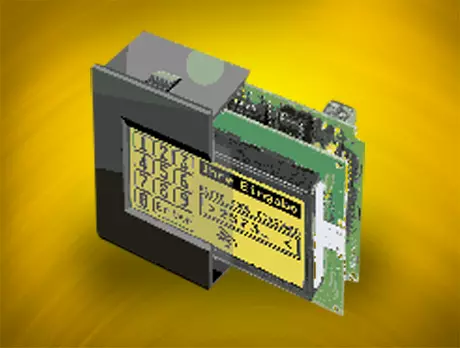

Graphics kits in housing/with front panel - EA KIT160
DISPLAY VISIONS offers 3 LCD graphics displays in different sizes in a snap-in housing: EA KIT120, KIT128 and KIT160. 3 further sizes are available with an anodized mounting panel in black or blue: EA KIT240-6, KIT240-7 and KIT320-8. They are controlled via either an RS-232 or an RS-422 interface.
A range of integrated fonts and graphics commands make it easy to program these displays: All functions are programmed with pixel accuracy by means of x/y coordinates (e.g. draw straight line: ESC G x1 y1 x2 y2). All displays are also available with an integrated touch panel: This allows you to make entries or change the contents of the screen by touching it.
Smaller quantities can also be delivered at short notice. You will find more information on the touch panel versions in our internet page "TOUCH"
FAQ - Questions and Answers About OLED Displays with USB
Questions and brief, easy-to-understand answers about OLED displays with USB
What interfaces do the PLUG Series OLED displays offer?
The PLUG Series OLED displays offer a wide range of interfaces, including USB, RS-232, SPI, and I²C. These interfaces enable flexible integration into various systems. Additionally, digital and analog inputs and outputs are available to support simple control tasks. This variety of interfaces makes the displays particularly versatile and adaptable for different applications. The USB interface is especially useful for easy connection to modern computers and devices. Overall, the interfaces of the PLUG series offer a high degree of flexibility for developers and engineers.
What sizes are available for the PLUG Series OLED displays?
The PLUG series OLED displays are available in two sizes: 2.9 inches and 1.7 inches. The 2.9-inch version measures 82x67x21mm, while the 1.7-inch version measures 55x54x21mm. These sizes offer a good balance between a compact design and sufficient display area for various applications. Both sizes are equipped with a USB port and a ZIFF connector, which facilitates integration into existing systems. The different sizes allow the displays to be used in various applications and enclosures. This flexibility makes the PLUG series ideal for a wide range of projects.
How are the PLUG Series OLED displays installed?
Installing the PLUG Series OLED displays is extremely simple and is done by gluing them to the front of the front panel. This method allows for quick and easy installation, which can be done in both horizontal and vertical orientations. Thanks to this flexible mounting option, the displays can be integrated into various applications and enclosures. The simple installation saves time and effort and makes the displays particularly user-friendly. This feature is especially beneficial for developers looking for a fast and efficient solution. Overall, the mounting method of the PLUG series offers a high degree of flexibility and user-friendliness.
What features do the PLUG Series OLED displays offer?
The OLED displays in the PLUG series offer a wide range of features that make them a powerful solution for various applications. They can be used both as a full-featured control unit and as a display-only device. The displays feature integrated touch panels that enable intuitive operation. In addition, they are equipped with various interfaces that allow for easy integration into existing systems. The displays are also capable of performing simple control tasks, making them particularly versatile. These features make the PLUG series an ideal choice for developers and engineers looking for a flexible and powerful display solution.
What advantages do the PLUG Series OLED displays offer compared to other displays?
The OLED displays in the PLUG series offer several advantages over other displays. One of the main advantages is the built-in USB interface, which enables easy connection to modern devices. In addition, the displays are equipped with various serial interfaces such as RS-232, SPI, and I²C, offering high flexibility during integration. The integrated touch panels enable intuitive operation and eliminate the need for additional input devices. Furthermore, the displays are available in two compact sizes, allowing for easy integration into various applications. These advantages make the PLUG series an attractive choice for developers looking for a versatile and user-friendly display solution.
Why is DISPLAY VISIONS the best choice for OLED displays with USB?
DISPLAY VISIONS is the best choice for OLED displays with USB, as the company offers a wide range of high-quality and versatile display solutions. The PLUG series from DISPLAY VISIONS stands out for its integrated USB interfaces and touch panels, which enable simple and intuitive operation. In addition, DISPLAY VISIONS offers comprehensive support and consultation to ensure that customers receive the best possible solution for their specific needs. The displays are available in various sizes and offer high flexibility for integration into different applications. With its many years of experience and commitment to quality, DISPLAY VISIONS is a trusted partner for developers and engineers seeking reliable and innovative display solutions.
