LCD dot matrix with HD44780 for 8-bit data bus (STN/FSTN)
Character Displays
The dotmatrix LCDs offered here are equipped with the controller HD44780 or compatible; they provide a complete character set and are configured for operation on the 4- or 8-bit data bus of a processor system. As accessories for dotmatrix LCDs we provide suitable bezels and RS-232 interfaces.
We have a large stock and can thus deliver many models immediately from our stock in Gilching near Munich. As a special we do have displays with I2C bus and SPI interface also.
The following display sizes (lines x characters) are available as standard modules (further information in tabular form):
[ 1x8 | 1x16 | 1x20 | 2x8 | 2x12 | 2x16 | 2x20 | 2x24 | 2x40 | 4x12 | 4x16 | 4x20 | 4x40 ]
DOG-Series
- Do you already know our DOG-Series?
- super flat and
- perfect for 3.3V
- low-power
- also with serial I²C or SPI interface
- Chip-on-glass technology
- 1x8, 2x16, 3x16, 4x10, 4x16, 4x20
- also as graphic displays
Read more about it here.

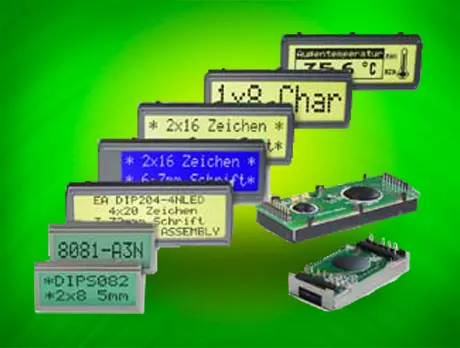

DIP Modules
- effective viewing area / no pcb border
- outline dimensions 68(75)x27x11 mm
- no more mounting holes
- simply solder into motherboard
- with LED backlight
- competitive in price and availability
- incl. standard controller
- 4x pin. compatible:
1x8 / 11.48 mm Data Sheet EA DIP081 (yellow/green)
2x16 / 6.68 mm Data Sheet EA DIP162 (yellow/green, blue and black/white)
4x20 / 3.73 mm Data Sheet EA DIP203 (yellow/green, blue and black/white)
122x32 / Graphics Data Sheet EA DIP122 (yellow/green, blue)
The series with RS-232 / RS-422
Fixed-text displays for 64 messages

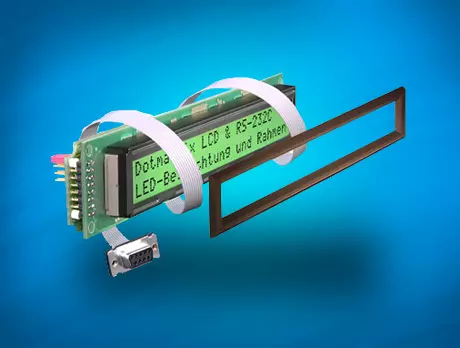

The series we are talking about here is an LCD dotmatrix series complete with a control interface and bezel. The LCD module, which includes an RS-232 interface, is delivered as a unit. It is connected to a standard RS-232C interface (or, alternatively, an RS-422).
You will find more information on this on the rs232 page.
Accessories
- Bezels
All bezels are available with an anti-glare screen. The bezels are simply inserted into the frontal cutout. This gives your unit a professional look, and at the same time the anti-glare screen prevents the integrated display from being touched or getting dirty. The anti-glare screen makes the display considerably easier to read. Please refer to the tables for dotmatrix modules for the order numbers of the various bezels. You will find more information on bezels in our data sheet, which is available in PDF format, or on our accessories page. - Inverters for CFL- and EL-foil illumination
In contrast to LED illumination, CFL and EL illumination requires a series-connected electronic circuit. This electronic circuit, which is known as an CFL inverter and EL inverter, generates alternating voltage of some hundreds Volt from +5V DC. These inverters have 3-5 pins that are soldered into a printed circuit board. The type required depends on the illumination surface. You will find more information on our accessories page, our news page or in our data sheet, which is available in PDF format. - Cables and connectros
We accept orders of one or more units of the following items for your display: one- or two-row connectors and cables with a grid of 1.27 or 2.54 mm with a female connector (one- or two-row) crimped on, with different numbers of pins and a wide range of lengths.
FAQ - Questions and Answers About Dot Matrix LCD Displays
Questions and brief, easy-to-understand answers about dot-matrix LCD displays
What are the advantages of dot-matrix LCDs with an HD44780 controller?
Dot-matrix LCDs with an HD44780 controller offer easy integration into existing systems, as they can be operated with both 4-bit and 8-bit data buses. The integrated character set enables straightforward text display. These displays are available in various sizes, making them highly versatile. They are also compatible with a wide range of accessories, such as front frames and RS-232 interfaces. Availability directly from stock ensures fast delivery times, making them suitable as replacement parts for older devices from third-party manufacturers.
What interfaces are available for dot-matrix LCDs?
Dot-matrix LCDs are available with various interfaces, including RS-232, I2C bus, and SPI bus. These interfaces enable flexible connectivity to different processor systems. The RS-232 interface is particularly suitable for serial connections, while I2C and SPI can be used for fast data transfers in embedded systems. This variety of interfaces makes the displays particularly adaptable to various applications. Integrating the interfaces is straightforward and supports efficient communication between the display and the control unit.
What sizes and colors are available for dot-matrix LCDs?
Dot-matrix LCDs are available in a wide range of sizes, including formats such as 1x8, 2x16, and 4x20. This variety makes it possible to select the right display for specific application requirements. The displays are available in yellow/green, blue, and black-and-white, allowing for adaptation to the design and readability of the application. The various sizes and colors offer flexibility in the design of user interfaces. Additionally, the displays are available with or without backlighting to optimize visibility under different lighting conditions.
What accessories are available for dot-matrix LCDs?
Various accessories are available for dot-matrix LCDs, including front bezels with anti-glare screens and pin headers. The front bezels enhance the design and protect the display from contact and dirt. Anti-glare screens improve readability by minimizing reflections. Pin headers and cables in various pitch sizes allow for easy connection of the displays to other components. These accessories expand the displays’ range of applications and facilitate integration into existing systems.
Why is DISPLAY VISIONS the best choice for dot-matrix LCDs?
DISPLAY VISIONS offers a wide range of dot-matrix LCDs with various interfaces and sizes, all available directly from stock. High availability and fast delivery times make DISPLAY VISIONS a reliable partner. In addition, the company provides comprehensive advice and support in selecting the right display. The quality of the products and the variety of accessories allow for optimal adaptation to specific requirements. With an experienced team and a large inventory, DISPLAY VISIONS is ideally positioned to meet individual customer needs.
