Compact PLC with Satellite Displays 2"-10"

Compact PLC w. Satellite Displays

1x Core for Top-hat rail

plus brilliant Satellite Displays

1,000 cd/m² (typ.)

1.5" up to 10.1"

Modern, compact small PLC control unit with touch display

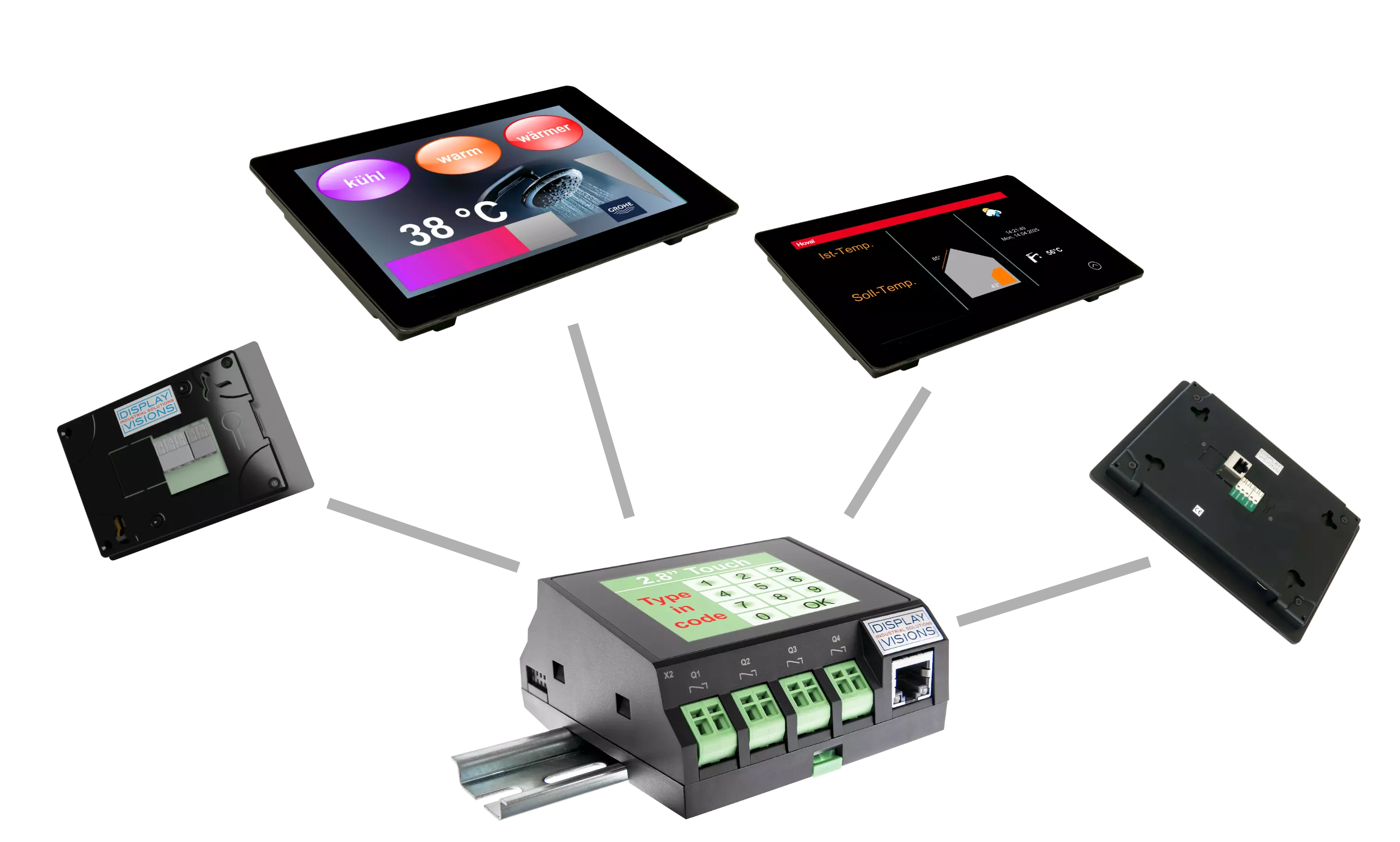

PLC - Small Control Unit with up to 50 satellite displays

Control and visualization. The new PLC series expands the classic small control unit in the control cabinet with an integrated color display inclusive touch. In addition, this solution enables visualization on up to 50 satellite displays. There, measured values can be displayed and settings can be made by touch. Thanks to edge computing, even complex and visually appealing screen layouts can be easily implemented.

Small control unit with IPS display and touch, relay, analogue, RS232, Ethernet, WiFi

WiFi, RS-485, USB, Ethernet

Program your control tasks via USB and connect the desired satellite displays via RS-485 or wirelessly via WiFi/WLAN.
The basic version of the PLC-Core for DIN rail mounting offers 8 digital inputs, 4 relay outputs, 4 analog inputs (0-10V or 4-20mA) and one RS-232. Including Real-Time-Clock. The supply voltage is 12-24V.
In the control unit (core) there is a high quality TFT display with touch panel already to monitor the most important parameters.

Here you will find the two data sheets for hardware and software:

Data sheet for compact plc hardware with display Programming guide for compact plc with display and touch



Arbitrarily expandable

Different requirements need different displays. Choose from 7 different sizes - as a recessed solution, for wall mounting or as a U-plaster solution. All displays were developed in Germany. The support includes at any time a direct contact person from the development incl. assistance in programming.

  Core 2.8“ 2“ 2.8“ 3.5“ 4.3“ 5“ 7“ 10.1“
Resolution 320x240 320x240 320x240 480x320 480x272 800x480 1024x600 1280x800 Pixel
Dimension   65x43 84x58 100x65 114x84 136x96 190x125 260x185 mm
DIN-rail ja   ja
U-Plaster mount   ja
Wallmount         ja
Integration   ja ja ja ja ja ja ja
Temp. Range -20..+70 °C
Supply Voltage 12-24V V
Display IPS with PCAP, optically bonded IPS with PCAP



Small control unit (PLC) with display and touchscreen as well as additional satellite displays (remote via LAN, WiFi, 2-wire)

Individually networked

All process parameters are automatically synchronized with the satellite displays. This means that displaying current values can be flexibly implemented on one display, as well as individual settings for process parameters at another location. Each display follows its individual purpose: for service, work preparation, monitoring or management. Satellite displays are available in different sizes and designs.

PLCDesigner - The Windows Quick Programmer Tool

All touch and display functions as well as animations are freely programmable via the free Windows tool "PLCDesigner". Using a graphical WYSIWYG editor, individual pages can be created: here a background, there a logo and text, further a measured value, a slider, etc.

The tool also includes a simulator with which the result is immediately visible on the PC; including functionality via touch and the inputs and outputs on the core. Manage all satellites and connections in your project clearly. Download:

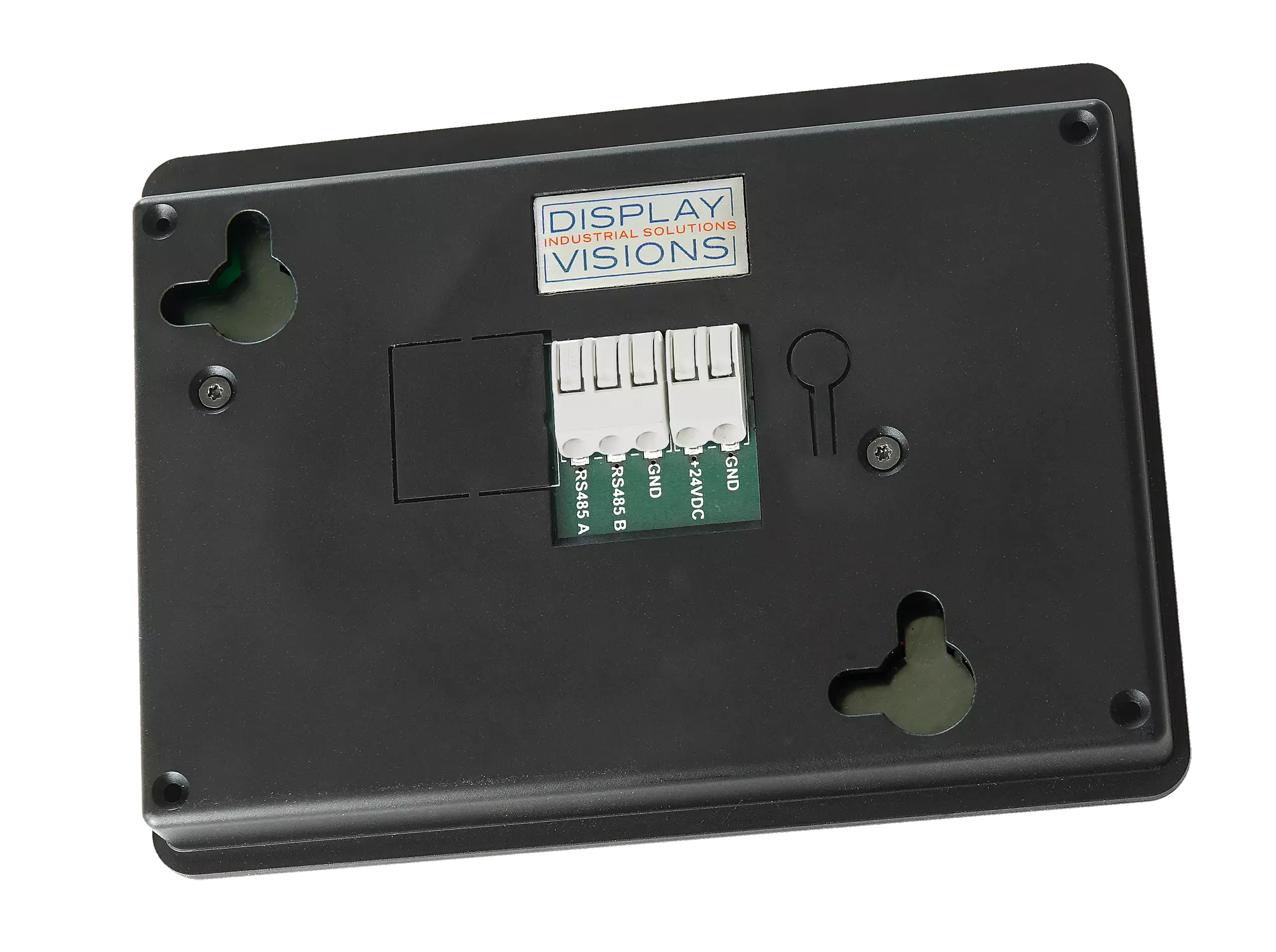

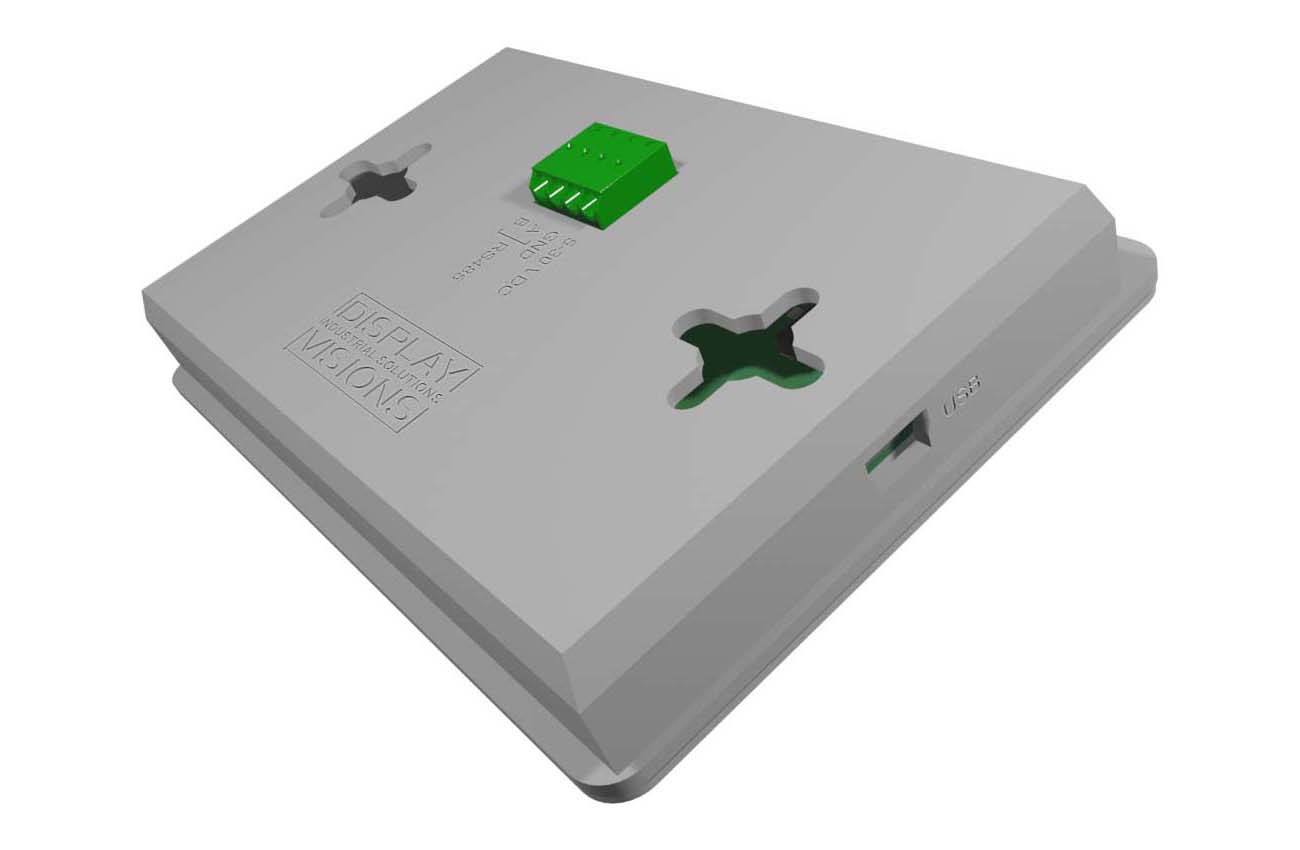

The 4.3" satellite display with touch for wall mounting or front installation, view from rear side

Wall mounting, DIN rail, flush-mounting, integration

Different locations require different housings. Therefore DISPLAY VISIONS offers all sizes as a built-in solution for seamless integration into your device. Alternatively, solutions with a housing for surface mounting are also planned. The small 2" display is also available for flush mounting (U-plaster).
In each case, the front is made of scratch-resistant glass. Thanks to a touch-sensitive surface, direct and intuitive interactions are possible. The following formats are planned: 2", 2.8", 3.5", 4.3", 5", 7", 10.1". All brilliant displays with 1,000 cd/m² in outstanding IPS technology for an all-round viewing angle and stable colors.

Buy compact plc incl. touch at our webshop
