Modbus HMI control panels

EA HMI Serie



  • 2,8" - 12" with touch
  • Modbus RTU/TCP
  • RS-485, LAN, Wi-Fi
  • Brilliant 1,000 cd/m²
  • WYSIWYG Tool (f.o.c.)
WiFi LAN / TCP/IP RS 485

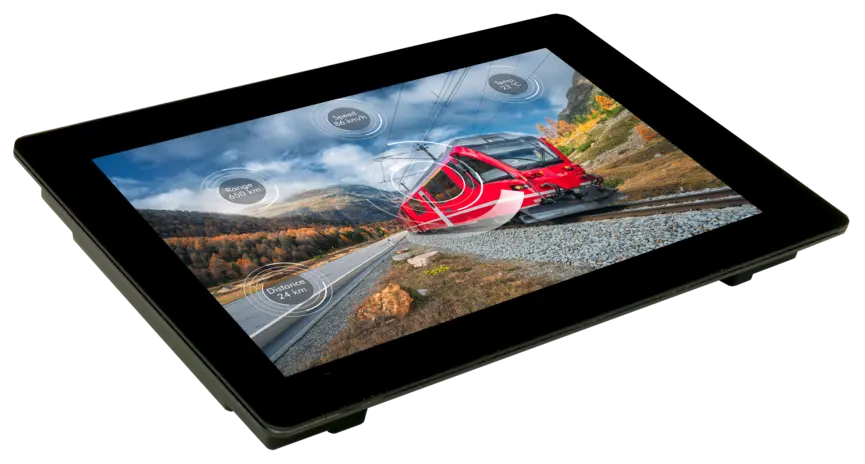

Modbus control units (2.8", 4.3", 7" and 12") with touchscreen functionality and glass surface

2.8" - 4.3" - 7" - 10" - 12" for Modbus RTU / TCP

Ready-to-use display (remote): brilliant, bright and with touch panel. With free WYSIWYG tool "HMI Designer" to create your individual screen pages via drag and drop. Link the corresponding Modbus registers with the various objects on the display and automatically receive the correct data on display.

The display supports communication with over 20 different PLC models, including Siemens Logo! (TCP), S7-200, S7-1200/1500, S7-300/400, Allen Bradley, Mitsubishi FX, Beckhoff, easyE4, Rockwell, Finder OPTA, Arduino, Schneider Electric Modicon, Teknic ClearCore and many more.

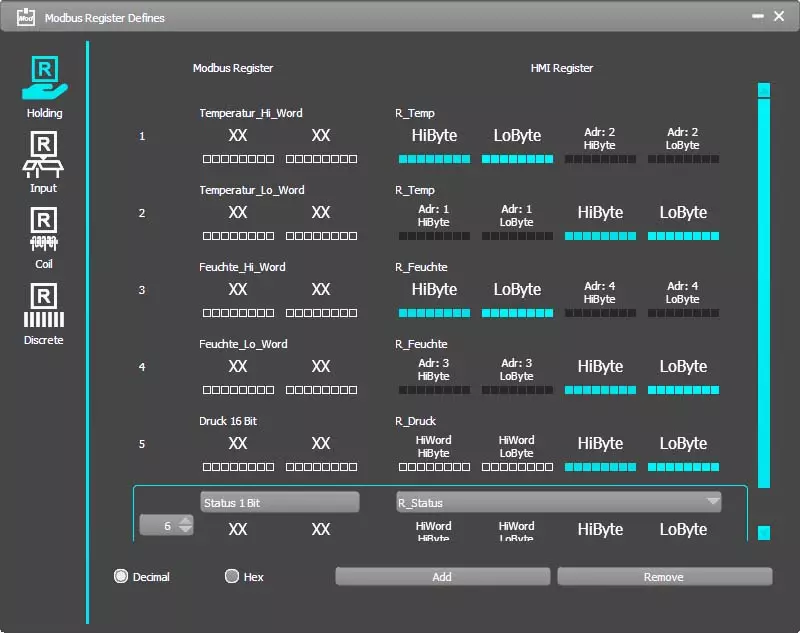

Freely definable register assignment

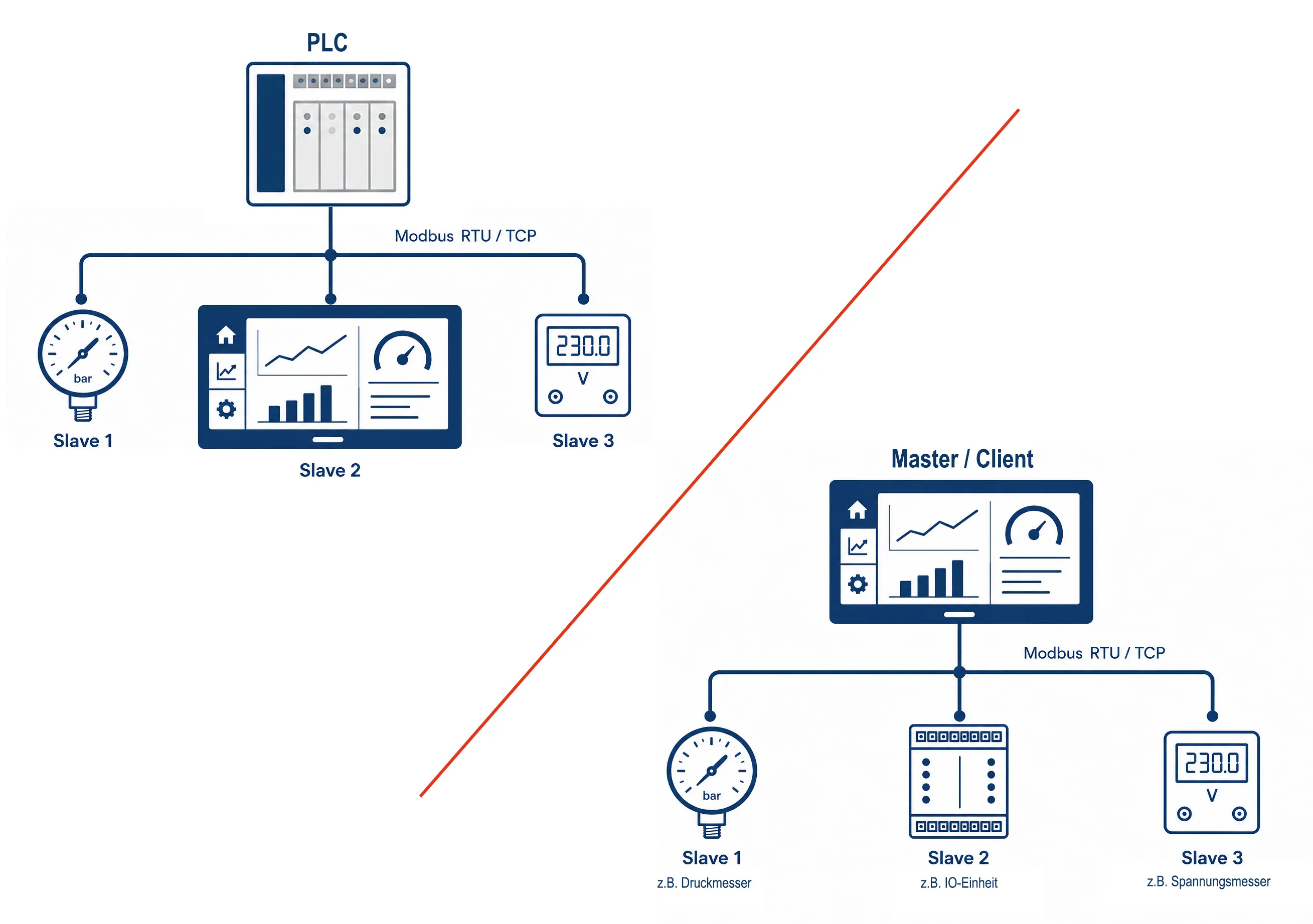

The Modbus display is configured as a slave. All Modbus registers can be freely assigned to texts, numbers, bar graphs, images, etc. Coil, discrete, input and holding are supported.

Even 32-bit float values can be elegantly transmitted for floating point calculations.

Texts can be stored as fixed texts or transmitted character by character.

Touch fields can be transmitted as "Discrete Input" or change a screen page directly.

Modbus Register Holding, Input, Coil, Discrete

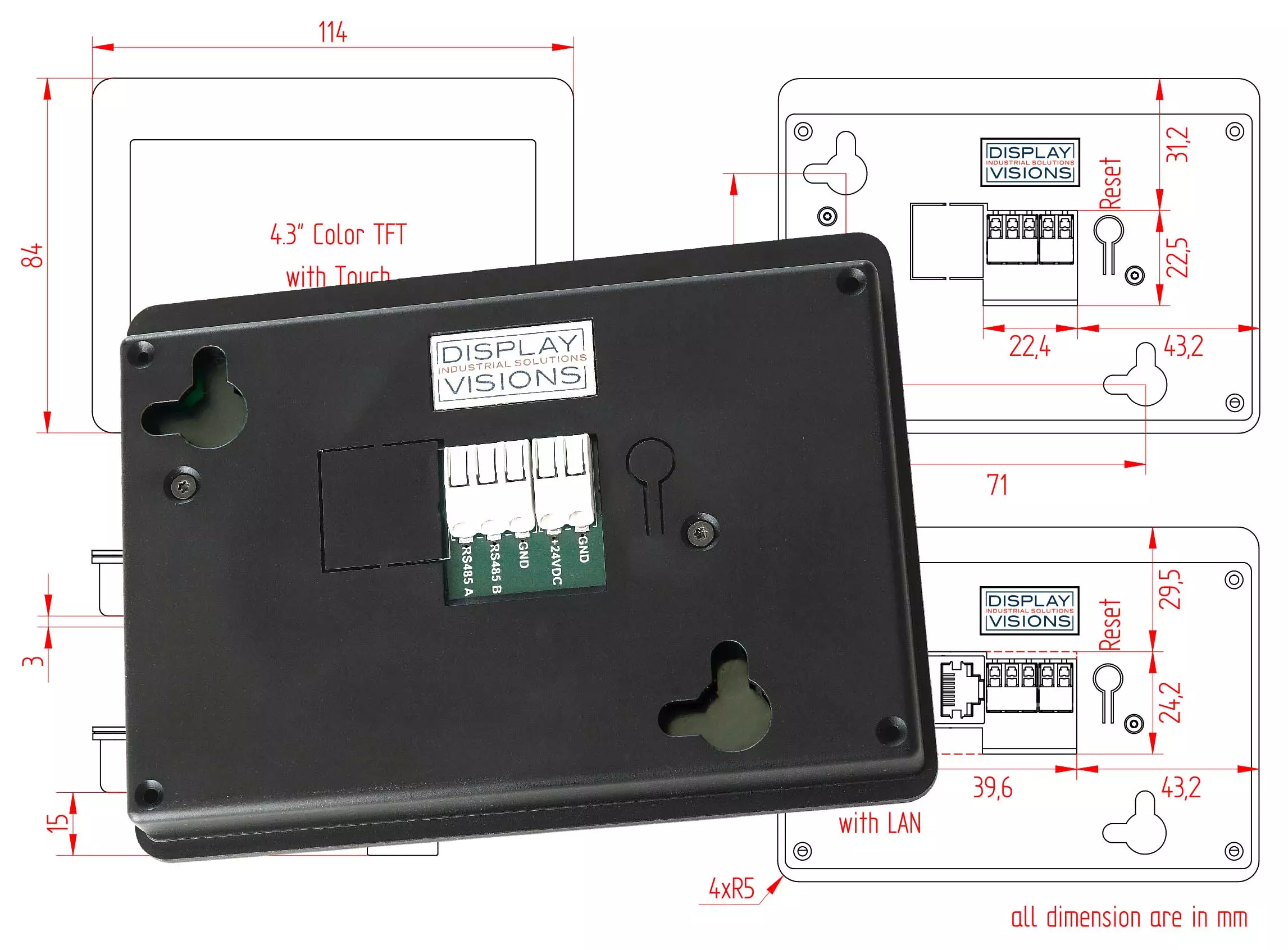

Wall mount or front panel?

The displays in the HMI series can be mounted on the wall or in a front panel/door.

The connections are located on the rear; the cables for supply voltage and data are plugged in here without tools.

HMI with Modbus for wall mounting and front panel installation

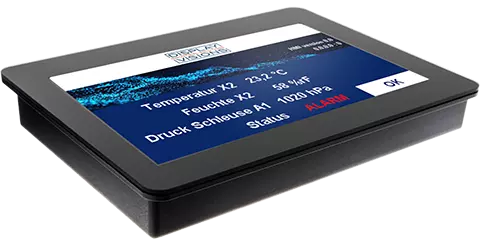

Affordable all-inclusive HMI - Modbus

This new display series consists of high-quality displays that can be easily integrated into any PLC system. At no extra cost, you get state-of-the-art displays for a wide range of applications – easy to integrate and brilliant in their display.

Choose from 5 different sizes – as a built-in solution or for wall mounting. All displays were developed and produced in Germany. Support includes a direct contact person from the development department at all times, including assistance with programming.

Size2.8"4.3"7"10.1"12.1"
Resolution320x240480x2721024x6001280x8001280x800
Dimension84x58 mm114x84 mm190x125 mm260x185 mm290x194 mm
Wall mountyesyesyesyesyes
Integrationyesyesyesyesyes
Brightness1,000 cd/m²
Viewing angle170°
Touchpanelyes, PCAP
Glass surfaceyes
Power supply voltage12-24 V
DisplayHigh-resolution IPS display, optically bonded

Application examples for Siemens, Beckhoff, Rockwell...

Our touch panels in the HMI series can be connected directly to all Modbus masters. Modbus TCP and Modbus RTU are offered by many PLCs and small controllers from well-known manufacturers. We have picked out 3 different ones and present the connection and commissioning using examples here.

more

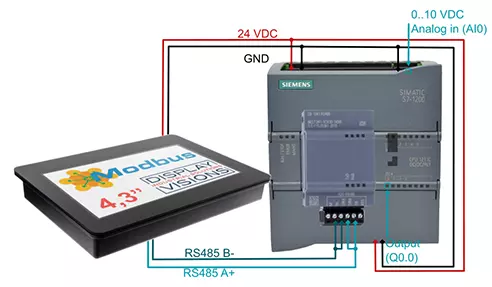

Application example HMI Modbus on Siemens S7 Logo! and Beckhoff

We can take over the HMI design on request

You sketch out your idea of the individual screen pages, provide us with images, logos and the corresponding Modbus register addresses, and we take over the implementation in the display.

To begin with, if you like, we are able to create a small test application for you free of charge so that you can concentrate fully on your core competences. As soon as you have the complete specification, we will be happy to calculate the implementation.

more

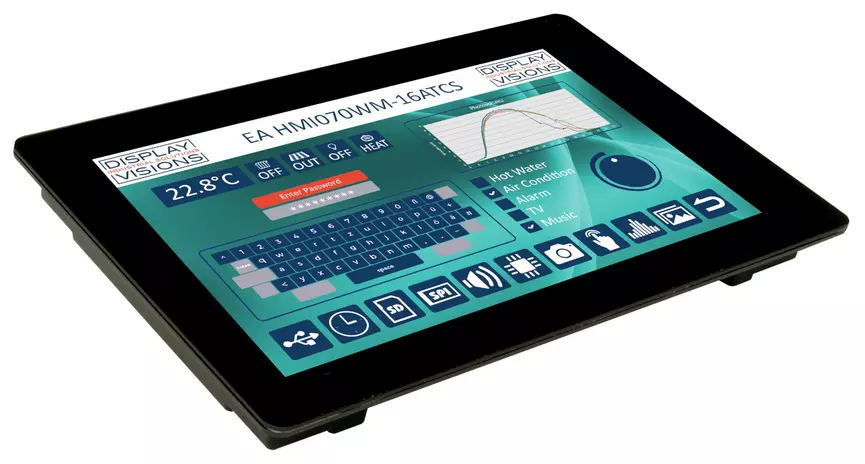

HMI GUI programming for Modbus-SPS connection

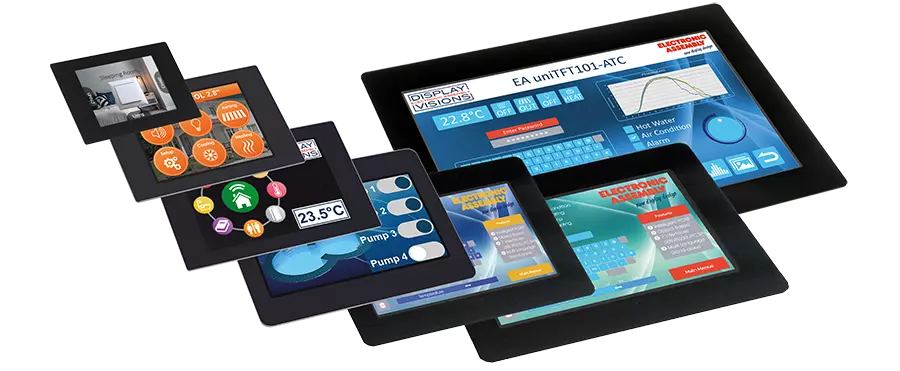

More HMI for integration with USB, RS-232, SPI, I²C

Powerful graphics functions for integration into devices with µC or embedded system.Incl. touch panel. Create your screen pages using a free WYSIWYG editor. Integrate elegant animations and connect sensors and actuators via various inputs and outputs.

1.5" - 2" - 2.8" - 3.5" - 4.3" - 5" - 7" - 10.1"

more
HMI units für integration from 1.5" to 10"

FAQ - Questions and answers about HMI display with Modbus

Questions and short, easy-to-understand answers about HMI display with Modbus

How easy is it to integrate the HMI displays with Modbus into existing PLC systems?

Integrating the HMI displays with Modbus into existing PLC systems is extremely simple and user-friendly. Thanks to the free WYSIWYG tool 'HMI Designer', individual screen pages can be designed using drag-and-drop. The desired Modbus registers can be easily linked to the display elements so that the correct data automatically appears on the display. The displays support communication with over 20 different PLC models, which facilitates integration into existing systems. In addition, the displays are configured as Modbus slaves on delivery, which enables flexible assignment of Modbus registers. These features make integration quick and uncomplicated.

Which PLC models are supported by the HMI displays with Modbus?

The HMI displays with Modbus support a wide range of PLC models, making them particularly versatile. These include Siemens Logo! (TCP), S7-200, S7-1200/1500, S7-300/400, as well as models from Allen Bradley, Mitsubishi FX and Beckhoff. Controllers from easyE4, Rockwell, Finder OPTA, Arduino and Schneider Electric Modicon are also supported. This broad support makes it possible to integrate the HMI displays into a wide range of industrial applications. Compatibility with various manufacturers and models makes the displays a flexible solution for many automation projects.

What are the advantages of HMI displays with Modbus for remote monitoring?

The HMI displays with Modbus offer significant advantages for the remote monitoring of industrial processes. They are immediately ready for use and enable remote access, which facilitates remote monitoring and control. The brilliant and bright display ensures that all information is clearly visible even from a distance. With Modbus TCP and RTU support, the displays can be connected directly to Modbus masters, further simplifying remote monitoring. In addition, touch fields can be transmitted as 'discrete input', which enables interactive remote control. These features make the HMI displays an ideal solution for remote monitoring.

What mounting options do the HMI displays with Modbus offer?

The HMI displays with Modbus offer flexible mounting options that can be adapted to different installation requirements. They can be mounted on the wall as well as in a front panel or door, allowing versatile integration into different environments. The connections are located on the back of the displays and are accessible without tools, which simplifies installation. The displays are available in different sizes so that they can be optimally adapted to the spatial conditions. This mounting flexibility makes the HMI displays a practical solution for many industrial applications.

What display sizes are available for the HMI displays with Modbus?

The HMI displays with Modbus are available in a variety of display sizes to meet different requirements. The available sizes range from 1.5 inches to 12 inches, with touch variants from 2.8 inches to 12 inches also available. This variety makes it possible to choose the right display size for every application, whether for compact control units or larger operating panels. The displays are characterized by a brilliant brightness of 1,000 cd/m², which ensures excellent visibility. This choice of sizes and the high quality of the display make the HMI displays a flexible and powerful solution.

Why is DISPLAY VISIONS the best choice for HMI displays with Modbus?

DISPLAY VISIONS is the best choice for HMI displays with Modbus due to its high-quality products developed in Germany. The displays are not only brilliant and versatile, but also easy to integrate, making them a cost-effective solution. The free WYSIWYG editor makes it easy to design the screen pages, and the comprehensive support offers a direct contact person from the development department at all times. The displays are also compatible with a wide range of PLC models, which facilitates integration into existing systems. This combination of quality, user-friendliness and excellent support makes DISPLAY VISIONS the ideal choice for HMI displays with Modbus.
