Mount text and graphic module without screws;high-quality displays with pins

No more screws

Place + Solder. READY.

No screws, distance sleeves or cables.

Save time during development and production.

Long availability.

Robust text and graphic displays for industry, durable

DIP: Fast, easy assembly

Fast, easy assembly

This displays are simply inserted in the PCB and soldered in place. There are no screws, distance sleeves or cables required. This saves material and simplifies immediately the construction. There's a saving for every single display module during assembly. Alternatively diplays can be used with sockets.

Brochure in pdf format.

Compatible

All displays are shipped with market-standard controllers. This means that the existing hardware and software can continue to be used unchanged.

DIP: State-of-the-art display technology

State-of-the-art display technology

Only top-quality materials are used. As a result, these displays are very easy to read and offer a high level of contrast. The design and manufacture of this display series guarantees minimum downtimes even under extreme conditions.

Technology

With a standard operating temperature of -20..+70 °C, rapid response times are guaranteed even at -20 °C. Automatic temperature compensation is usually also built-in. 5V single-supply operation is possible in all cases thanks to the built-in voltage doublers (exception: EA DIP122).

All the DIP modules at a glance

Character Character height Dimensions Ordering code Color Controller Datatsheet

Graphic

122x32 68x27mm EA DIP122-5HNLED yellow/green AX6120 DIP122-5
75x27mm EA DIP122J-5NLA amber
EA DIP122B-5NLW blue-white
128x64 75x46mm EA DIP128J-6N5LW black&white PT6608 DIP128-6
EA DIP128J-6N5LA amber
EA DIP128-6N5LW blue-white
180x32 102x27mm EA DIP180B-5NLW blue-white AX6120 DIP180-5
240x128 113x70mm EA DIP240J-7KLW black&white T6963 DIP240-7
EA DIP240B-7KLW blue-white

1x8

7.15 mm 40x20mm EA 8081-A3N gray ST7066 8081-A3N
11.48 mm 68x27mm EA DIP081-CHNLED yellow/green ST7066 DIP081-C

2x8

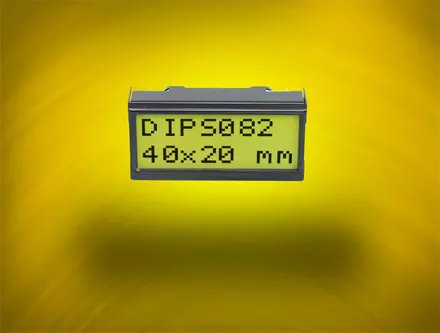

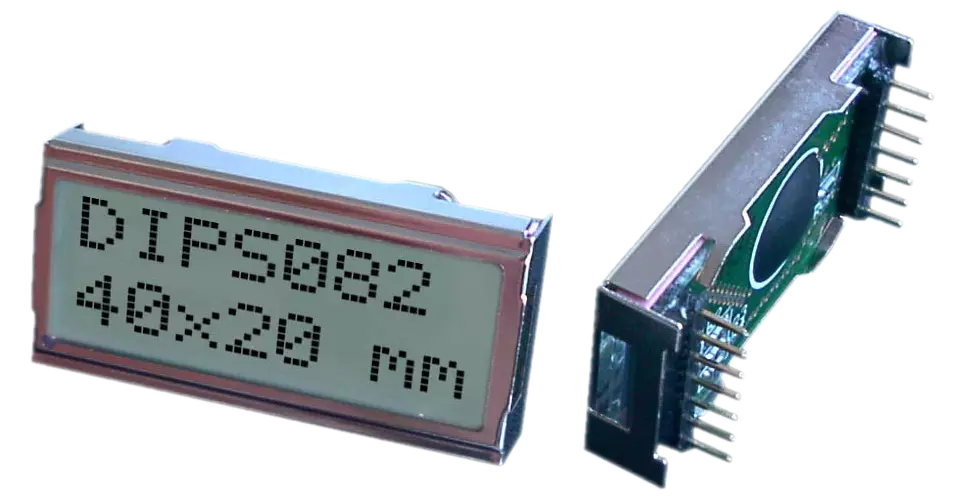

5.01 mm 40x20mm EA DIPS082-HN yellow/green ST7066 DIPS082
EA DIPS082-HNLED yellow/green

2x16

6.68 mm 68x27mm EA DIP162-DHNLED yellow/green ST7066 DIP162
75x27mm EA DIP162J-DN3LW black&white
EA DIP162-DN3LW blue-white

4x20

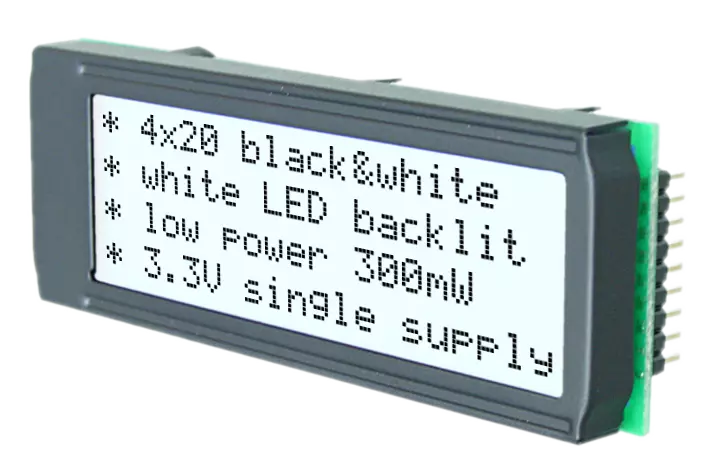

3.75 mm 68x27mm EA DIP205G-4NLED
(EA DIP203G-4NLED obsolete)
yellow/green

RW1073-0B

(SSD1803)

DIP205-4

(DIP203-4)

75x27mm EA DIP205J-4NLW
(EA DIP203J-4NLW obsolete)
black&white
EA DIP205B-4NLW
(EA DIP203B-4NLW obsolete)
blue-white
6.45 mm 75x46mm EA DIP205J-6NLW
(EA DIP203J-6NLW obsolete)
black&white

RW1073-0B

(SSD1803)

DIP205-6

(DIP203-6)

EA DIP205B-6NLW
(EA DIP203B-6NLW obsolete)
blue-white

5 series are currently available

EA DIP Series

40 x 20 mm

1 x 8 and 2 x 8 characters

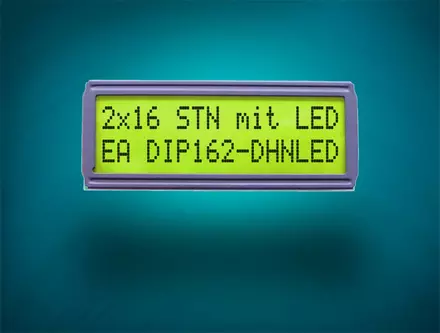

EA DIP162-DHNLED

68(75) x 27mm

1x 8, 2 x 16, 4 x 20
characters, and
122 x 32 pixels
for graphics

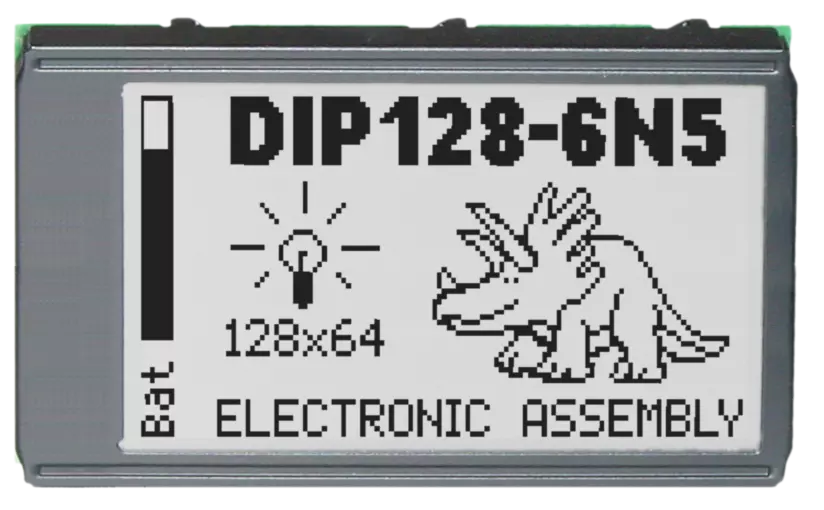

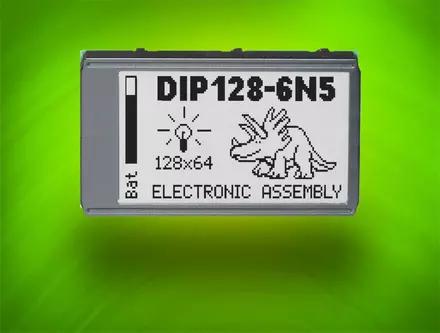

EA DIP128J-6N5LW

75 x 46mm

4x 20 characters and
128 x 64 pixels for graphics
Touchpanel optionally

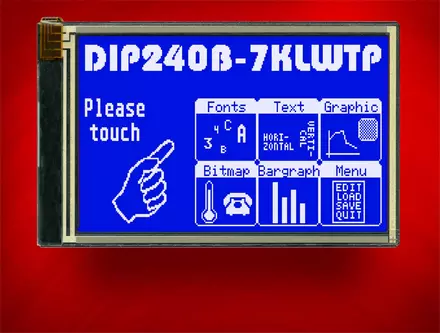

DIP240B-7LWTP

113 x 70mm

Graphics 240 x 128 pixels
Touchpanel optionally

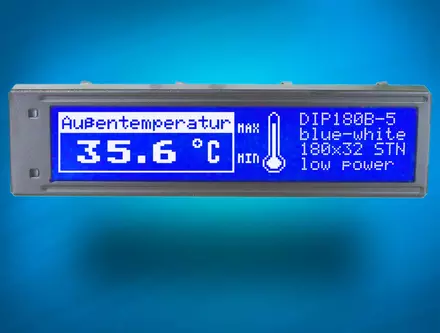

EA DIP180-5NLW

102 x 27mm

180x32 dots, 3x AX6120
Touchpanel optionally

DIP displays can also be assembled via socket

Socket

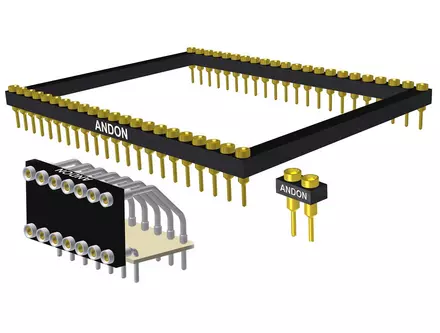

DIP displays can also be assembled via socket. Suitable types are mentioned in relating data sheet.

Alternatively Andon Electronics (USA) provides self developed sockets. Click here for a list.
