DVM (voltmeter) and digital counter modules (LCD)

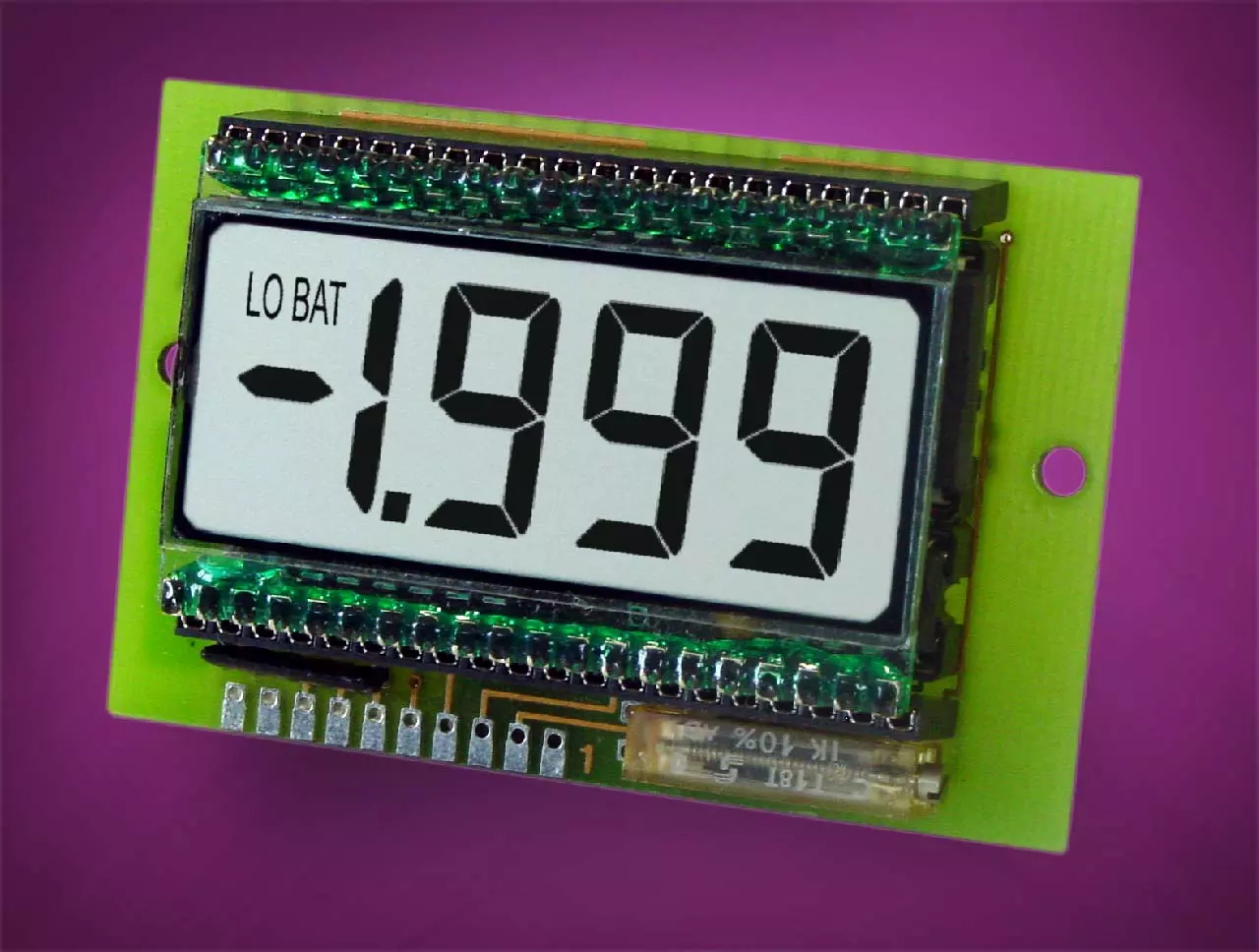

Digital voltmeters (3½ digits): EA 4110
- High-contrast, static LCD
- Autozero, autopolarity, overflow indication
- 3 different measuring ranges: ±200mV, ±2V, ±20V
- Operating voltage 3.7-6V/2.5 or 0.5mA
- Decimal-point control
- Internal DC/DC converter -5V/10mA
- Low-battery display
- 3 measuring ranges, 3 converter types
- 3 different display sizes available
- Common-reference measurements possible
- Delivery includes bezel and mounting frame
- 13 mm digit height, 67 x 43 x 15 mm
- 18 mm digit height, 86 x 50 x 15 mm
- 50 mm digit height, 188 x 89 x 15 mm
ORDERING CODES (shipped incl. bezel)
| 3½ digit DVM, 13 mm digit height | EA 4110-13NA |
| 3½ digit DVM, 18 mm digit height | EA 4110-18NA |
| 3½ digit DVM, 50 mm digit height | EA 4110-50NA |

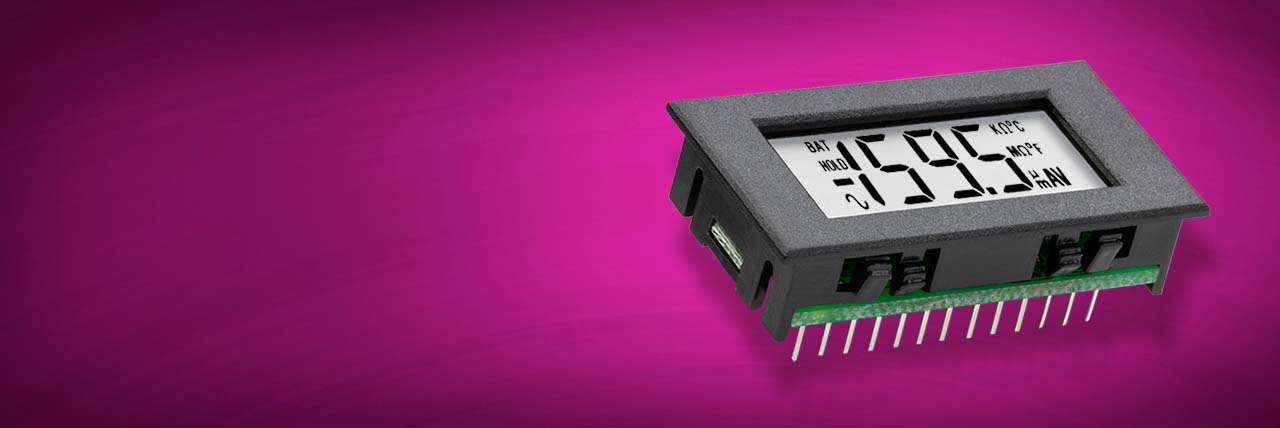

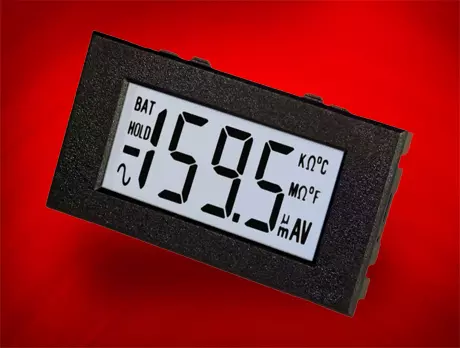

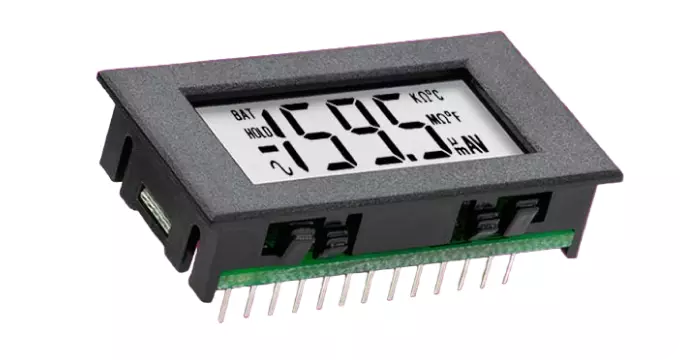

3½-digit mini-DVM for 5V or 9V operation: EA VK-1000
- Universal low-power DVM
- Integrated snap-in frame
- Differential measurement input ±200mV
- Ri > 100MOhm
- Operating voltage 9V/180µA or 5V/3mA
- Decimal points, units of measurement
- Internal negative converter for 5V operation
- Measurement input to ground possible (in 5V operation)
- Dimensions 44 x 24 x 11 mm
ORDERING CODES incl. Snap-In frame
| 3½ digit DVM module | EA VK-1000V5 |
| Adaptor for EA VK-1000V5 | EA 9401 |
| Adaptor for EA VK-1000V5 | EA 9401-S |

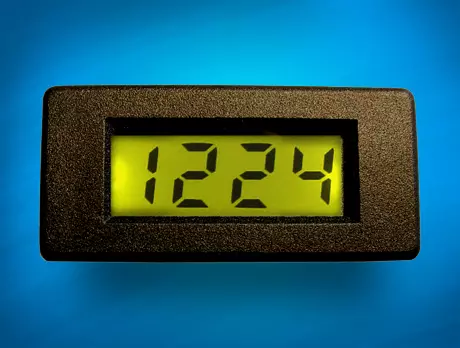

3½-digit micro-DVM: EA 4011-ASBL
- Very small, dimensions 30 x 14 x 11 mm
- incl. LED backlight
- Autozero, autopolarity
- Measuring range ±200mV
- Decimal points controllable via solder straps
- Common-reference measurement (3-7V only)
- Integrated snap-in frame
ORDERING CODE incl. snap-in frame
| 3½ digit Micro-DVM module, 3-7V/15V | EA 4011-ASBL |
9-segment LCD indicator: EA 4080-1710
- Static, high-contrast LCD
- Input 0..+1V with ground reference
- Very easily mounted
- 5..12V/6mA supply
- Operating temperature 0..+50°C
- Dimensions 44 x 22 mm
ORDERING CODE
| 9-Segment LCD indicator | EA 4080-1710 |
Event counters, Frequency counters

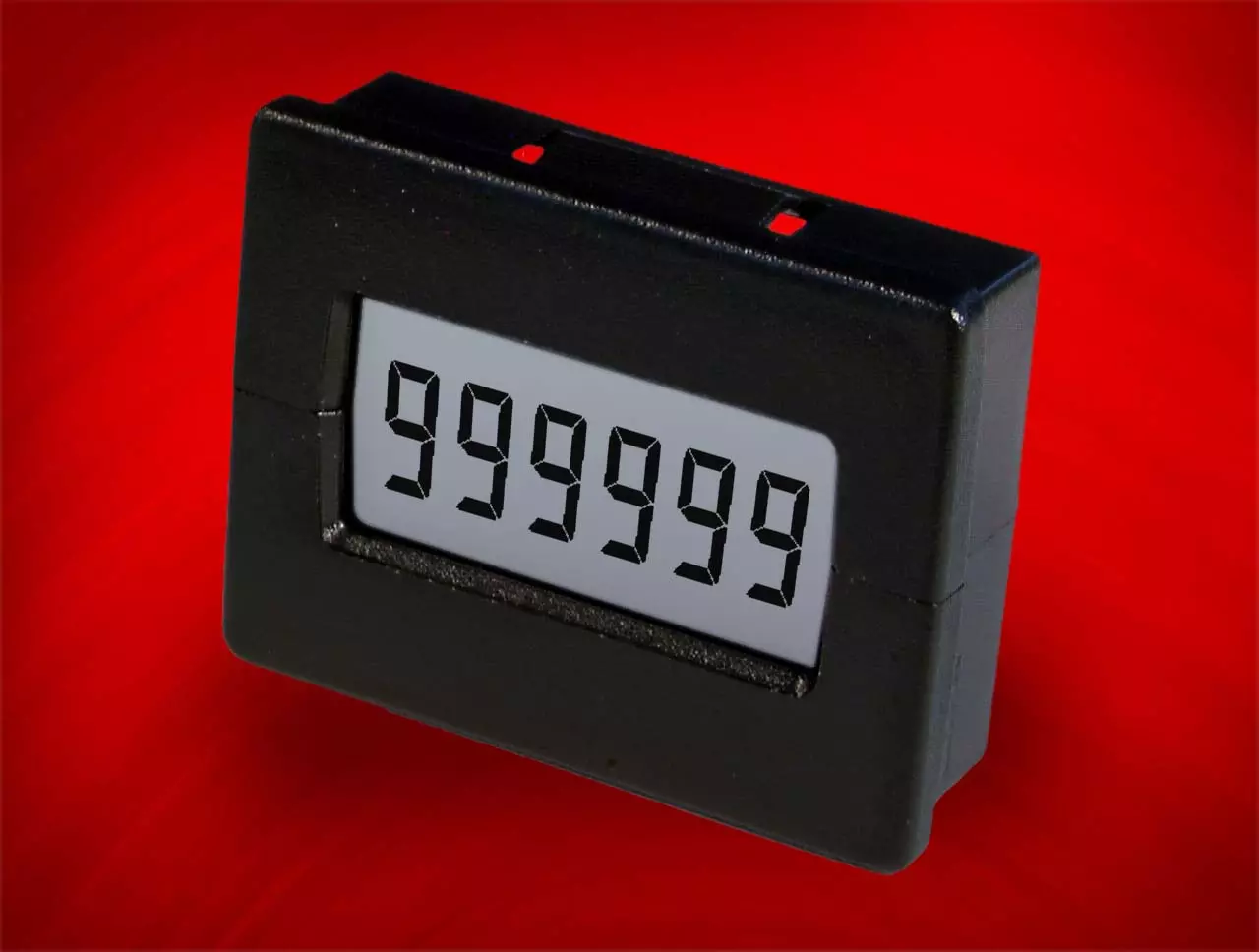

6-digit miniature counter: EA 2021-N
- Schmitt-trigger counting input
- Counting frequency of up to 10kHz
- Pulse counted at falling edge
- Reset active low pulse min. 15ms
- 2-piece snap-in frame 30.5x23.5mm
- Inputs on back and front (EA 2022-N only)
- Dimensions 28 x 18 x 6.5mm
ORDERING CODES incl. snap-in frame
| Miniature counter 6 digit | EA 2021-N |
| Miniature counter, up/down version | EA 2022-N |
| Bezel for snap-in mounting | EA 021 |

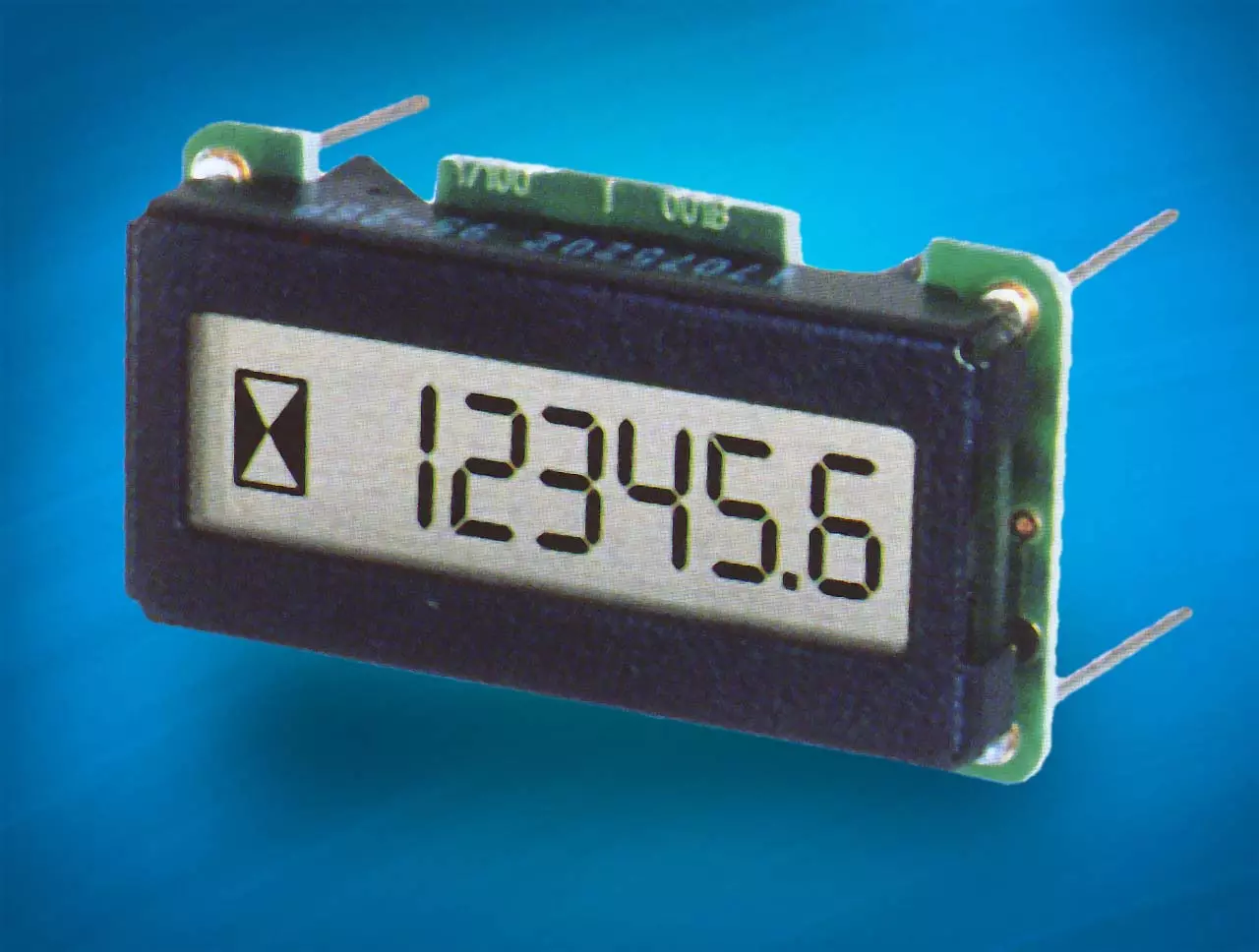

6 digit counter with EEPROM: EA 2070
- Data storage for 15 years
- Digit height 5mm or 7mm
- w./o. and with backlight
- Counting frequency up to 500Hz
- Reset input
- Counts at H/L edge
- Dimensions 33 x 18mm (EA 2070-5xxx)
- Dimensions 39 x 25mm (EA 2070-7xxx
ORDERING CODES
| EEPROM Counter 5mm | EA 2070-5112 |
| EEPROM Counter 7mm with LED b./l. | EA 2070-7114 |

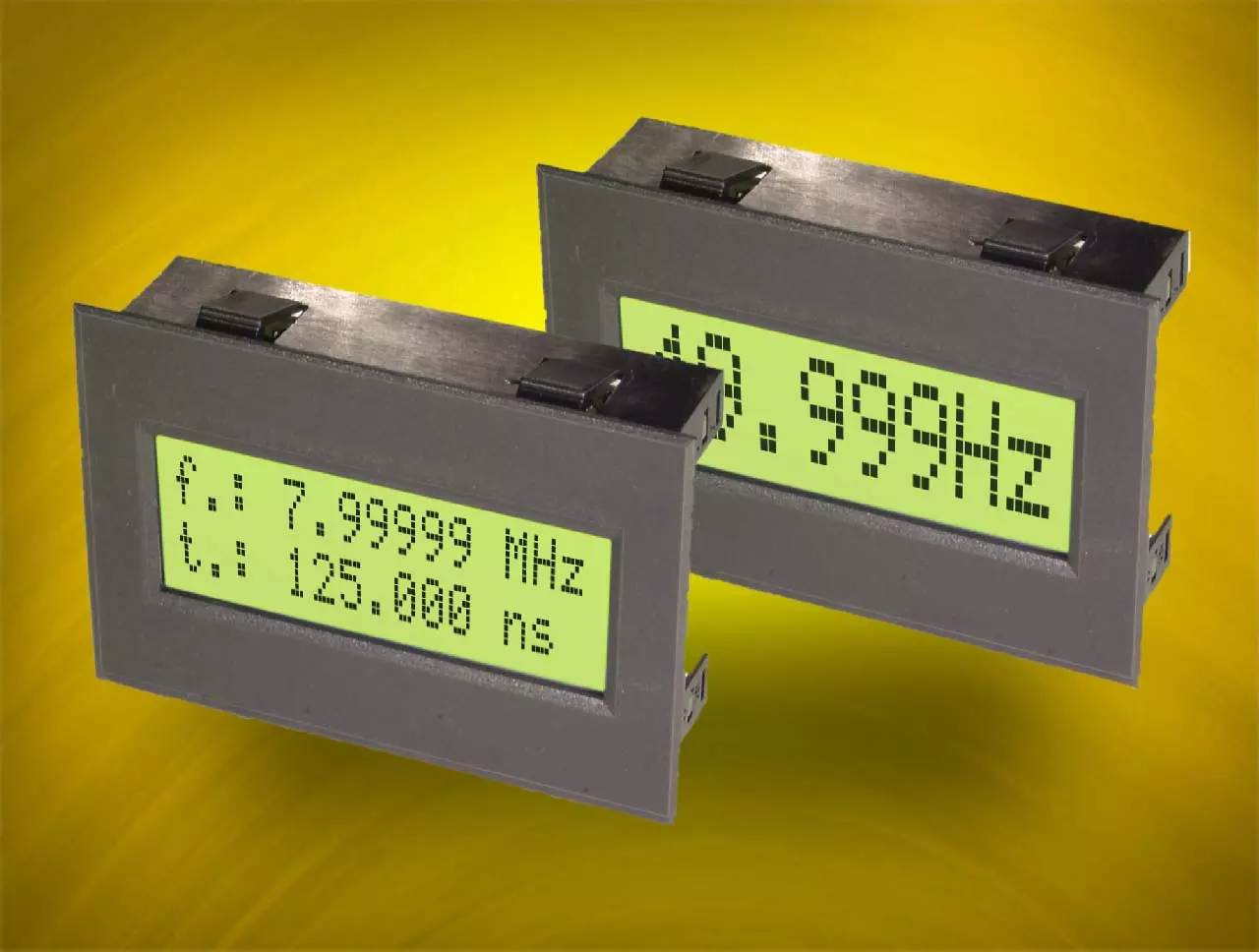

Frequency/period meter: EA 6533
- RS-232 interface for read-out
- CMOS Schmitt-trigger counting inputs
- Measuring range 0.0025Hz .. 40MHz
- Automatic range selection
- EA 6533-8: 8 digits for frequency OR period
- EA 6533-16: 16 digits for frequency AND period
- Digits 11.48mm (-8) or 6.68mm (-16)
- 5V or 9..35V supply, optionally
- Including LED lighting, yellow/green
- Including snap-in housing for panel mounting
- Dimensions 77 x 54 x 22 mm
ORDERING CODES incl. snap-in-frame
| 8 digit Frequency/Periode Counter | EA 6533-8 |
| 16 digit Frequency/Periode Counter | EA 6533- 16 |

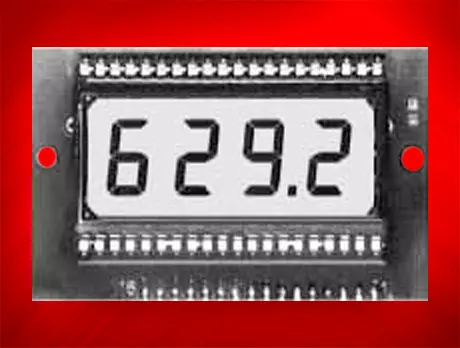

4-digit frequency counter EA 6110-FA
- CMOS Schmitt-trigger input up to 2MHz
- Prog. gate times for frequency counter 10µs-1000s
- Prog. gate times for revolutions counter 6µs-600s
- Quartz time base: 100kHz ±5ppm
- Decimal-point control, carry output
- Overflow display by means of colons
- Leading zero suppression
- 13 mm digit height, 67 x 43 x 15 mm
- 50 mm digit height, 188 x 89 x 15 mm
ORDERING CODES incl. bezel
| 4 digit Frequency counter, 13mm | EA 6110-13FA |
| 4 digit Frequency counter, 50mm | EA 6110-50FA |
| Prescaler module (1 tos 10,0000.000) | EA 9110-T |
| PLL multiplier (1 to 10,000) | EA 9110-M |
Meter Displays
* Voltmeter (DVM)
* Data Logger
* min/max
* Limit with Warning
* Greater/Smaller
* RS-232
* USB
* I²C bus
* SPI
* WiFi / WLAN
* 1-4 inputs
* Color display TFT
* Touch PCAP
* Bargraph
* Pointer
* Diagram
* Low Power
* Dotmatrix
* OLED
* Intelligent
This Flyer provides an overview. Ask for your solution, there are many possibilities. Contact us by phone or E-Mail. !
more
FAQ - Questions and Answers About DVM and Meters
Questions and brief, easy-to-understand answers about DVM and meters
What measurement ranges do DISPLAY VISIONS' DVMs offer?
What are the benefits of DISPLAY VISIONS counters?
How does the Autozero function work on DISPLAY VISIONS' digital multimeters?
The Autozero function on DISPLAY VISIONS’ DVM models ensures that the device automatically calibrates the zero point. This is particularly useful for minimizing measurement errors and increasing measurement accuracy. The function operates continuously and adapts to changes in the environment. This ensures that measurements are always precise without requiring manual intervention by the user. This automatic calibration is a significant advantage for applications that require the highest precision.
What power supply options are available for DISPLAY VISIONS' DVM and meters?
DISPLAY VISIONS' DVMs and counters offer flexible power supply options to meet a variety of requirements. The DVMs can operate at a supply voltage of 3.7–6 V or 9 V, while the counters require a supply voltage of 5 V or, optionally, 9–35 V. This flexibility allows the devices to be used in a variety of environments and applications. In addition, some models feature an internal DC/DC converter that provides an additional power supply.
What display sizes are available for DISPLAY VISIONS' DVM models?
DISPLAY VISIONS' DVM displays are available in three different sizes to meet a variety of requirements. The smallest size has a digit height of 13 mm and measures 67 x 43 x 15 mm. A medium size offers a digit height of 18 mm with dimensions of 86 x 50 x 15 mm. The largest version has a digit height of 50 mm and measures 188 x 89 x 15 mm. This selection allows you to choose the right display for specific applications and visibility requirements.
Why is DISPLAY VISIONS the best choice for digital multimeters and meters?
DISPLAY VISIONS is the best choice for digital multimeters and meters, as the company offers a wide range of high-quality and reliable products. The devices are equipped with state-of-the-art technology that enables precise measurements and easy operation. In addition, DISPLAY VISIONS offers customized solutions tailored to the specific needs of its customers. Excellent customer service and comprehensive consultation ensure that customers receive the best possible support. With a wide range of options and features, DISPLAY VISIONS products are ideal for demanding applications.
