COG LCD: flache Text und Grafikdisplays mit gelb/rot/blau/grün/weiß beleuchtung

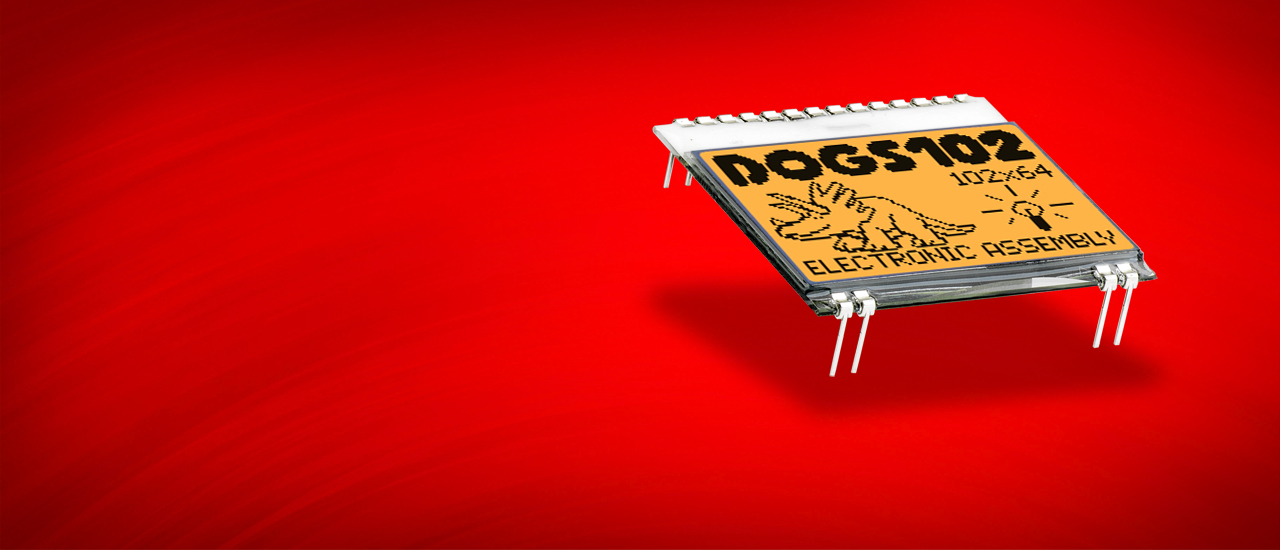

EA DOGS102W-6

This display series was specially developed for
low-power hand-held applications.
For the first time it is possible to operate
a standard display at 3.3V!
The optionally available LED backlighting can also be run
with 3.3V or 5V. The preferred interface is the SPI bus.
In the mean time are a lot different character and
graphic displays available.

19" chassis / plug-in unit / I2C

DOG modules are ideal for 19“ chassis with plug-in units

DISPLAY VISIONS offers small DOG modules with I2C which are ideal for a 19“ chassis with plug-in units. The DOG displays do require space of max. 40mm in frontal plate only. Some of the smaller DOG graphic series are even smaller than 40 millimeters. It's perfect for 19 inch systems. All of the displays are quiet flat. So you can run them with backlights in a 19“ chassis too. Some of these LCD modules are equipped with I2C and / or SPI. They are most suitable for your plug-in unit if you don't have much space. The assembly of the displays is easy: just plug-in to socket or pcb. The displays are available as 4x20 text, 240x64 graphic and 102x64 graphic.
