Chip-On-Glass Display Series DISPLAY VISIONS

Chip-On-Glass Display Series

This new display family was especially developed
for low-power handheld applications for medium
and larger production quantities. For the first time
a standard text display is running at single supply voltage
of +3.3V! Also the optional LED backlights are made
for 3.3V or 5V supply voltage.

The preferred interface is the SPI bus. All displays are
very flexible in color-design because the backlight and the
display are both individual components that will be
combined finally in production only.

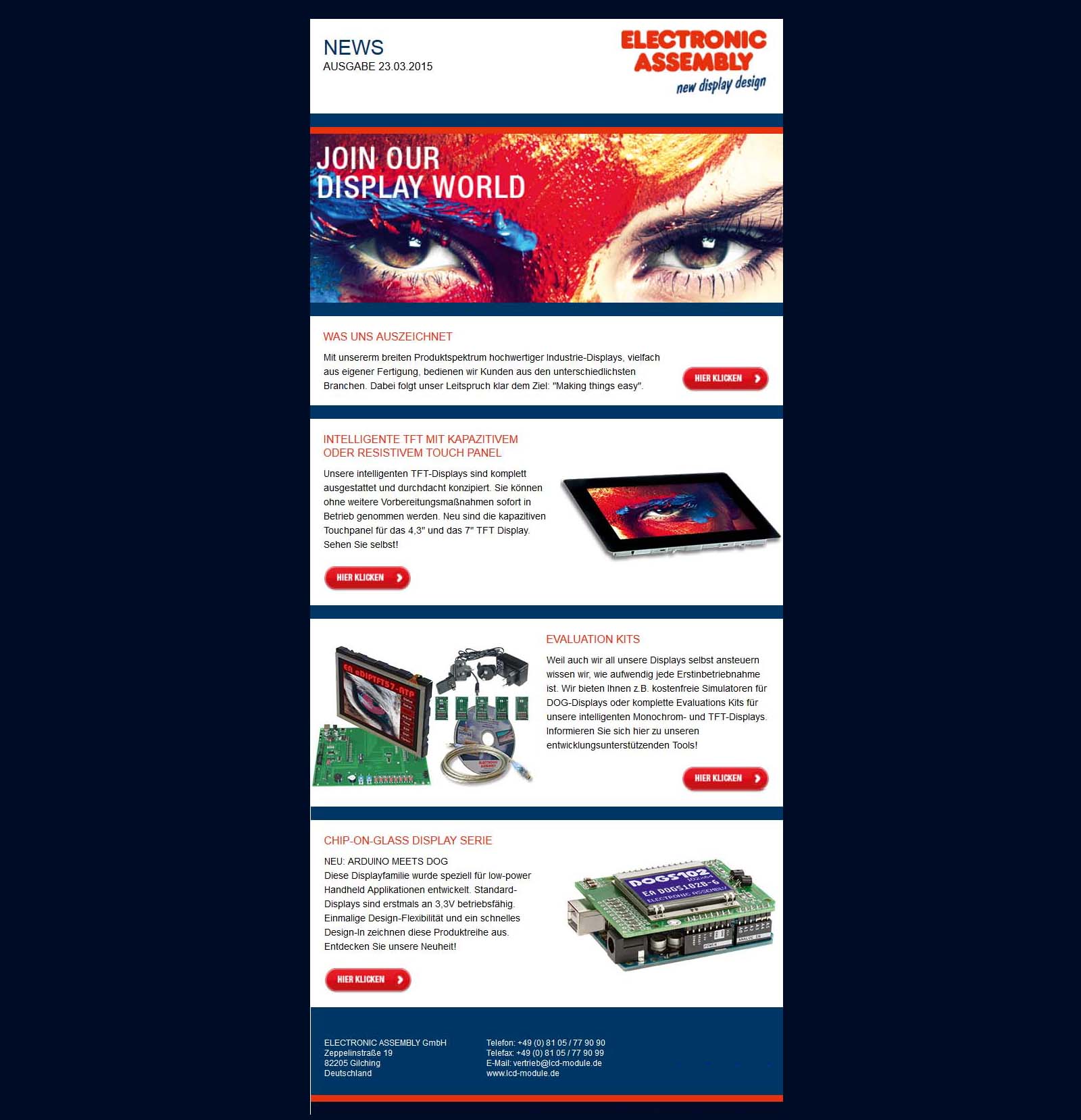

Newsletter: Chip-On-Glass Displays / Arduino meets DOG

Chip-On-Glass Displays

extreme compact design
1x8 - 2x16 - 3x16 for +5V or +3.3V
4x10/2x10 - 4x20 for +3.3V
Graphic 102x32 .. 240x128 for +3.3V
flat wiht 2.0 (2.8)mm non-backlighted and 5.8(6.4)mm with backlight
Text displays: SPI-Interface, some also with I²C and 4-Bit, 8-Bit
Grafik displays: SPI-Interface (some also with I²C bus)
LED baclight 3.3V or 5V
many differnet designs from 1 pc. off available
no minimum order quantity, fastest delivery time
Flyer as .pdf
more informations

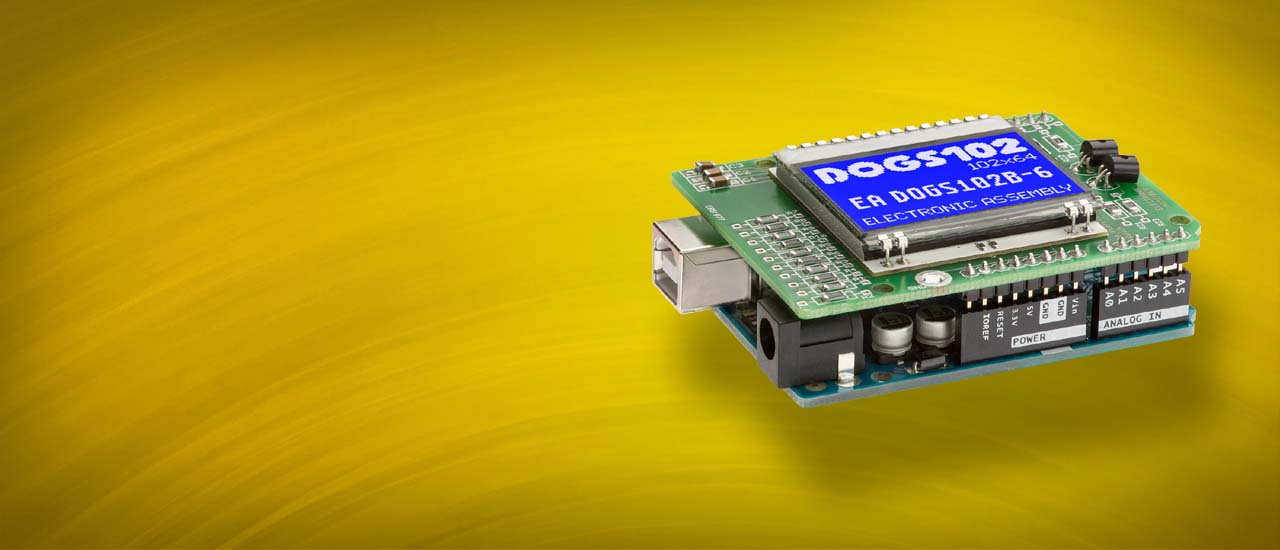

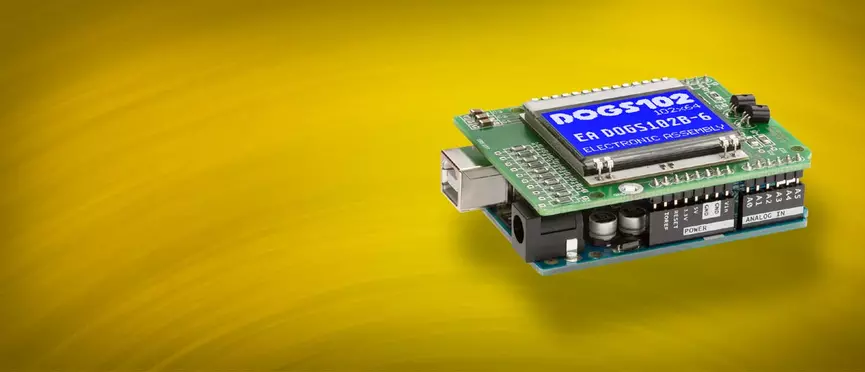

<h2 class="articleHeader type_text">Arduino meets DOG</h2>

Made for Arduino Uno
Sketches
Library
Documentation
EAGLE *.brd / *.sch
1x8 - 2x16 - 3x16
102x64
128x64 in 2 sizes
more Arduino Support
