Micro DC-AC Converter and EL Lamps

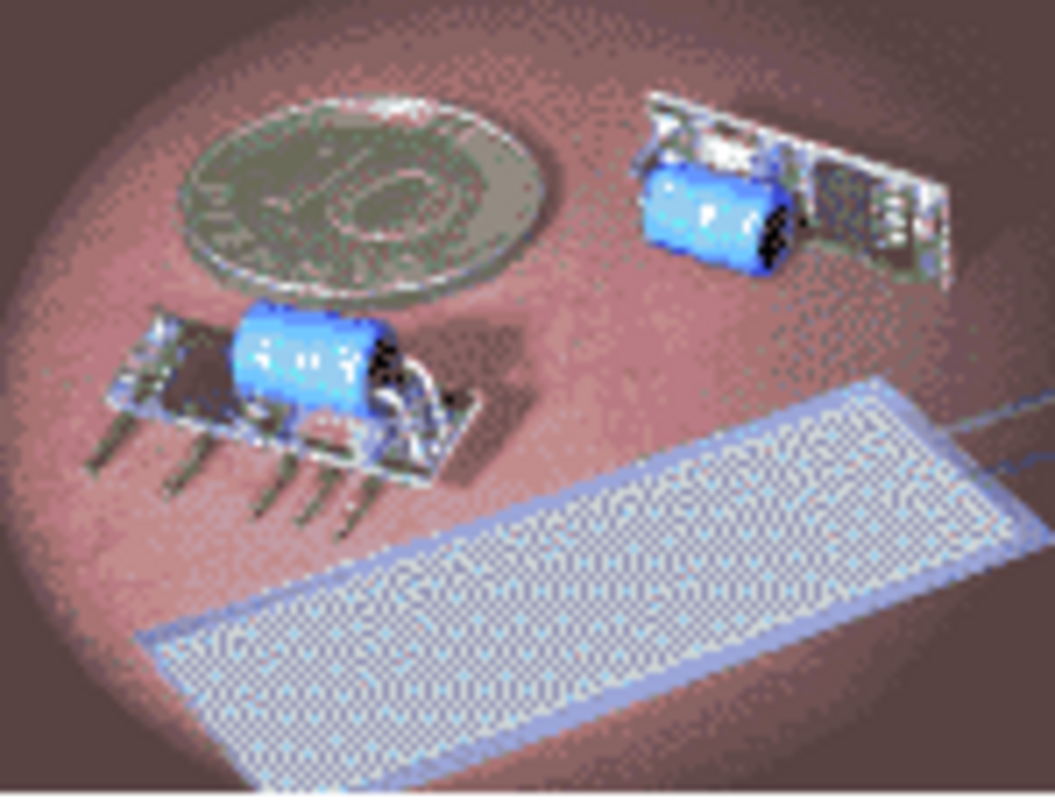

ELECTRONIC ASSEMBLY produces the smallest DC-AC converter called EA PSEL-22. The dimensions are 20x7x8mm. Power supply range is from 1.5 to 6V (various brightness) with a typically current consumption of 15mA/5V. The module is good for EL lamps up to 20cm². Low power and small size makes it ideal for battery powered systems. The converter is available with and without pins. Another advantage is the digital on/off input. Switched off the current consumption is reduced to 50nA. Many fitting EL lamps in various sizes are available 1 pc. off. From aprox. 250 pcs. off custom made sizes and colors are available. To smaller your application ELECTRONIC ASSEMBLY offers also a kit with all components for lighting, together with an EL lamp.

More informations you will find in our complete data sheet.
March 13th, 1997 Ralph Tischer
