Self-contained control display at a low price

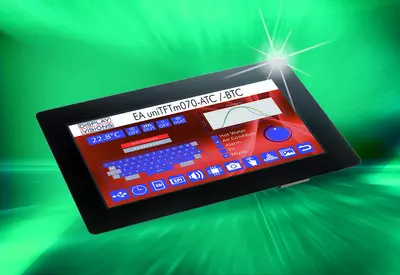

With the uniTFTm070, DISPLAY VISIONS is presenting a visually and technically brilliant control display at embedded world 2025. The reasonably priced 7-inch touch panel is "ready to run" without additional peripherals and impresses with numerous graphic functions.

Based on the proven uniTFT070 graphic display, DISPLAY VISIONS has developed an inexpensive control unit that is ready for immediate use without additional components. With the powerful graphics, logic and arithmetic functions of the integrated I/O and graphics controller, the touch panel offers a quick introduction to the world of smart control screens. With the free uniTFTdesigner, you can quickly and easily create modern operating concepts - ideal for modern communication, for example in motorhomes, fitness equipment or industrial test and measurement equipment. 4 analogue inputs, 16 digital I/O and 7 serial interfaces (USB, 2 RS232, 2 SPI, 2 I²C) are available for interaction with sensors and other devices. Special fonts, images and sounds as well as time-based log files are stored and retrieved in the integrated FLASH.

The 7-inch colour display offers a fine resolution of 1,024 x 600 pixels. Thanks to IPS technology, it shows a true-colour and sharp image from all viewing angles. There is no tipping of the colours, as is the case with classic LCD screens. The up to 1,000 cd/m² backlighting ensures a high-contrast display even in bright sunlight. The elegant, crystal-clear front of the uniTFTm070 allows sensitive inputs, including zooming, swiping and sliding if required.
