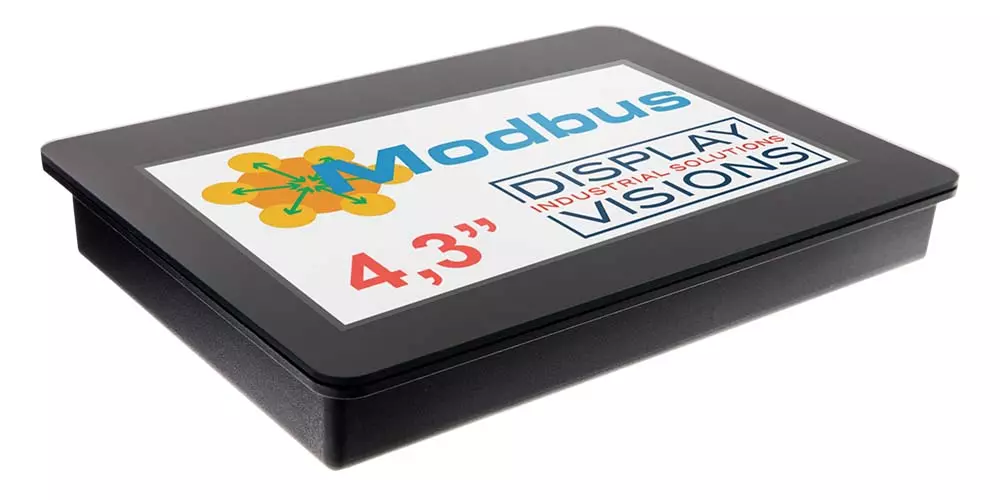

HMI with Modbus TCP/RTU

Ready-to-use, cost-effective displays (remote): brilliant, bright and with touch panel. Use the free WYSIWYG tool "HMI Designer" to create your customised screen pages using drag and drop. You then link the corresponding Modbus registers with the objects on the display and automatically receive the correct data as a display.The display supports communication with over 20 different PLC models, including Siemens Logo! (TCP), S7-200, S7-1200/1500, S7-300/400, Allen Bradley, Mitsubishi FX, Beckhoff, easyE4 and many more.

-> Read more

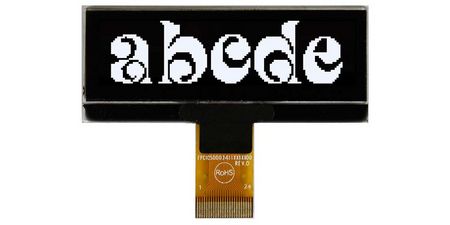

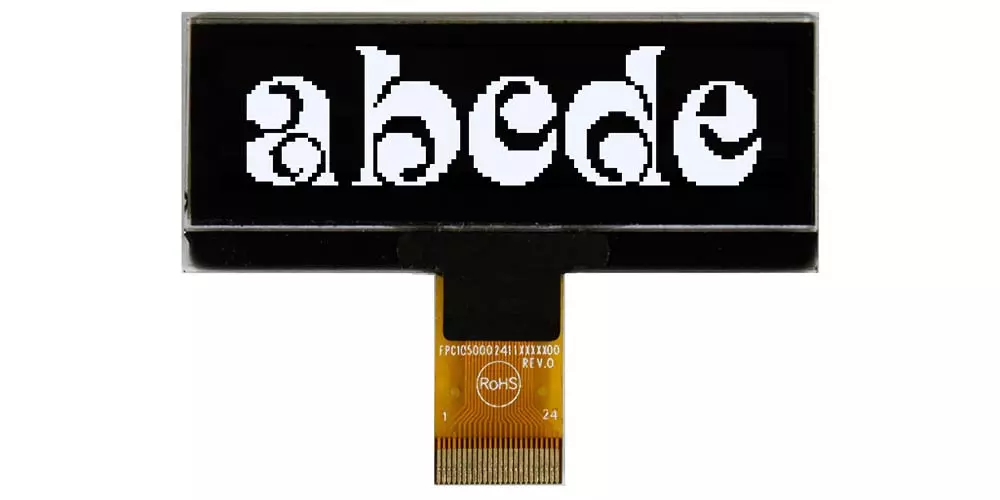

White OLED displays

As a self-illuminating display technology, OLEDs have numerous advantages over LCDs. In addition to the extremely flat design, these are above all very wide viewing angles of up to almost 180° all round. Thanks to the deep black level, it impresses with a contrast ratio of >2000:1. The brightness of the controlled surfaces in the 50% checkerboard pattern is 80 cd/m2. That sounds low, but it is brilliant even in bright daylight. At 10 µs, the display reacts extremely quickly, even at freezing -40 °C and scorching +80 °C.

-> Read more

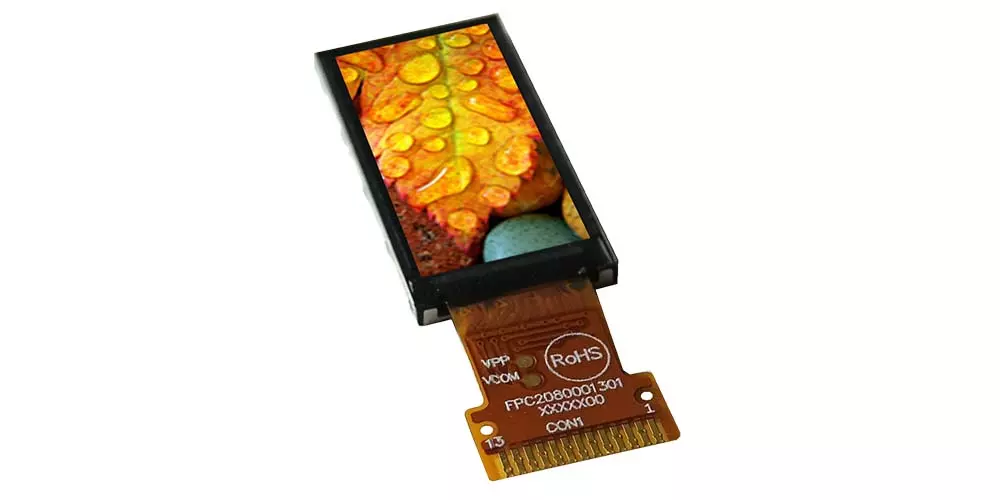

Micro colour display

With a diagonal of just 0.96 inches, the EA TFT009-81AINN colour display is ideal for installation in hand-held devices of all kinds. The wide viewing angle stability of the IPS panel guarantees excellent readability, even under the most adverse lighting conditions.The new EA TFT009-81AINN LCD colour display is not even the size of a thumb. Nevertheless, there are 80 x 160 pixels on a surface measuring around one by three centimetres (diagonal 0.96 inches). These can be used to create razor-sharp graphic displays in colour or black and white. The powerful white LED backlight makes the display up to 500 cd/m² bright. This makes it easy to read even in direct sunlight or under bright operating theatre lamps.
-> Read more

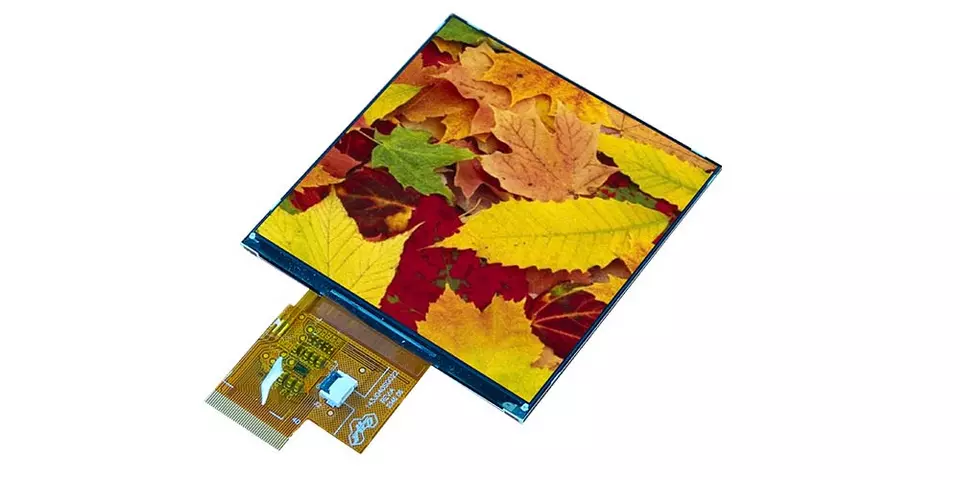

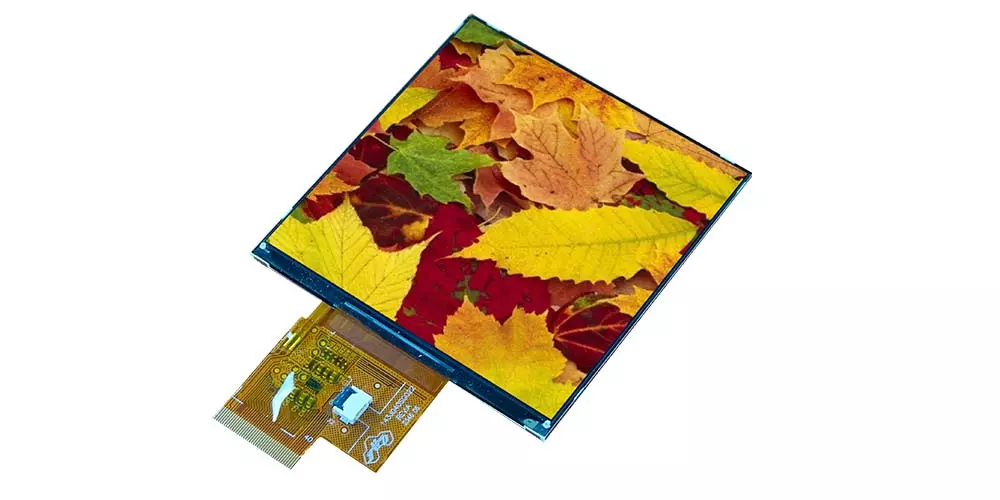

Brilliant and extremely bright with 900cd/m²

With a diagonal of 4" and external dimensions of 78x79x2 mm, the new EA TFT040-77AINN display is ideal for installation in hand-held devices or desktop devices.

The very high resolution of 720x720 pixels with a viewing angle of over 160° make this display a perfectly readable component in your high-quality system. It is controlled via a classic RGB interface.

The display can also be equipped with a touch panel as standard.

-> Read more

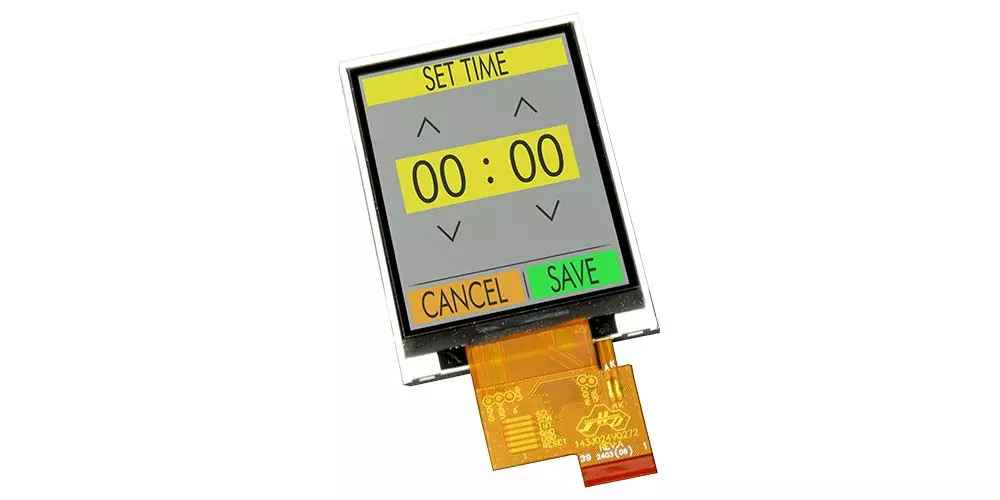

Sunlight-readable colour display
The newly developed 2.4-inch TFT colour display is particularly suitable for mobile use due to its low power consumption. It manages with just 10 mA power consumption at 3.3 V and shows crisp contrasts even in sunlight.
The new TFT024-23ATNN is a particularly economical colour display for use in mobile devices in the range. It is very easy to read both with and without illumination. Without illumination, the power consumption is only 35 mW. During an eight-hour working day, this is enough to charge a LiPo battery with no more than 75 mAh. The positive TFT panel with white background can be operated in both colour and black and white. The display is clearly legible even in glaring sunlight.
-> Read more

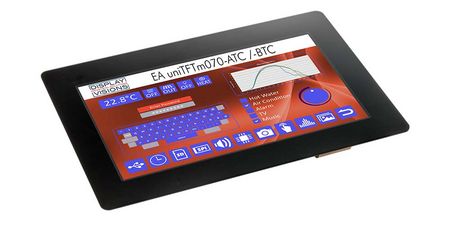

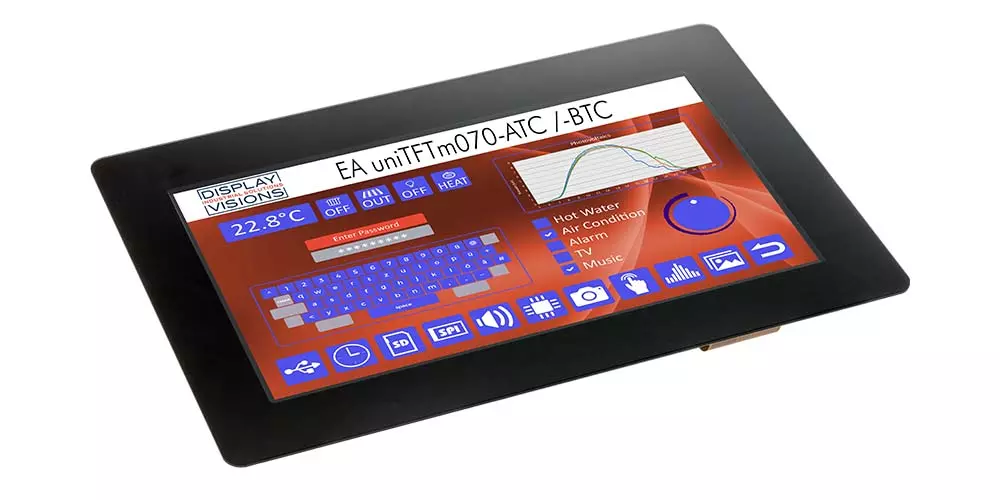

7" low-cost HMI solution

The new EA uniTFTm070 is a technically and visually brilliant HMI solution based on the EA uniTFT070. Almost identical in function and mechanics, but at a significantly lower price, this touch panel offers a super-easy entry into the world of intelligent displays with an almost infinite number of built-in graphic functions. Interfaces: USB, RS-232, SPI, I²C, over 1000 cd/m² bright, lots of stand-alone functions and memory.Simple WYSIWYG tool for creating your own screen pages available free of charge. Incl. simulator, debugger, terminal and many other helpful tools!
-> Read more

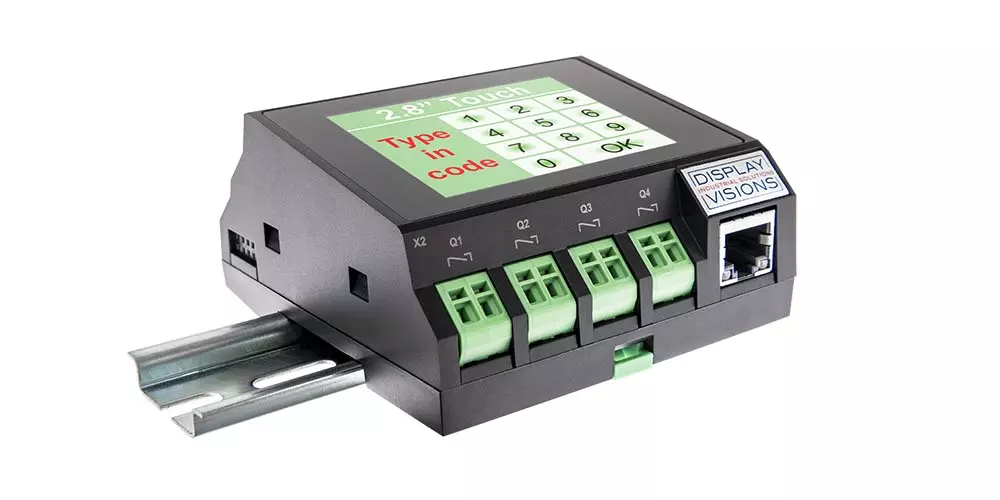

Small controller with display and touch

The slimline PLC control unit already has an integrated touch display. It can also be connected wirelessly to up to 50 satellite displays. Perfect for location-independent monitoring and control.
Normally, programming small controllers and reading out their parameters involves some effort. Not so here. A colour touch display is already integrated into the central control unit, the "Core". The brilliant 2.8-inch IPS panel is easy to read from almost any viewing direction and even in direct sunlight. It not only displays the measurement and process data, but can also be used to enter control commands and operating parameters thanks to its touch-sensitive surface. The Core has 8 digital and 4 analogue inputs (4-20 mA and 0-10 V) as well as 4 relay outputs.
-> Read more
