Electronica Trade Fair

electronica 10-13 November 2026 in munich

Approach - Car

Expertise and quality

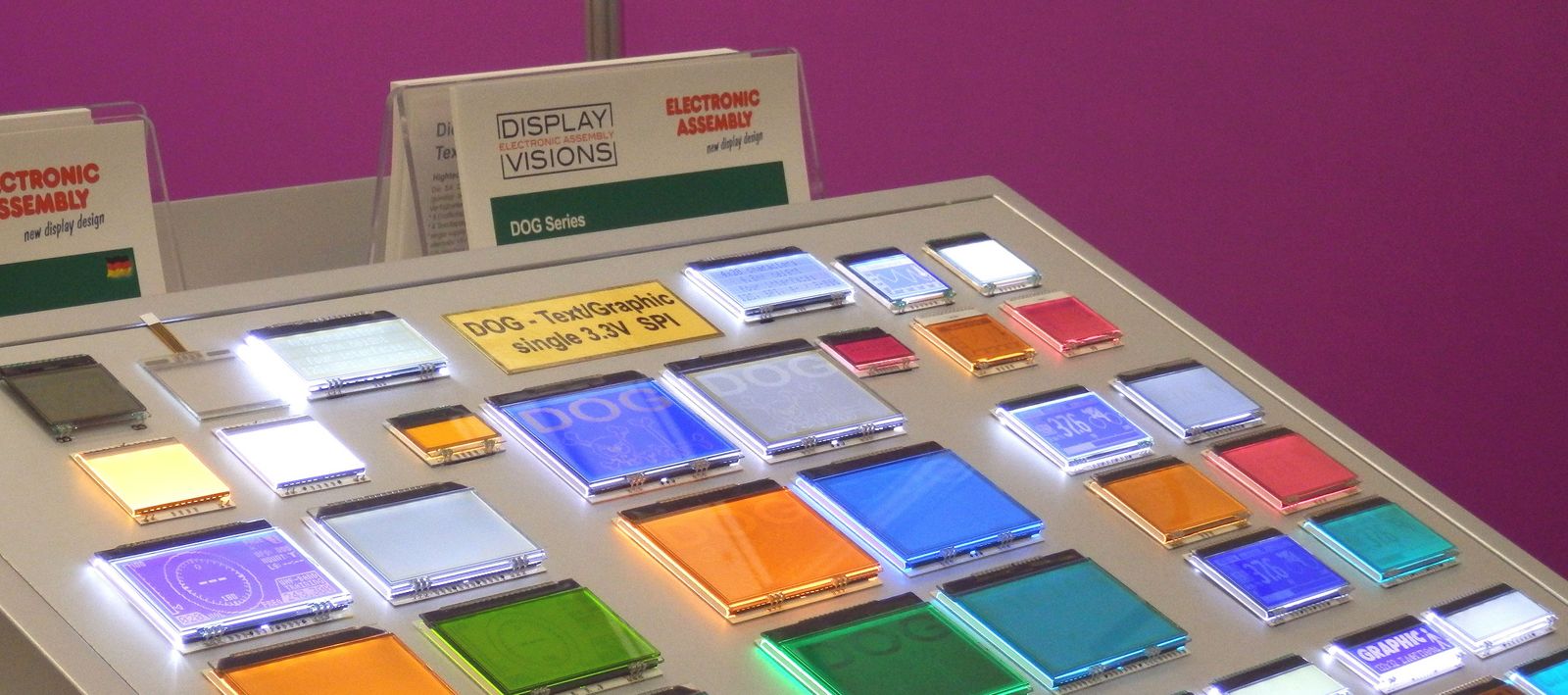

We will be showing more than 150 different displays in full operation at our newly designed exhibition stand.

Our colleagues from Sales and Development will be on hand every day to provide you with expert advice. You will receive professional information on all our displays.

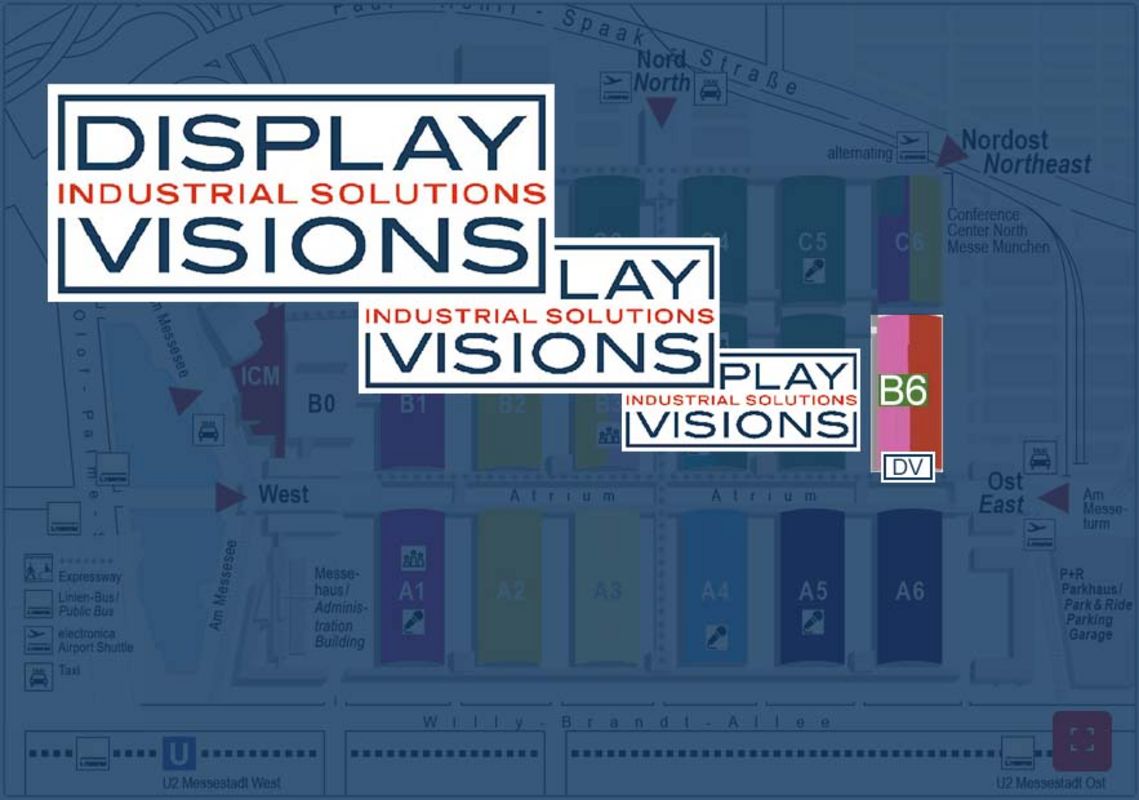

Hall B6. Right next to the information desk (click to enlarge)

This year, all display manufacturers have moved to a new hall: Hall B6. You’ll find us here again, right on the ‘main walkway’ next to the information desk. Stand B6.301.

This year's innovations for embedded world 2026

Highlight #1

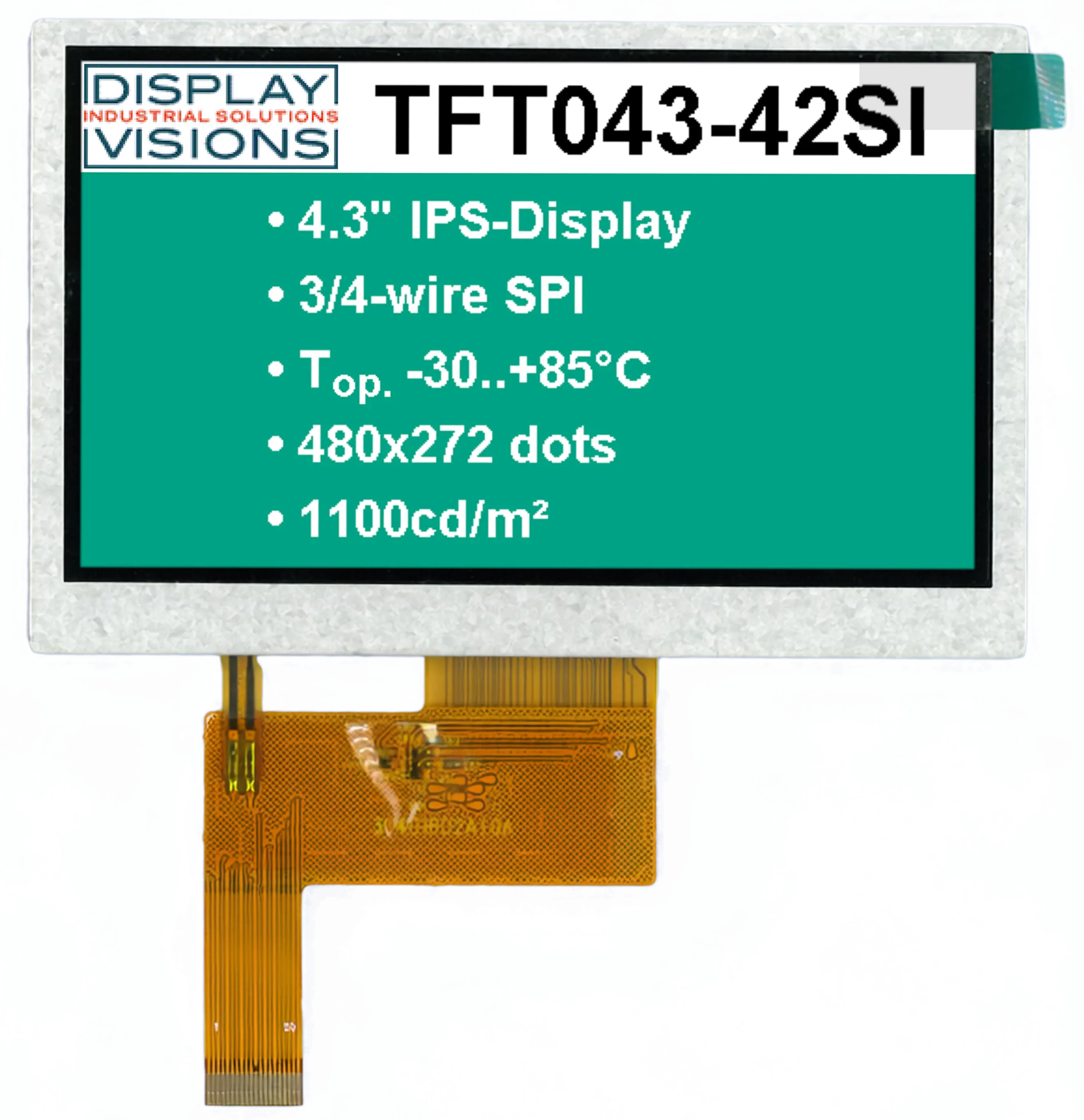

Cost-effective 4.3-inch SPI solution

The new EA TFT043-42SINN offers unrivalled contrast and viewing angles (>170°) alongside a simple 4-wire SPI interface. It can also be configured as a dual-SPI interface if required. With a clock rate of, for example, 30 MHz and 16-bit colour depth, a frame rate of up to 14 fps is therefore possible.

  • 4.3"
  • SPI interface
  • IPS, 1100 cd/m²
  • <€10 @1k (excl. VAT)
  • Adapter board, sample code, 3D STEP files

-> Find out more from the datasheet

Highlight #2

HMI with RS-232/UART

Ready-to-use, cost-effective displays: brilliant, bright and with a touch panel. Quick and easy to connect.

12V or 24V and a genuine RS-232 interface for transmitting measured values or error messages. Create customised screen pages using the free WYSIWYG tool ‘HMI Designer’ via drag-and-drop. You can then simply transmit the variable values or receive touch input via the RS-232. Switch between screen pages and integrate a password-protected area.

8–30 V DC / 9,600–921,600 baud

-> Further information

Highlight #3

Industrial MIPI/DSI interface

High-quality displays with touch panel and MIPI/DSI interface. Currently available in 3 sizes.

  • 4.3" – 7" – 10.1"
  • 2-lane / 4-lane MIPI
  • PCAP with robust touch
  • 1000 cd/m² (typ.)
  • on-board LED driver
  • only 1 connector/cable required (4.3")

-> Datasheet for EA MIP043-84

Highlight #3

Light guides for backlighting (e.g. EA DOG series)

High-quality light guides for use e.g. as a backlight for displays in the EA DOG family. Extremely cost-effective, as it can be fitted with a wide range of LED colours. Perfect illumination and high brightness levels of well over 2,000 cd/m² are possible.

The light guide is plugged directly onto the mainboard and the LEDs are positioned accordingly.

Currently available in 3 sizes: 54x23x3 mm, 54x39x3mm and 67.5x44x2.8 mm. For EA DOGM162, DOGM163, DOGM081, DOGM132, DOGM128, DOGL128.

From 1.50€ (net)

-> Data sheet for EA LED68x51-PC

Highlight #5

Micro colour display

With a diagonal of just 0.96 inches, the EA TFT009-81AINN colour display is ideal for installation in hand-held devices of all kinds. The wide viewing angle stability of the IPS panel guarantees excellent readability, even under the most adverse lighting conditions.

The new EA TFT009-81AINN LCD colour display is not even the size of a thumb. Nevertheless, there are 80 x 160 pixels on a surface measuring around one by three centimetres (diagonal 0.96 inches). These can be used to create razor-sharp graphic displays in colour or black and white. The powerful white LED backlight makes the display up to 500 cd/m² bright. This makes it easy to read even in direct sunlight or under bright operating theatre lamps.

-> Further information

Highlight #6

Brilliant and extremely bright with 900cd/m²

With a diagonal of 4" and external dimensions of 78x79x2 mm, the new EA TFT040-77AINN display is ideal for installation in hand-held devices or desktop devices.

The very high resolution of 720x720 pixels with a viewing angle of over 160° make this display a perfectly readable component in your high-quality system. It is controlled via a classic RGB interface.

The display can also be equipped with a touch panel as standard.

-> Further information

Highlight #7

Sunlight-readable colour display

The newly developed 2.4-inch TFT colour display is particularly suitable for mobile use due to its low power consumption. It requires just 10 mA power consumption at 3.3 V and shows crisp contrasts even in sunlight.
The new TFT024-23ATNN is a particularly economical colour display for use in mobile devices in the range. It is very easy to read both with and without illumination. Without illumination, the power consumption is only 35 mW. During an eight-hour working day, this is enough to charge a LiPo battery with no more than 75 mAh. The positive TFT panel with white background can be operated in both colour and black and white. The display is clearly legible even in glaring sunlight.

-> Further information
