240 x 64 Display for 19” Applications

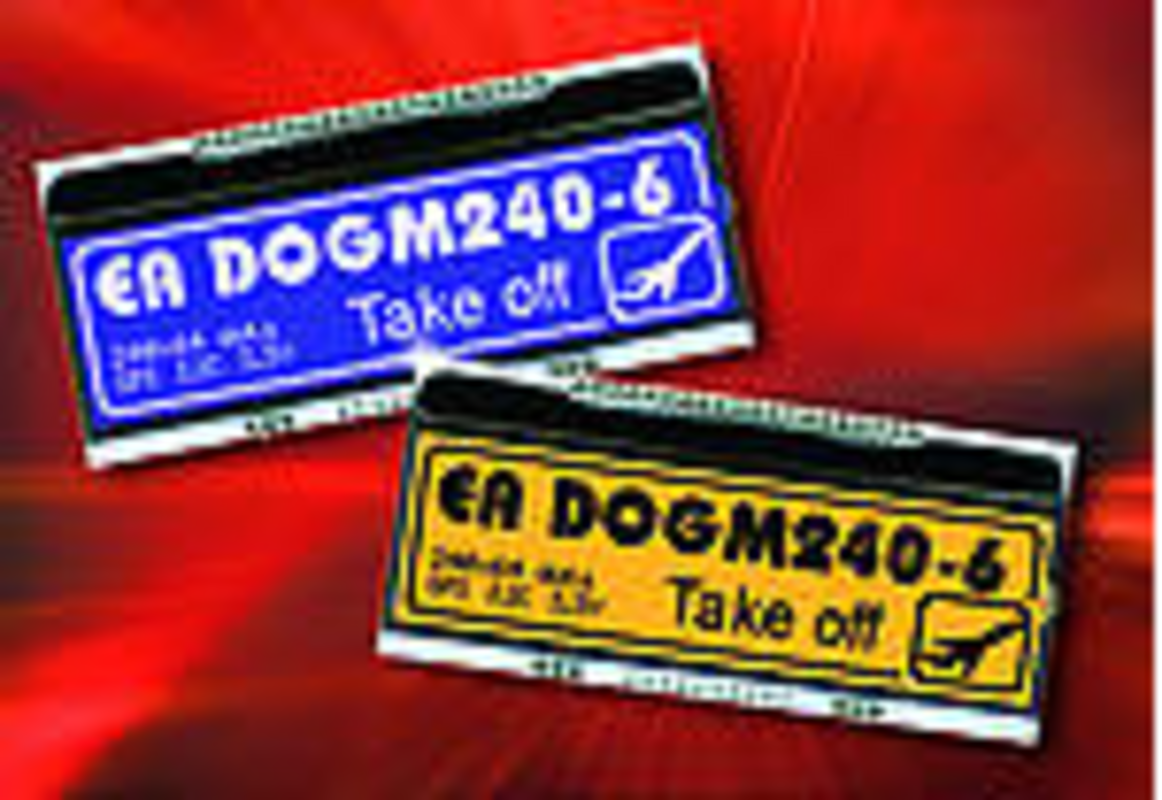

The EA DOGM240-6 is a new graphics display from  ELECTRONIC ASSEMBLY. It is available immediately as a complete package featuring high-contrast super-twist technology (STN and FSTN). Also a backlight can be supplied, the same as for a touch panel, and a USB test board can be ordered as an optional accessory. The display comes with the UC1611s controller and a built-in graphics RAM. There are 3 different LED backlights to choose from (white, amber and 2-color red/green). The display can be ordered with a white, black, blue or super -white reflective background. It runs on a standard 2.7V to 3.3V supply at temperatures between -20 and +70°C. Current consumption is typically  500µA. 3-wire and 4-wire SPI and I2C bus serial ports are available.
The long, compact display (94x40mm external dimensions) is ideal for installation on 19” systems with 1 RU or more. A simulator which runs under Windows is available as a download on the website (keyword “DOG Simulator”). It can be used to simulate all of the displays and colors without any hardware, making it very easy to view user-defined images and text that will appear on the display.
When the EA 9780-3USB test board is connected to the PC USB port, users can get an immediate impression of the display’s contrast, viewing angle and brightness.   Absolutely no software skills are needed and the display is automatically powered from the UBS port.
