Save images to e-Paper quickly and easily
The image remains stored in the display
This display retains its content for days and weeks without a power supply!
The display is a full graphic display with a resolution of 480x800 pixels and 3 colors red and black (plus white). The diagonal is 4".
A controller is already fitted on the display next to the driver IC. It can be controlled pixel by pixel via a simple SPI interface. Here you will find technical information and instructions on how to fill the display with your own content. Further information can be found in the
Datasheet
Show your own content
The easiest way to display your own content is with our EA 9782-2USB programmer board.
You can obtain this from our webshop. Together with a free Windows tool, you can then use your PC to permanently load any images and texts into the display.
Shop

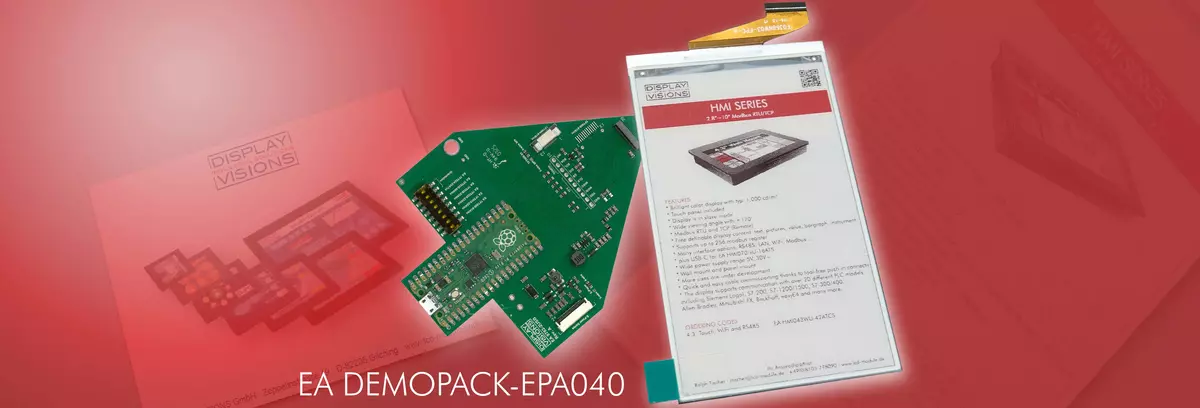

Connect the display
- Display and programmer are ready
- Connect the display to the programmer board
- On the right side you find a short video how to do
- USB: Connect the board to the PC
- Start the program startEPA.exe
- Click on “Download”
- ATTENTION: as long as the GREEN LED on the programmer board is BLINKING, do not unplug it
Which images can be displayed?
Images can be dragged and dropped directly from Windows Explorer into the startEPA.exe simulator window. Then click on "Download" to load the displayed content into the display. This takes approx. 20 seconds; do not unplug while the GREEN LED is flashing!
JPG, PNG and GIF files are automatically converted and displayed. It is best to use images in black and white or with reddish content (the display can show the colors white, black and red). The simulator tool automatically converts the existing resolution and colors in the best possible way.
Here you will find a complete description of the "startEPA.exe" tool:
