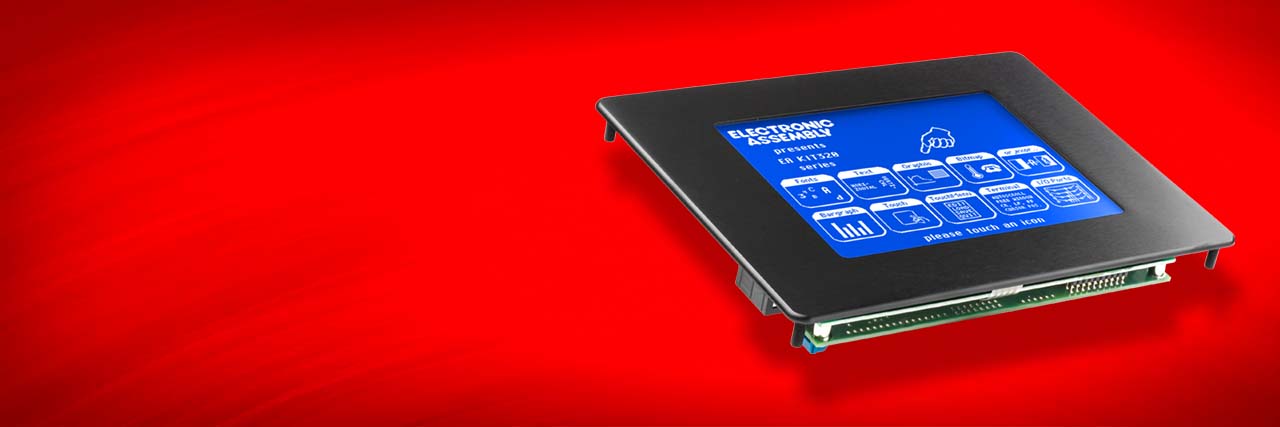

- Integrated touch panel, scratch-resistant, anti-glare
- CFL illumination (blue/white) or LED illumination (yellow/green)
- many character sets incl. 8-times zoom function
- High-level graphics functions (straight line, bar chart, menu)
- RS-232 or RS-422, 5V/12V/24V supply voltage
- Macro programming, storage of images and text
- 16 digital inputs and outputs with optocouplers as accessories
- Available immediately
- Various sizes from 120x32 up to 320x240 dots
- Windows® simulator software for demonstartion and development

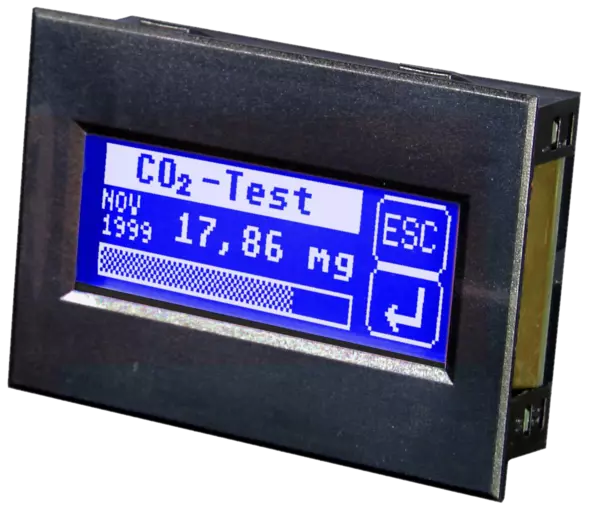

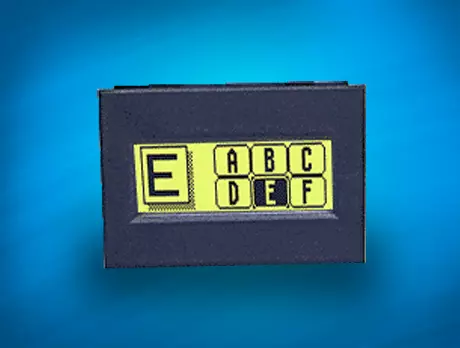

The EA KIT120-5LEDTP graphics kit (see photo above) is a fully assembled control and operating unit with a variety of integrated functions. As well as offering excellent super-twist contrast, the compact display can be put into operation immediately. It is controlled via the standard RS-232 or RS-422 interface. In addition to complete graphics routines for display output, the graphics kit also contains a wide variety of fonts.
High-level language-type graphics commands are used for programming. There is no longer any need for the time-consuming programming of character sets and graphics routines. There's no need for any driver software or programming tools. The ease of use offered by macros and input via touch panel make it a real power display. Have a look at the colored flyer! The graphics kit is designed to work with an operating voltage of +5V. A supply voltage of +9..36 V is also possible. Serial asynchronous data transfer is carried out in RS-232 or RS-422 format. The transmission format is set permanently to 8 data bits, 1 stop bit and no parity. Rates between 1200 bps and 115,200 bps can be selected by means of DIP switches. RTS and CTS handshake lines are available. All versions are supplied with an integrated touch panel. You can make entries and menu settings by touching the display. The labeling of the "keys" is flexible and can also be changed during runtime (different languages, icons). The drawing of the individual "keys" and the labeling or grouping of several fields is handled entirely by the integrated software. Programming the fields couldn't be simpler.

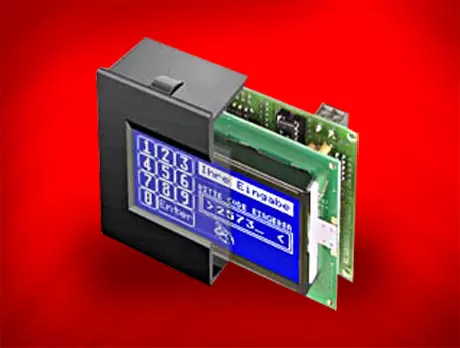

For a much better feeling just download the simulator software for windows (see table below) - there's no need for special installation! | Item
description | Resolution | Dimensions | Screen | Options | Fields | Notes | Data sheet | | KIT120-5LED | 120x32 | 68x39x24 mm | 2,4" | 9..36V,
Touch Panel | 5x2 | RS-232, Snap-In | KIT120 | | KIT129-6LW | 128x64 | 75x60x24 mm | 2,8" | 9..35V,
Touch Panel | 5x3 | RS-232, blue negative with LED-B./L.. | KIT129-6 | | KIT129J-6LW | RS-232, black-white, positive | | KIT160-6LW | 160x80 | 101x78x35 mm | 3,1" | 9..35 V,
RS-422,
Touch Panel | 8x4 | blue negative with white LED-B./L.. | KIT160-6 | | KIT160-6LED | LED-backlight y/gn, Snap-In-Case | | KIT240-6LW | 240x64 | 180x65x40 mm | 5,4" | 9..35 V,
RS-422,
Touch Panel | 12x4 | blue negative with white LED-B./L.. | KIT240-6 | | KIT240-6LED | LED-backlight yellow/green | | KIT160-7C | 160x128 | 140x102x36 mm | 5,1" | 9..35 V,
RS-422,
Touch Panel | 8x7 | blue negative with white CFL-B./L. | KIT160-7 | | KIT160-7LW | LED-backlight white | | KIT240-7C | 240x128 | 144x104x40 mm | 5,0" | 9..35 V,
RS-422,
Touch Panel | 10x6 | blue negative with white CFL-B./L. | KIT240-7 | | KIT240-7LED | LED-backlight yellow/green | | KIT320-8C | 320x240
¼ VGA | 156x121x36 mm | 5,9" | 9..35 V,
RS-422,
Touch Panel | analog | blue negative with white CFL-B./L. | KIT320-8 | | KIT320-8LW | black-white positive with LED-B./L. | The display is programmed by means of commands such as "Draw a rectangle from (0,0) to (64,15)". No additional software or drivers are required. Strings can be placed with pixel accuracy. Text and graphics can be combined at any time. Up to 16 different character sets can be used. Each one can be zoomed from 2 to 8 times. When the 8-times zoom is used with the largest character set (16x8), the words and numbers displayed fill the screen (= 128x64). By using internal macros, longer command strings can be defined quickly and easily. Compiler software is required for macro programming (see below). - Front panel for mounting (EA KIT129-6, KIT160-7, KIT240-6 and -7, KIT320-8)
A front panel made of anodized aluminum is available as an accessory. This allows the graphics kit to be mounted without any screws visible. Fitting it couldn't be simpler. The EA 0FP240-7 front panel is available in the colors black (SW) and blue (BL). The blue harmonizes very nicely with the CFL versions. You will find the dimensions and a photograph here. - Software for more fonts, pictures and macro creation: the ELECTRONIC ASSEMBLY LCD-Tools
- editor, compiler, simulator, examples, demos - Cable for PC
To enable simple connection to PCs (macro programming), we provide a 1.5m cable and a 9-pin SUB-D female connector (EA KV24-9B). Simply insert it into COM 1 or COM 2 and get started. Note: The cable is not suitable for the RS-422 version EA OPT-RS4224.
These displays are suitable for integration in smaller processor systems. All the graphics displays listed below contain a graphics controller that permits a direct connection to an 8-bit bus of a processor system. Commands for writing to and reading from the display RAM are thus available. Some controllers also offer an integrated 5x7-pixel character set.
The surface of the touch panel is anti-glare and scratch-resistant. Technology: resistive matrix touch with fixed fields. It is scanned in the same way as a membrane keyboard: by rows or columns.
The ¼VGA display offers analog touch, which works independently of rows and columns. In this case, an A/D converter is used. | | Technical specifications of the touch panel | | Specification | Min. | Typ. | Max. | Unit | | On resistance | 300 | | 10,000 | Ohms | | Voltage | 0.5 | | 5 | V | | Switching current | 10u | | 10m | A | | Actuating force | 150 | | 200 | g | | Contact bounce | | 10 | | ms | | Life | 1,000,000 | | | Switching cycles | | | Resolution | Dimensions | Viewing area | Illumination | Controller | Data sheet | Item no. | | 120x32 | 68x39mm | 62x22mm | LED | SED 1520 | 333KB | EA P120-5NLEDTP | | 128x64 | 93x70mm | 71x33mm | LED | KS 0107/8 | 382KB | EA P128-6N2LEDTP | | 75x46mm | 61x38mm | LED, blue-white | KS 0107/8 | 514KB | EA DIP128-6N5LWTP | | 160x80 | 93x70mm | 71x33mm | LED | HD 61830 | 378KB | EA C160-6NLEDTP | | 160x128 | 140x102mm | 101x82mm | CFL | T 6963C | 103KB | EA W160-7KHCTP | | 140x102mm | LED, blue-white | EA W160-7KHLWTP | | 240x64 | 180x65mm | 134x40mm | CFL | T 6963C | 396KB | EA W240-6K2CTP | | 180x65mm | LED | EA W240-6K2LEDTP | | 240x128 | 152x104mm | 114x64mm | CFL | T 6963C | 303KB | EA W240-7KCTP | | 144x104mm | LED | EA W240-7KLEDTP | | 320x240 | 156x120mm | 120x92mm | CFL | S1D13700 | 230KB | EA W320-8K3CTP | | 156x120mm | LED, blue-white | EA W320-8K3LWTP |
We support you in doing your own design. All standard touch panels we do have at stock. These touch panels do have a hard-coated and antiglare surface for best transparency and long life..
Even for 500 pcs. off we can do a customized version for you. To offer you a free quotation we do need a expressive drawing and the expected quantity.
| Count of fields | Active Area | Dimensions | Technic | Data Sheet | matching Display | | 5x2 | 56x21mm | 67x32mm | Matrix | 372k (german) | EA P120-5NLED | | 5x3 | 61x38mm | 68x45mm | Matrix | EA DIP128-6N5LW | | 8x4 | 67x33mm | 93x58mm | Matrix | EA W128-6N2LED | | 12x4 | 127x34mm | 161x60mm | Matrix | EA W240-6K2HLW | | 8x7 | 93x73mm | 114x96mm | Matrix | EA W160-7KHC | | 10x6 | 108x57mm | 128x80mm | Matrix | EA W240-7KHC | | 5,7" | 116x87mm | 133x105mm | Analogue 4-wire | EA P320-8K2C |
Additionally to our service, to have a phone call to our development engineers, and to contact them directly by email at technik(at)lcd-module.de, we provide some more informations and help. Initialisation examples, schematic, information for character set, USB driver you do find at our page SUPPORT.
