Contrast 1/2000: The new OLED technology provides a contrast ratio of minimum 2000:1 because of its deep black background and its active technology.

Our OLED displays are also very fast - even at -40°C. Operating temperature range is wide with -40..+80°C (-40..+176°F).

OLED

OLED: Displays of the Superlative

Displays of the Superlative

Now the worldwide first OLED display family with pins is available! Pins with pitch 2.54mm provide a much faster and easier design; just put the display directly on a breadboard and application.
More than this: even in mass production the pins facilitate all mounting needs automatically. There's no need for any mechanical construction: simply solder the display into a pcb or plug with sockets.

But there are more details that convince:

  • Top. -40..+80°C (-40..+176°F)
  • from ice cold to brooding heat
  • extreme wide viewing angle of more than 170°
  • contrast > 1:1000
  • display response time typ. 10µs (even at -40°C)

These displays come with an integrated controller and support SPI and I²C bus directly. Power supply is 3.3V (some as singe-supply).

Graphic- and text displays with pins

All versions do provide SPI and I²C bus interface



OLED displays
with pins
Ordering code Diagonale

Resolution

Dimensions
in mm

  Color Data Sheet Shop
EA OLEDS102-6GGA

1.7"

102x64

39x38x3.3 with cover glass yellow pdf
EA OLEDS102-6LGA 39x38x2.1 w./o. cover glass
EA OLEDM128-6GGA

2.3"

128x64

55x43x3.3 with cover glass yellow pdf
EA OLEDM128-6LGA 55x43x2.1 w./o. cover glass
EA OLEDM128-6LWA 55x43x2.1 white w./o. cover glass white
EA OLEDL128-6GGA

2.9"

128x64

68x51x3.3 with cover glass yellow pdf
EA OLEDL128-6LGA 68x51x2.1 w./o. cover glass
EA OLEDL128-6NGA 68x51x1.8 silver background
EA OLEDL128-6LWA 68x51x2.1 white w./o. cover glass white
EA OLEDM204-GGA

2.0"

4x20 / 2x20

61x26x3.3 with cover glasss yellow pdf
EA OLEDM204-LGA 61x26x21 w./o. cover glass





OLED Quick test via USB

OLED Quick test via USB

This is how fast you have never set up a display!

With the test board EA 9781-1USB.

Connect the test board to the PC, install the USB driver and plug in the display. Immediately you will see some demo pictures on your OLED display.

Individual pictures (monochrome) can be displayed by Drag&Drop operation easyly.

The display's SPI interface is connected to some eyelets and can be used at any time with your own µC system.

Download OLED-Simulator

Data sheet for EA 9781-1USB and Simulator

EA OLED: Continous operation without problems

Continous operation without problems

Finally, the new OLED displays from the company ELECTRONIC ASSEMBLY can also be installed in industrial applications. Thanks to the new, patented OLED technology, the displays achieve a lifetime of 50,000 to 100,000 hours, depending on the color and ambient temperature.

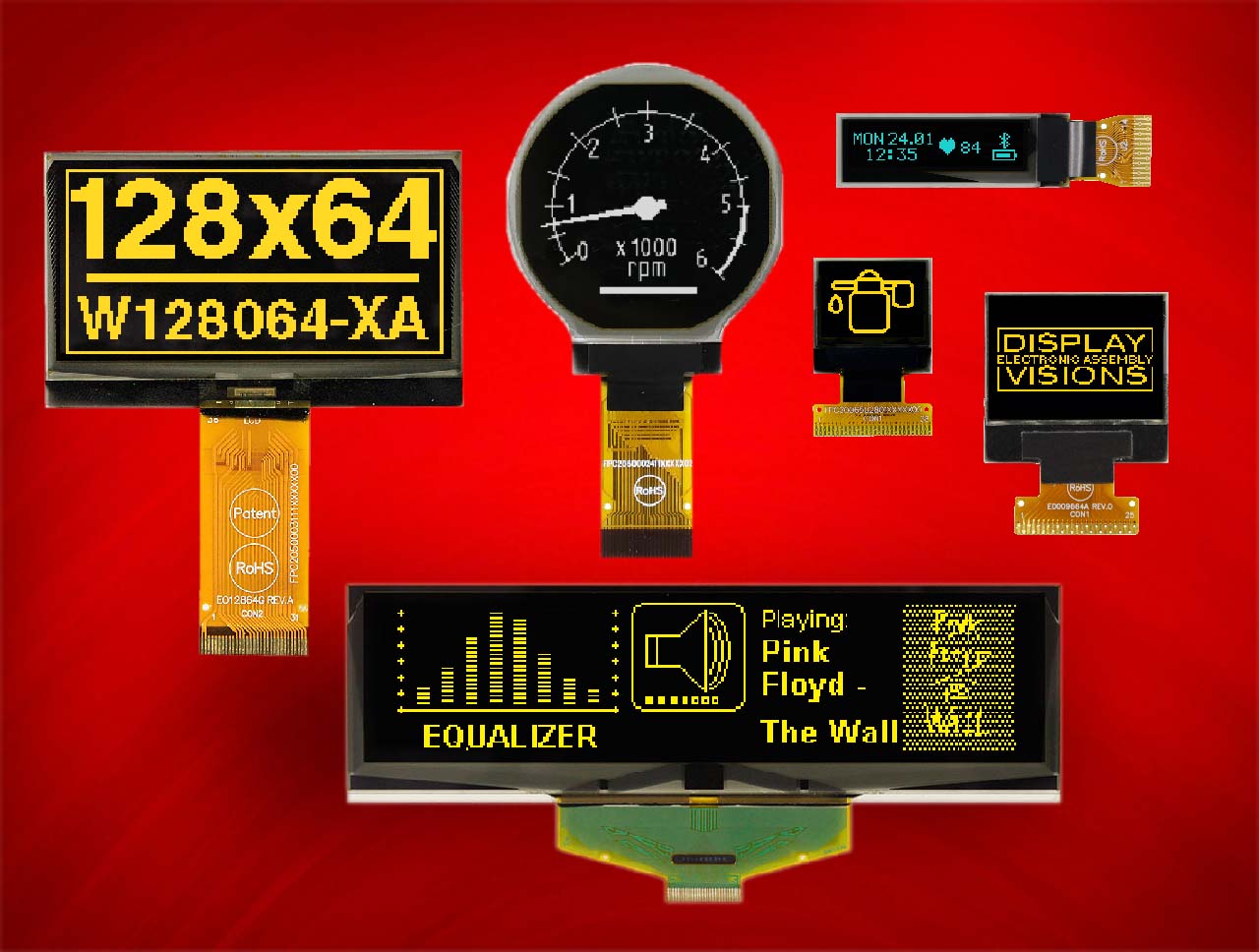

OLED: Small graphic displays with flax cable

Small graphic displays with flax cable

Whether round, whether square or extreme small with 29x9mm only, the new OLED displays from ELECTRONIC ASSEMBLY play their advantage for compact handheld applications: power saving, compact and with an extreme wide operating temperature of -40..+80°C range.

Interface is serial for every 3.3V system. Thanks to the integrated controller and a lot initialization examples it is easy to display measurement, graphics and icons quick and contrasty.

Graphic displays from 0,66 to 5,5"

All sizes and resolutions from 96x16 to 256x64 dots




OLED Graphic displays

Ordering code
DiagonaleResolution
Dimensions
in mm
Color
Data Sheet
Shop
EA W064048-XALG0.66"64x4818,46x18,1yellowpdf
EA W096016-XALB0.84"96x1629,1x9,2bluepdf
EA W096016-XALW0.84"96x1629,1x9,2whitepdf
EA W096064-XALG0.95"96x6424,9x22,95yellowpdf
EA W128128-XRLB1.18" round128x12836,98x41,23bluepdf
EA W128128-XRLG1.18" round128x12836,98x41,23yellowpdf
EA W128128-XRLW1.18" round128x12836,98x41,23whitepdf
EA W128128-XALG1.5"128x12833,8x36,5yellowpdf
EA W128032-XALG

2.2"

128x3262x24yellowpdf
EA W128064-XALG2.42"128x6460,5x37yellowpdf
EA W256064-XALG3.12"256x6488x27,8yellowpdf
EA W256064-XGLG5.5"256x64146x45yellowpdf





OLED: Character display

Character display 2x8..4x20

With it's well-known 4 bit and 8 bit parallel interface, the new OLED displays are similar to the HD44780 standard.

Character display 2x8..4x20


OLED Display


Ordering Code


Lines x
Chars


Char. Height
in mm


Dimensions
in mm


Color

Shop

EA W082-XLG


2x8


5.5


58x32


Yellow


EA W162-X3LG


2x16


5.5


80x36


Yellow


EA W162-X3LW


White


EA W162-X9LG


2x16


5.5


85x36


Yellow


EA W162-XLG


2x16


5.5


84x44


Yellow


EA W162-XBLG


2x16


8.9


122x44

Yellow

EA W162-XBLW


White


EA W202-XLG


2x20


5.5


116x37


Yellow


EA W202-XDLG


9.66

180x40 Yellow

EA W204-XLG


4x20


4.75


98x60


Yellow


Link to the data sheet: oled.pdf


Englisch, Japanse European, Cyrillic

The new OLED displays do provide all important character sets as a standard already: English, Japanese, European and Cyrillic. Especially for the cold northern countries in Europe the new OLED displays are a perfect solution: full functionality in combination with cyrillic characters.
They also do provide a very fast display response time even at icy temperatures of -40°C. And the life time with such temperatures is no more a problem.

4-/8- Bit and SPI Interface

Besides the typical 4 and 8 bit interface for Z80 and 6800 systems all displays do provide the option for a SPI interface with MOSI, MISO, CS and CLK.

In the graphics displays, we increasingly renounce on parallel connection and focus more and more on the serial interfaces SPI and I²C bus.

5V and 3.3V

The new OLED are in both worlds: single supply operation with 5V and 3.3V without modification. The current consumption is, depending to the display size and content, between 15~50mA (typ.). The highest brightness can be reached with 5V operation.

Our OLED graphic displays do mainly support 3.3V supply.
