Replacing a 128x64 by TFT color display?

Replacing a 128x64 by TFT color display?
IPS Technology

You like to replace your 128x64 graphics display (monochrome) with a color display? We have the solution and show you how to do.

Our TFT color displays with 2.0" / 2.8" / 3.5" are the further development of the widespread black&white graphic displays: simply connected via SPI interface and therefore suitable for all μC. Alternatively, these small TFTs can also be connected via the classic RGB interface or an 8- or 16-bit data bus.

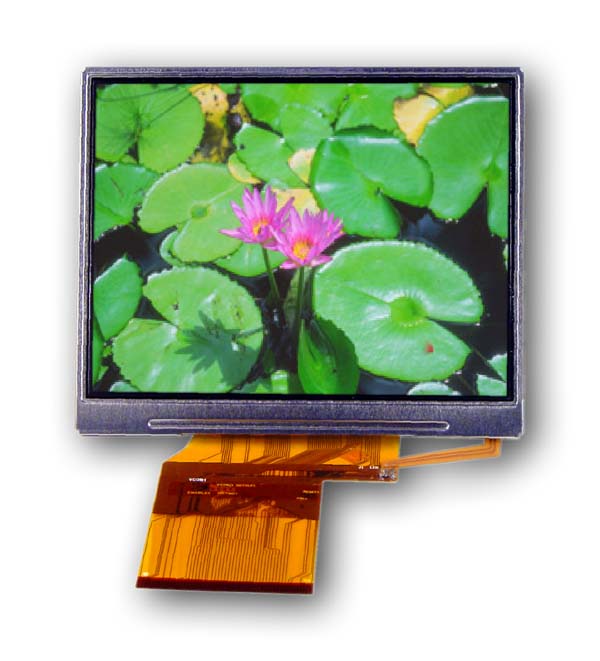

With its 2" diagonal, the EA TFT020-23AI is indeed a tiny, but the fine resolution of 240x320 pixels conjures up brilliant images at crispy 1000cd/m². The IPS technology provides a gigantic all-round viewing angle with sunlight readability:

Sonnenlichtlesbare TFT (IPS) Display für die Industrie und Medizintechnik

IPS and TFT Displays for industry and medicine

High-grade TFT displays in IPS for industry and medicine

The displays have been developed especially for industrial applications and are available for long term. The lifetime is 50,000 hours and the operating temperature range is from -20°C to +70°C.

For the backlighting, bright high-quality LEDs are installed. With a brightness of more than 1000cd/m² they are readable even at direct sunlight.

Normally the displays are available ex stock in long term.

IPS Displays

IPS Technology - Viewing Angle >170°

Ordering Code

Size

IPS

Dimension

Resolution

Touchpanel

Shop

Datasheet

EA TFT009-81AINN 0.96" IPS 13.5 x 27.9 x 1.5 80x160     Link
EA TFT020-23AINN 2.0" IPS 36.0 x 52.0 x 2.2 320x240   EA Shop Link
EA TFT020-23AITC IPS 43.0 x 65.0 x 4.2 PCAP
EA TFT028-23AINN 2.8" IPS 48.0 x 68.0 x 2.2 320x240   EA Shop Link
EA TFT028-23AITC IPS 58.0 x 84.0 x 4.3 PCAP
EA TFT035-34AINN 3.5" IPS 54.7 x 82.9 x 2.2 480x320   EA Shop Link
EA TFT035-34AITC IPS 65.0 x 100.0 x 4.4 PCAP
EA TFT043-42BITC 4.3" IPS 114.0 x 84.0 x 4.8 480x272 PCAP EA Shop Link
EA W800X-50AILW 5.0" IPS 124.0 x 78.5 x 9.1 800x480   EA Shop Link
EA R1024X-70BLW 7.0" IPS 164,9 x 100,0 x 5,7 1024x600   EA Shop Link
EA W1280X-101ALW 10.1" IPS 235 x 161 x 13,1 1280x800   EA Shop Link

Industrial TFT Displays

Long term availability and high quality. Available with and without touch panel.

In addition, a lot of support thanks to many years of experience in the control and use of TFT displays.

Also available as complete HMI with SPI, RS-232 and USB.

TFT Displays

TFT Displays - with and without touchpanel

Ordering Code

Size

Dimension

Resolution

Touchpanel

Shop

Datasheet

EA TFT035-32ANN

3.5"

76.9 x 63.9 x 3.26

320x240

-

EA Shop

Link

EA TFT035-32ATS

PCAP

Link

EA TFT035-32ATP

Resistive

Link

EA TFT043-42ANN

4.3"

105.5 x 67.2 x 3.0

480x272

  EA Shop

Link

EA TFT043-42ATS

PCAP

Link

EA TFT043-42ATP

Resistive

Link

EA TFT050-84ANN

5"

120.7 × 75.8 ×2.8

800x480

  EA Shop Link
EA TFT050-84ATS PCAP Link
EA TFT050-84ATP Resistive Link
EA TFT052-41ANN

5.2"

140.4 x 49.9 x 3.0

480x128

  EA Shop Link
EA TFT052-41ATS

PCAP

Link
EA TFT052-41ATP

Resistive


EA TFT057-32ANN

5.7"

141.1 x 101.6 x 6.5

320x240

  EA Shop

Link

EA TFT057-32ATS

PCAP

Link

EA TFT057-32ATP

Resistive

Link

EA TFT070-84ANN

7"

165.0 x 100 x 5.8

800x480

  EA Shop

Link

EA TFT070-84ATS

PCAP

Link

EA TFT070-84ATP

Resistive

Link

FSTN Graphic Display with SPI and backlight, low power

Monochrome Graphic Displays in STN and FSTN

Specific information on each individual display can be found in the table below under "Data sheet".

For reliable and compact applications, the COG displays from the EA DOG series are ideally suited: super-flat, 3.3V, low-power with SPI interface and available in at least 16 different colour combinations. Among many different sizes you will find the perfect display not only for your medical or industrial application.

MONOCHROME LCD GRAPHIC DISPLAYS

Item
description
Resolution Dimensions Bezel Controller Ill. Touch Vee Data
sheet
Pixels W x H x D
EA P098-5NLED 98x32 52x44x13

SED 1520 onboard

LED



-1.5V P098-5
EA DOGS102-6 102x64 39x40x5   integr. UC1701 LED

yes

built in DOGS102-6
EA T120-5 120x32 68x39x8 017-8U PT6520
onboard
LED

yes

-1V T120-5
EA DIP122-5NLED 122x32 68x27x11   LED



-1V DIP122
EA P122-5NLED 122x32 84x 44x14 0090-122 LED



-2V P122-5N
EA DOGM132-5 132x32 55x31x2   integr. ST7565 LED   built in DOGM132-5
EA DOGM128-6 128x64 55x46x2   LED

yes

built in DOGM128-6
EA W129W-6X9HLW 128x64 56x43x3   LED   built in W129W-6X
EA DOGL128-6 128x64 68x51x3   LED

yes

built in DOGL128-6
EA W128-6N2LED 128x64 93x70x14 0099-KE integr.
KS 0107/8
LED

yes

built in W128-6N2
EA DIP128-6N5LW 128x64 75x46x11   LED

yes

built in DIP128-6
EA DIP128J-6N5LW 128x64 75x46x11   LED

yes

built in
EA P128-6N3LED 128x64 84x60x11   LED



built in P128-6N3
EA P128-6N7LED 128x64 75x53x9 017-17U LED



-5V P128-6N7
EA DOGXL160-7 160x104 78x64x6   integr. UC1610 LED

yes

built in DOGXL160-7
EA W160B-6NLW 160x80 93x70x14 0099-KE LC7981
onboard
LED

yes

built in W160-6
EA W160-7KHLW 160x128 140x102x19 017-18U T 6963C
onboard
LED

yes

built in W160-7
EA DIP180B-5NLW 180x32 102x27x11   SED 1520 LED yes -3V DIP180
EA DOGM240-6 240x64 94x38x6   integr. UC1611 LED yes built in DOGM240-6
EA DOGXL240-7 240x128 94x64x6   LED yes built in DOGXL240-7
EA eDIP240B-7 240x128 113x70x11 0FP241-7 Intelligent ! LED

yes

built in eDIP240-7
EA W240-6K2HLW 240x64 180x65x15 017-10U T 6963C
onboard
LED

yes

built in W240-6
EA DIP240B-7KLW 240x128 113x70x11   LED

yes

built in DIP240-7
EA W240-7K2C 240x128 170x105x14   CFL



built in W240-7K2
EA W240-7KHLEDB 240x128 144x104x14 0FP240-7 LED

yes

built in W240-7
EA W240-7KHLW 240x128 152x104x14 0FP240-7 LED

yes

built in
EA eDIP320B-8 320x240 138x105x10 0FP321-8 Intelligent ! LED yes

built in

eDIP320-8
EA W320W-8K3LW 320x240 156x120x21 0FP320-8 S1D13700 onboard LED

yes

built in W320-8K3
Intelligent Displays with RS-232, SPI and I²C

Intelligent Displays with RS-232, SPI and I²C

Built-in character sets, graphic functions, adjustable backlight, full touch panel support; these are world-wide unique features. No more working with pixel, but using more than 112 powerful graphic functions. With integrated FLASH for more fonts, pictures and macros. Last but not least there is a cost-free simulator software for the EA eDIP240-7 and a starter kit with USB. Read more about this fine displays on our page eDIP.
