Displays with RS-232

(Character - Graphic - 7-Segment)

Serial devices with RS-232/RS-422



Serial devices with RS-232/RS-422

Our serial devices are a dot-matrix LCD series of products that are ready for operation with a driver and a bezel or a snap-in housing. They are connected to a standard RS-232C interface (or, optionally, an RS-422). The data transmission rate can be set to 300, 1,200, 2,400 or 9,600 bps. All cursor control (line feed etc.) is automatic. The displays are equipped with LED lighting that can be switched off by software means.
All displays except for 8- and 16-line displays are available for a 5V or 9-35V supply.
Addressing: Thanks to selectable addresses, up to 64 displays can be addressed separately at a serial interface (EA OPT-DIP6).

 Prices as of 25 items begin at 78.22 euros*). Smaller quantities can also be delivered at short notice. You will find more information in our data sheet in PDF.

*) Prices quoted are inclusive of 19% sales tax.

Serial displays with RS-232C/RS-422 and LED lighting
Product Lines x
characters
Character
height
Module size
WxHxD
Viewing area
WxH
Including
bezel
Power
(typically)
1-line displays

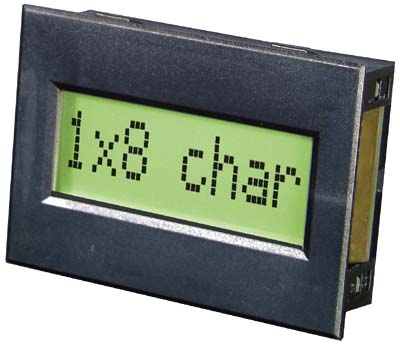

EA SER081-92NLED
1 x 8
11.48 mm 77x54x26 56.5x22 Snap-in housing 120 mA
EA SER081-CNLED
1 x 8
10.8 mm 84x44x26 61x15.8 017-2UKE 30 mA
EA SER161-DNLED
1 x 16
6.56 mm 80x36x27 64.5x13.8 017-1UKE 100 mA
EA SER161-ENLED
1 x 16
9.66 mm 122x33x27 99x13 017-6UKE 170 mA
2-line displays
EA SER082-CNLED
2 x 8
11.44 mm 84x44x27.5 63x25 017-8UKE 90 mA
EA SER162-N3LW blue
2 x 16
5.55 mm 80x36x27 61x15.8 017-2UKE 40 mA
EA SER162-CNLED
2 x 16
4.35 mm 80x36x27 64.5x13.8 017-1UKE 90 mA
EA SER162-NLED
2 x 16
5.55 mm 84x44x27 61x15.8 017-2UKE 120 mA
EA SER162-NLW blue
2 x 16
5.55 mm 84x44x27 64.5x16 017-2UKE 40 mA

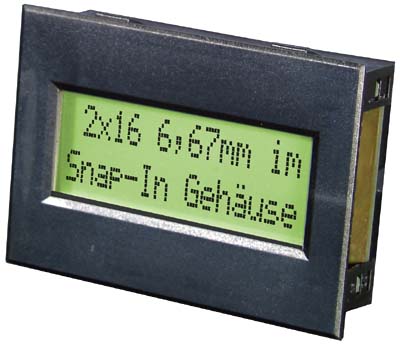

EA SER162-92NLED
2 x 16
6.68 mm 77x54x26 56.5x22 Snap-in housing 120 mA
EA SER162-BNLED
2 x 16
9.66 mm 122x44x29 99x24 017-12UKE 360 mA
EA SER162-BNLW blue
2 x 16
9.66 mm 122x44x29 99x24 017-12UKE 65 mA
EA SER202-NLED
2 x 20
5.55 mm 116.5x39x29 85x18.6 017-7UKE 210 mA

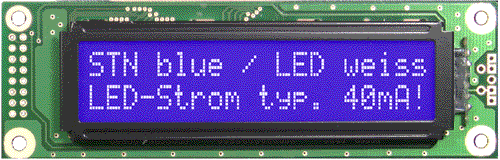

EA SER202-NLW blue
2 x 20
5.55 mm 116.5x39x26 85x18.6 017-7UKE 40 mA
EA SER202-BHNLED
2 x 20
9.20 mm 146x43x27 123x23 --- 270 mA
EA SER242-NLED
2 x 24
5.55 mm 118x36x27 93.5x15.8 017-14UKE 150 mA
EA SER242-BNLED
2 x 24
9.66 mm 208x40x29 178x23 --- 190 mA
EA SER402-NLED
2 x 40
5.55 mm 182x33.5x29 154.1x15.3 017-4UKE 150 mA
EA SER402-NLW blue
2 x 40
5.55 mm 182x33.5x27 154.1x15.3 017-4UKE 40 mA
4-line displays
EA SER164-NLED
4 x 16
4.75 mm 87x60x27 61.8x25.4 017-8UKE 220 mA
EA SER204-92NLED
4 x 20
3.72 mm 77x54x26 56.5x22 Snap-in housing 120 mA
EA SER204-4NLED
4 x 20
4.03 mm 80.5x47x29 60x22 --- 90 mA
EA SER204-NLED
4 x 20
4.75 mm 98x60x29 76x25.2 017-9UKE 260 mA

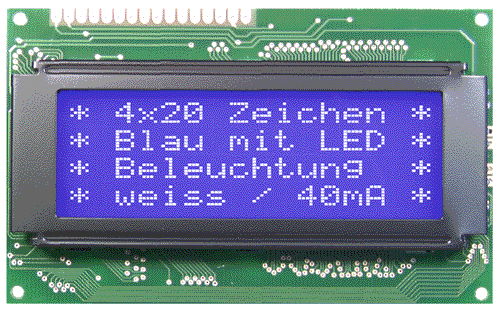

EA SER204-NLW blue
4 x 20
4.75 mm 98x60x29 76x25.2 017-9UKE 45 mA
EA SER204-BNLED
4 x 20
9.2 mm 146x62.5x27 123x42.5 017-25KE 810 mA
EA SER404-HNLED
4 x 40
4.89 mm 190x54x29 147x29.5 017-13UKE 440 mA
EA SER404-NLW blue
4 x 40
4.89 mm 190x54x29 147x29.5 017-13UKE 75 mA
8-line displays
EA SER408-NLED
8 x 40
4.2 mm 180x65x27 134x40 017-10UKE 300 mA
16-line displays
EA SER4016-NLED
16 x 40
3.6 mm 144x104x27 114x64 --- 700 mA

Dynamic Dotmatrix Displays

Dynamic Dotmatrix Displays



Dynamic dot-matrix modules permit 4 different font sizes to be displayed simultaneously. As a result, text or measurement values can be highlighted and are thus also visible from some distance. In this way, highly individual on-screen displays are made possible without the need for an expensive graphics module. Even small graphics such as icons or company logos can be loaded via the integrated RS-232 interface. All displays are equipped with LED lighting.

Prices if you order 25 or more dynamic displays are between 53.30 and 195.30 euros*). Smaller quantities can also be delivered at short notice. More information is available in our data sheet, which is available in PDF format (german).

*) Prices quoted are inclusive of 19% sales tax.

Dynamic dot-matrix modules
Product Font 0 Font 3 Module
size
Viewing
area
Connection Baud
rates
Power consumption Notes
EA DYN164-NLED 4x16/3.4mm 2x8/6.8mm 52x44x27 46x18.5 RS-232 9600 90 mA Other baud
rates poss.
EA DYN204-NLED 4x20/4.5mm 2x10/9.0mm 68x39x20 62x22.4 RS-232 300..9600 90 mA
EA DYN218-N2LED 8x21/3.6mm 4x10/7.2mm 93x70x28 71.6x40 RS-232 or
RS-422
300..9600 200/220 mA
EA DYN218-N3LED 8x21/3.6mm 4x10/7.2mm 84x60x26 59.4x38 RS-232 or
RS-422
300..9600 160/180 mA
EA DYN308-NLED 8x30/3.7mm 4x15/7.4mm 180x65x29 134x40.2 RS-232 300..9600 460 mA Wide font
EA DYN3016-NLED 16x30/3.1mm 8x15/6.2mm 144x104x29 114x64 RS-232 300..9600 860 mA Wide font
EA DYN408-NLED 8x40/3.7mm 4x20/7.4mm 180x65x29 134x40.2 RS-232 300..9600 460 mA
EA DYN4016-NLED 16x40/3.1mm 8x20/6.2mm 144x104x29 114x64 RS-232 300..9600 860 mA


Fixed-text displays for 64 messages

All fixed-text displays have an EEPROM on board. Up to 64 single- or multi-page texts can be stored there and edited at any time. The texts can be called by means of a command issued via the serial interface or by applying a voltage (EA TXT-xxxNLED series). For this purpose there are 6 digital inputs available. They respond to voltages of between 3V and 60V.
The integrated LED backlighting ensures excellent contrast and allows the display to be read easily even in poor light.

Prices for the fixed-text displays if you order 25 are between 91.18 and 279.49 euros*). Smaller quantities can also be delivered at short notice. You will find more information in our data sheet in PDF format.

*) Prices quoted are inclusive of 19% sales tax.

Displays with a text memory, RS-232C and 6 digital inputs
Product Lines x
characters
Character
height
Module size
WxHxD
Viewing area
WxH
Including
bezel
Power
(typically)
EA TXT162-CNLED 2 x 16 4.35 mm 80x36x27 64.5x13.8 017-1UKE 90 mA
EA TXT162-NLED 2 x 16 5.55 mm 84x44x27 61x15.8 017-2UKE 120 mA
EA TXT162-BNLED 2 x 16 9.66 mm 122x44x27 99x24 017-12UKE 360 mA
EA TXT202-NLED 2 x 20 5.55 mm 116.5x39x27 85x18.6 017-7UKE 210 mA
EA TXT202-BHNLED 2 x 20 9.20 mm 146x43x27 123x23 017-24KE 270 mA
EA TXT242-NLED 2 x 24 5.55 mm 118x36x27 93.5x15.8 017-14UKE 150 mA
EA TXT402-NLED 2 x 40 5.55 mm 182x33.5x27 154.1x15.3 017-4UKE 150 mA
EA TXT164-NLED 4 x 16 4.75 mm 87x60x27 61.8x25.4 017-8UKE 220 mA
EA TXT204-NLED 4 x 20 4.75 mm 98x60x27 76x25.2 017-9UKE 260 mA
EA TXT204-BNLED 4 x 20 9.2 mm 146x62.5x27 123x42.5 017-25KE 810 mA
EA TXT404-HNLED 4 x 40 4.89 mm 190x54x27 147x29.5 017-13UKE 440 mA


Graphics unitsEA GE128-7KV24

Graphics unitsEA GE128-7KV24



LCD graphics units are intelligent graphics displays with a serial RS-232 interface. Two or three integrated character sets and a wide range of graphics functions permit the time- and cost-saving use of the latest LCD graphics displays. Apart from a supply voltage of +5V and RS-232 data, no further signals are required. No additional software or special drivers are required for their operation. All the graphics routines are integrated in the display's in-built high-level graphics controller. This permits the creation of a clear and attractive display using only a few commands. All functions are positioned with pixel accuracy by means of x/y coordinates (e.g. draw straight line: G x1 y1 x2 y2).
Prices for all graphics units if you order 25 are between 70.25 and 212.23 euros*). You will find more information in the relevant data sheets in PDF format.

*) Prices quoted are inclusive of 19% sales tax.

 Product  Resolution  Dimensions  Fonts  Option  Notes  Data sheet Photograph

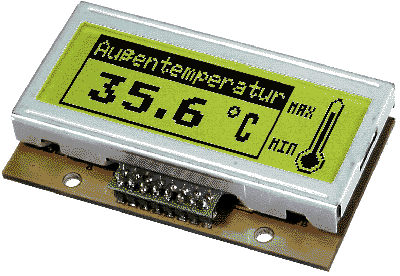

 EA GE120-5NV24  120x32  68x39x13  2 + zoom    LED lighting  GE120

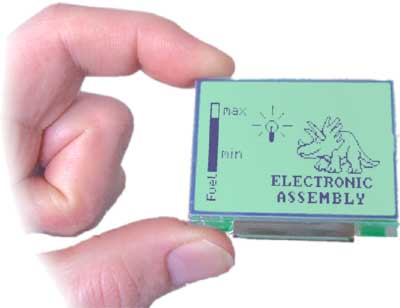

 EA GE128-6N9V24  128x64  57x46x7.5(15)  5 + zoom    EL lighting  GE128-69

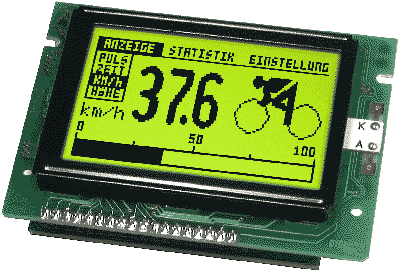

 EA GE128-6N3V24  128x64  84x60x24  3 + zoom  DIP6  LED lighting  GE128-6
 EA GE240-6KV24  240x64  180x65x28  3 + zoom  DIP6  LED lighting   GE6963




 EA GE240-6KCV24  240x64  189x65x36  3 + zoom  DIP6  Negative FSTN blue, CFL lighting
 EA GE240-7KV24  240x128  144x104x28  3 + zoom  DIP6  LED lighting
 EA GE240-7KCV24  240x128  151x104x36  3 + zoom  DIP6  Negative FSTN blue, CFL lighting

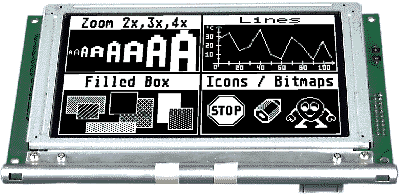

 EA GE240-7K2CV24  240x128  170x105x36  3 + zoom  DIP6  Negative FSTN black/white,CFL lighting






Graphics kits in housing/with front panel - EA KIT160

Graphics kits in housing/with front panelEA KIT128



ELECTRONIC ASSEMBLY offers 3 LCD graphics displays in different sizes in a snap-in housing: EA KIT120, KIT129 and KIT160. 3 further sizes are available with an anodized mounting panel in black or blue: EA KIT240-6, KIT240-7 and KIT320-8. They are controlled via either an RS-232 or an RS-422 interface.
A range of integrated fonts and graphics commands make it easy to program these displays: All functions are programmed with pixel accuracy by means of x/y coordinates (e.g. draw straight line: ESC G x1 y1 x2 y2). All displays are also available with an integrated touch panel: This allows you to make entries or change the contents of the screen by touching it.
Smaller quantities can also be delivered at short notice. You will find more information on the touch panel versions in our internet page "TOUCH"


High-level graphics controllersEA IC6963

High-level graphics controllersEA IC6963



Has anyone not yet heard about how limited the command set of the HD 61202, SED 1520 or T6963C graphics controllers is? Often there is not even an integrated character set, let alone fonts of different sizes, straight-line routines and so on. ELECTRONIC ASSEMBLY is now offering for the first time a kind of “interpreter IC” with a high-level language as an add-on for many standard displays: And all this in a PLCC44 SMD housing. In spite of there being just 4 external parts (1 quartz and 3 capacitors), there are, among other things, 3 character sets of different sizes and a host of graphics functions available to you. Each function applies with pixel accuracy by means of coordinate entries (in “text mode” as well). You will find more information in our data sheets in PDF format. EA IC1520 / EA IC202 / EA IC6963. Samples can be delivered from stock (for 19.57 or 26.10 euros*) each).
