Graphic Displays
 LCD graphics displays in a variety of sizes and resolutions up to 5.7".
Besides the standard displays we also do provide some with Built-in Intelligence, Control Units with Touch Panel and serial
interface RS-232, SPI or I²C bus.
Many displays already have an integrated controller. This enables individual pixels to be set and deleted. In addition, the T6963C controller permits the use of an integrated 6x8 character
set.
The various displays are available both without illumination and with a variety of types of illumination:
- LED illumination: yellow/green in color, problem-free 5V= supply voltage, extremely long life with 100,000 h
- LED illumination white/blue: 5V= supply voltage, half-brightness 10,000~50,000h long life, blue design
- EL foil: blue, requires an EL inverter, energy-saving, limited life
- CFL tube: white, CFL inverter required, very bright, only possible with larger displays
Accessories for graphics displays include appropriate High-Level-Graphics-Controllers, character sets, bezels and illumination inverters.
 You will find specific information on each display in the table below under "Data sheet".
Detailed information on the programming of the different controllers is provided here: Data sheet for the integrated Graphic Controller.
New are the TFT Color-Displays with 3.5", 4.3" and 5.7". They do provide a digital interface with 3x8 = 24 bit (16 million colors). The backlight is realised with
high-efficiency LED's.
New and very compact are also the EA DOG displays: super flat, 3.3V single supply, SPI interface and min. 16 different color combinations.
|
STANDARD MODULES
|
Item
description
|
Resolution
|
Dimensions
|
Bezel
|
Controller
|
Ill.
|
Touch
|
Vee
|
Data
sheet
|
|
|
Pixels
|
W x H x D
|
|
EA P098-5NLED
|
98x32
|
52x44x13
|
|
SED 1520
onboard
|
LED
|
|
-1.5V
|
P098-5
|
|
EA DOGS102-6
|
102x64
|
39x40x5
|
|
integr. UC1610
|
LED
|
yes
|
built in
|
DOGS102-6
|
|
|
EA T120-5
|
120x32
|
68x39x8
|
017-8U
|
SED 1520
onboard
|
LED
|
yes
|
-1V
|
T120-5
|
|
|
EA DIP122-5NLED
|
122x32
|
68x27x11
|
|
LED
|
|
-1V
|
DIP122
|
|
|
EA P122-5NLED
|
122x32
|
84x 44x14
|
0090-122
|
LED
|
|
-2V
|
P122-5N
|
|
|
EA DOGM132-5
|
132x32
|
55x31x2
|
|
integr. ST7565
|
LED
|
|
built in
|
DOGM132-5
|
|
|

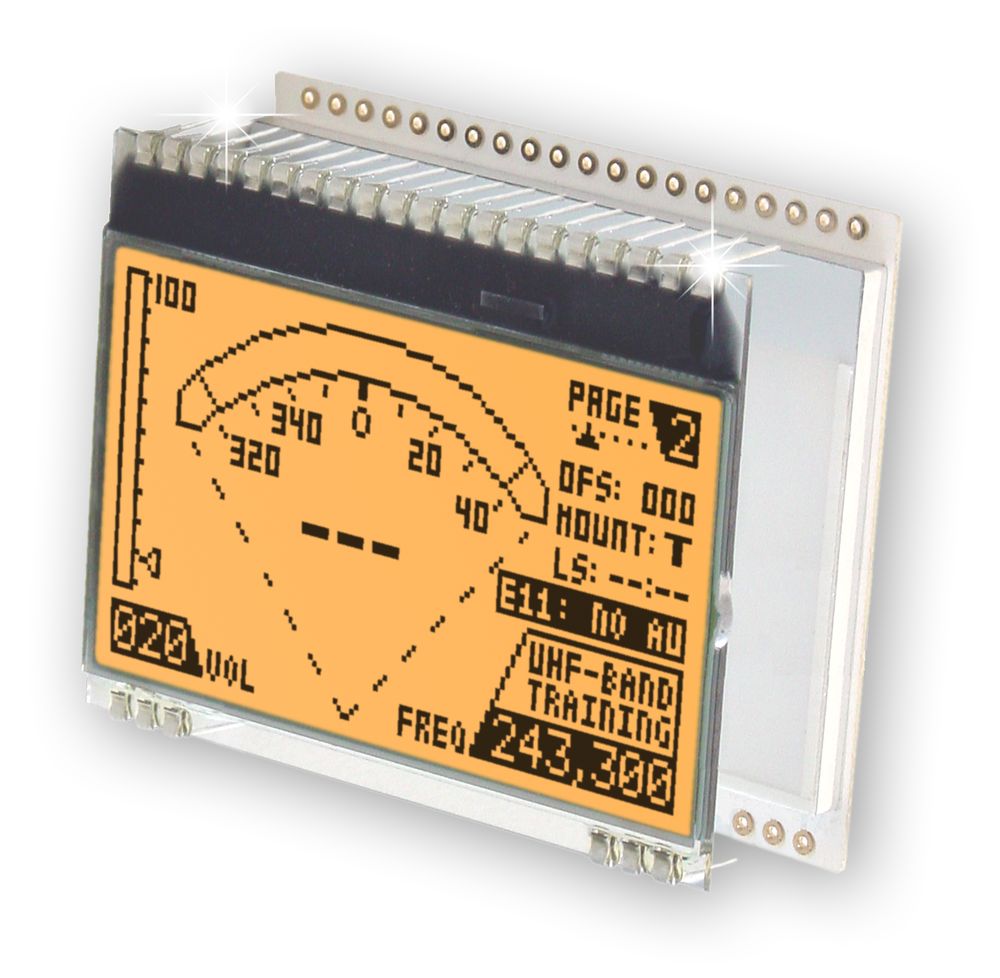

EA DOGM128-6
|
128x64
|
55x46x2
|
|
LED
|
yes
|
built in
|
DOGM128-6
|
|
|
EA DOGL128-6
|
128x64
|
68x51x3
|
|
LED
|
yes
|
built in
|
DOGL128-6
|
|
|
EA P320X-35ALW
|
320x3x240
TFT colour
|
77x64x3.3
|
|
integr.
HX8218/8615
|
LED
|
|
+15/
-10V
|
|
|
|
EA W128-6N2LED
|
128x64
|
93x70x14
|
0099-KE
|
integr.
KS 0107/8
|
LED
|
yes
|
built in
|
W128-6N2
|
|
|

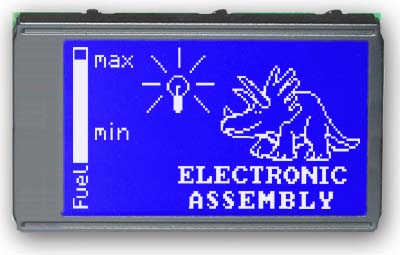

EA DIP128-6N5LW
|
128x64
|
75x46x11
|
|
LED
|
yes
|
built in
|
DIP128-6
|
|
|

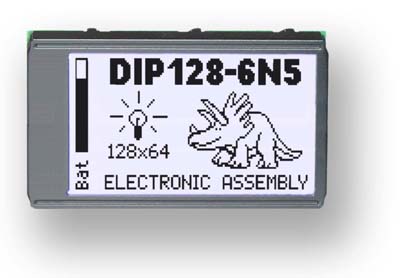

EA DIP128J-6N5LW
|
128x64
|
75x46x11
|
|
LED
|
yes
|
built in
|
|
|

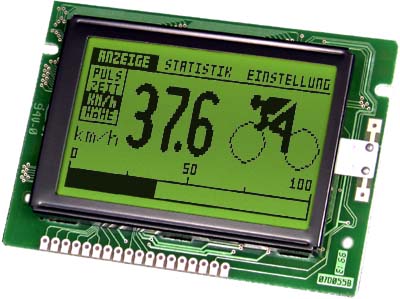

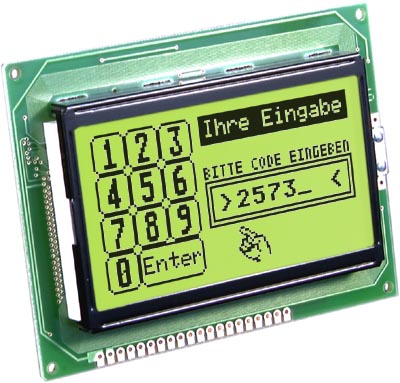

EA P128-6N3LED
|
128x64
|
84x60x11
|
|
LED
|
|
built in
|
P128-6N3
|
|
|

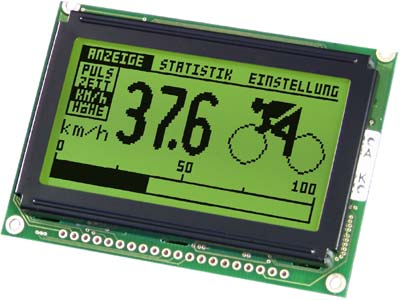

EA P128-6N7LED
|
128x64
|
75x53x9
|
017-17U
|
LED
|
|
-5V
|
P128-6N7
|
|
|

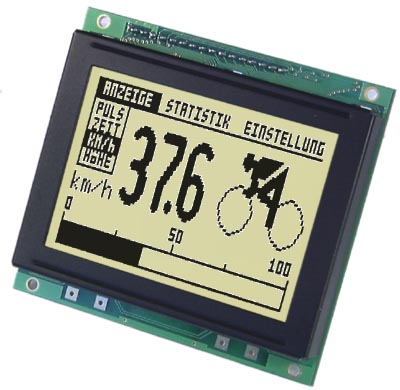

EA J128-6N6LED
|
128x64
|
78x70x10
|
|
LED
|
|
-10V
|
J128-6
|
|
|

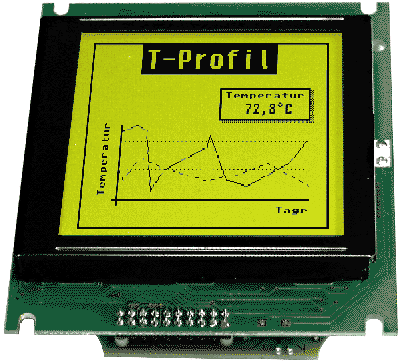

EA P128-7KLED
|
128x128
|
85x100x14
|
|
T 6963C onboard
|
LED
|
|
-15V
|
P128-7K
|
|
|
EA DOGXL160-7
|
160x104
|
78x64x6
|
|
integr. UC1701
|
LED
|
yes
|
built in
|
DOGXL160-7
|
|
|

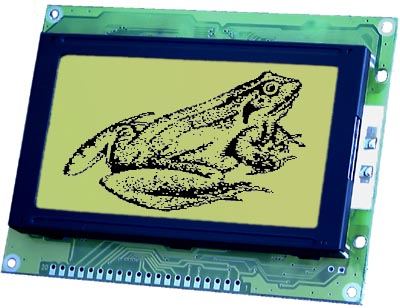

EA C160-6NLED
|
160x80
|
93x70x14
|
0099-KE
|
LC7981
onboard
|
LED
|
yes
|
built in
|
C160-6
|
|
|
EA W160B-6NLW
|
160x80
|
93x70x14
|
0099-KE
|
LED
|
yes
|
built in
|
W160-6
|
|
|
EA P480X-43BLW
|
480x3x272
TFT Color
|
106x67x4
|
|
|
LED
|
ja
|
built in
|
P480X-43
|
|
|
EA W160-7KHLW
|
160x128
|
140x102x19
|
017-18U
|
T 6963C
onboard
|
LED
|
yes
|
built in
|
W160-7
|
|
|
EA W160-7KHC
|
160x128
|
140x102x19
|
017-18U
|
CFL
|
yes
|
built in
|
|
|
EA DIP180B-5NLW
|
180x32
|
102x27x11
|
|
SED 1520
|
LED
|
|
-3V
|
DIP180
|
|
|
EA eDIP240B-7
|
240x128
|
113x70x11
|
0FP241-7
|
Intelligent !
|
LED
|
ja
|
integr
|
eDIP240-7
|
|
|
EA W240-6K2HLW
|
240x64
|
180x65x15
|
017-10U
|
T 6963C
onboard
|
LED
|
yes
|
built in
|
W240-6
|
|
|
EA P240-6K2C
|
240x 64
|
187x65x14
|
017-10U
|
CFL
|
yes
|
built in
|
P240-6
|
|
|

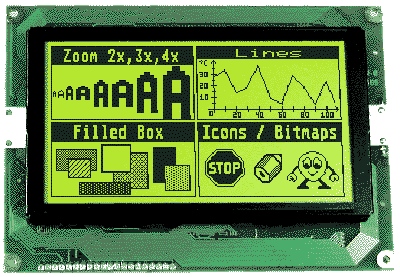

EA DIP240B-7KLW
|
240x128
|
113x70x11
|
|
LED
|
yes
|
built in
|
DIP240-7
|
|
|

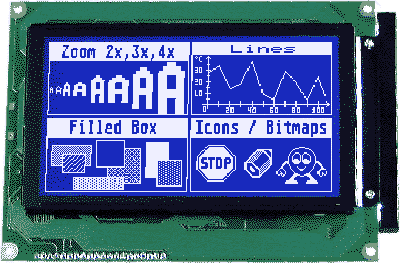

EA W240-7K2C
|
240x128
|
170x105x14
|
|
CFL
|
|
built in
|
W240-7K2
|
|
|
EA W240-7KHLEDB
|
240x128
|
144x104x14
|
0FP240-7
|
LED
|
yes
|
built in
|
W240-7
|
|
|
EA W240-7KHC
|
240x128
|
152x104x14
|
0FP240-7
|
CFL
|
yes
|
built in
|
|
|
EA eDIP320B-8
|
320x240
|
138x105x10
|
0FP321-8
|
Intelligent !
|
LED
|
ja
|
integr.
|
eDIP320-8
|
|
|
EA W320W-8K3LW
|
320x240
|
156x120x21
|
0FP320-8
|
S1D13700
onboard
|
LED
|
yes
|
built in
|
W320-8K3
|
|
|

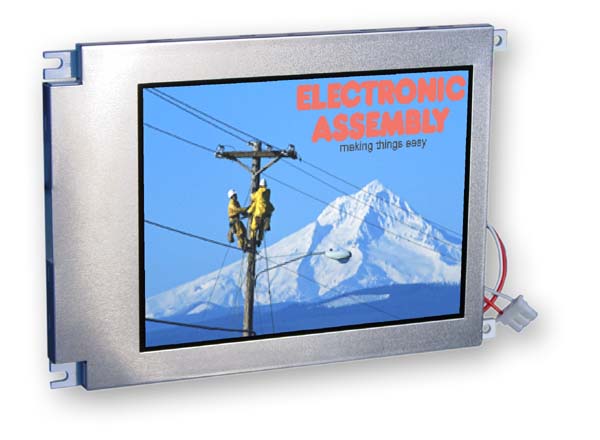

EA P320X-35ALW
|
320x3x240
TFT colour
|
160x111x9
|
|
integr.
HX8218/8615
|
LED
|
|
built in
|
P320X-57A
|
|
|

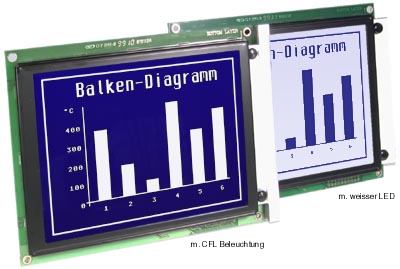

EA W320F-8C
|
320x240x3
STN colour
|
154x115x9
|
0FP320F-8
|
|
CFL
|
yes
|
+26V
|
W320F-8
|
|
onboard = controller with 8-bit bus interface already integrated in the module
built in Vee = +5V supply voltage only, no negative voltage required

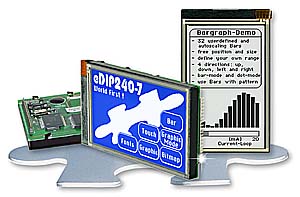

Intelligent Displays with RS-232, SPI and I²C
Built-in character sets, graphic functions, adjustable backlight, full touch panel support; these are world-wide unique features. No more working with pixel, but using more than 112 powerful
graphic functions. With integrated FLASH for more fonts, pictures and macros. Last but not least there is a cost-free simulator software for the EA eDIP240-7 and a starter kit with USB. Read more
about this fine displays on our page eDIP.
Graphics kits with a touch panel/keyboard input, RS-232
ELECTRONIC ASSEMBLY offers a wide variety of graphics displays with a serial interface, integrated graphics functions and an optional touch panel.
They are highly complex and thus ideal for rapid and uncomplicated design. The developer has immediate access to a wide variety of fonts and graphics functions.
You will find more information on our rs232 page.
Graphics units with RS-232
LCD graphics units are intelligent graphics displays with an RS-232 serial interface.
With two or three integrated character sets and a wide range of graphics functions, they permit the use of the latest LCD graphics displays, thus saving time and costs. Apart from a supply
voltage of +5V and RS-232 data, no further signals are required. No additional software or drivers are required for their operation.
All the graphics routines are integrated in the display's in-built high-level graphics controller. This permits the creation of a clear and attractive display using only a few commands.
You will find more information on our rs232 page.
Accessories
-
Character sets for graphics LCDs
The SED1520 and HD61202 graphics controllers do not have their own character set, so this has to be made available externally. ELECTRONIC ASSEMBLY
therefore offers a FontEditor EA USBSTICK-FONT for Windows plus different character sets from 4x6 (micro) to
16x32 pixels. There are also two Cyrillic character sets (6x8 and 8x16 and al lot more can be digitalized) on this USB
stick. All the character sets can be edited and modified.
The export function generates a C- and Basic source code as an include file to your software.
Also included is a converter software for *.bmp files. Here's the data sheet.
-
Bezels
Bezels with an anti-glare screen are available for some graphics displays. The bezels are simply inserted into the opening in the front panel. This gives your unit a
professional look, and at the same time the anti-glare screen prevents the integrated display from being touched or getting dirty. The anti-glare screen makes the display considerably easier to
read. Please refer to the table above for the order numbers of the various bezels. You will find more information on bezels in our data sheet, which is available in PDF format.
-
High-level graphics controllers
The programming of graphics displays is
considerably more complex than that of dot-matrix displays, which explains why there are controller ICs, which already contain character sets and a wide range of graphics functions. This saves
time and costs in development. They are controlled via RS-232.
You will find more information on our rs232 page.
Graphic Displays
Last update: June, 17th. 2010
|
|
